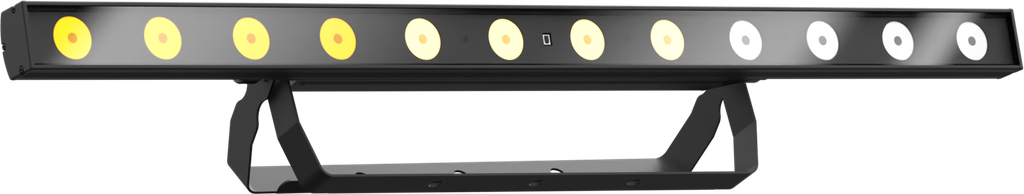

LumiPix 12UQ is a 1 m linear colour changer equipped with 12 high-efficiency RGBW/FC LEDs (8W each). The control system is customisable allowing section control and advanced possibilities in effect generation such as LED video or sound activated arrays.
LumiPix 12UQ is a 1 m linear colour changer equipped with 12 high-efficiency RGBW/FC LEDs (8W each). The control system is customisable allowing section control and advanced possibilities in effect generation such as LED video or sound activated arrays.
Features:Pixel control: section control
Advanced on-board effects generation
USB port for USB WIFI transceiver (optional)
Flicker-free operations
LIGHT SOURCE
- Source:12x8WRGBW LEDs
- Luminous flux:2'224
- Lux:1'813lx@3 m full
- Source life expectancy:> 50.000 h
OPTICS
- Beam angle:19°
- Field angle:36°
- Lens diameter:38mm
- Additional optics:45° (optional)
COLOUR SYSTEM
- Colour mixing:RGBW / FC
- Colour wheel:virtual colour wheel with macros
- Macros:several pre-built pixel macros with adjustable speed
DYNAMIC EFFECTS
- Static mode:selection of static colour
- Manual mode:manual adjustment of colour
- Auto mode:built-in programs with execution speed adjustment
- Sound mode:music activation through internal microphone and sensitivity control
CONTROL
- Supported Protocols:DMX512
- DMX channels:4 / 7 / 9 / 12 / 17ch
- Pixel control:1 / 3section control
- Display:LED display user interface
- IR:infrared sensor controlled by remote
- Master/Slave:for synchronised operation of more units linked in a chain
ELECTRONICS
- Dimmer:linear 0 - 100% electronic dimmer
- Dimmer curves:4selectable dimming modes available
- Strobe / shutter:1 - 28Hz, electronic
- Firmware upgrade:via DMX with UPBOXPRO/UPBOX1 (not included)
CONNECTIONS
- Power connection:Seetronic powerCON IN/OUT connectors
- Signal connection:XLR 3p IN/OUT connectors
- Wireless Connection:optional WIBOX, WDBOX proprietary protocol
- Data:USB port for USB WIFI transmitter (optional)
ELECTRICAL
- Mains power supply:100-240V - 50/60Hz
- Max power consumption (230V):71W
- Output (at 230V):19units on a single power line
- Max power consumption (120V):73,6W
- Output (at 120V):7
PHYSICAL
- IP rating:IP20
- Cooling:fan-free with natural convection
- Housing:Sturdy die-cast aluminium body
- Finish:black
- Operating temperature:Ta0 to +45 °C (+32 to +113 °F)
- Dimensions (WxHxD):1000x56x168mm
- Weight:3,3kg
INSTALLATION
- Suspension and fixing:double hanging bracket suitable for safe hanging and for floor positioning
CERTIFICATIONS / REPORTS
- Compliance:CE, UKCA, RCM
