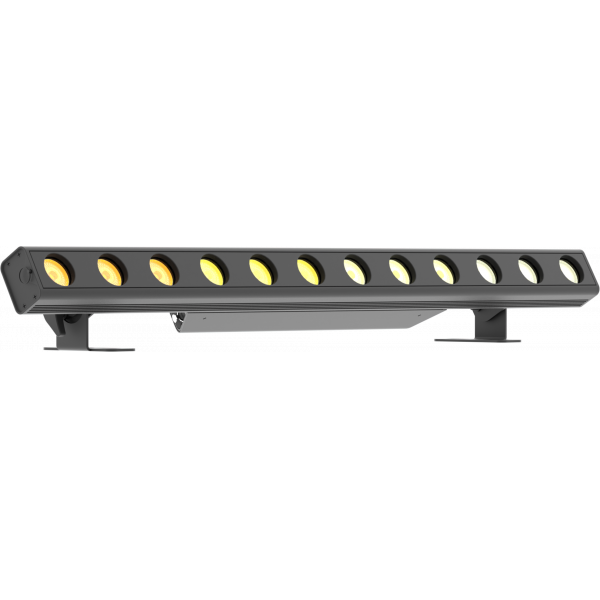

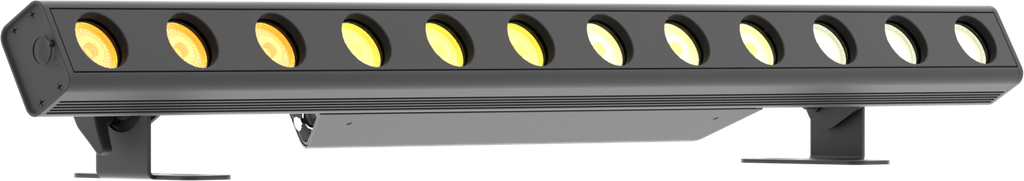

LumiPix 12QTour is a 100 cm linear LED batten designed for professional use granting unprecedented chromatic performance. The super-slim design combined with its extreme colour precision and light output make LumiPix 12QTour a highly flexible and versatile solution for any kind of application or venue such as architectural, cyclorama, wall-washer, pixel effect or blinder.

12x10W RGBW/FC high-power LED

Pixel control of every individual LED

PowerCON IN/OUT and XLR 5p IN/OUT

Features:
12x10W RGBW/FC high-power LED
Pixel control of every individual LED
PowerCON IN/OUT and XLR 5p IN/OUT

LIGHT SOURCE

Source:

12x10
W

RGBW LEDs
Luminous flux:

(15°) 3'657 lm - (45°) 3'630

@Full
Lux:

(15°) 2'901
lx

@5 m full
Lux:

(45°) 325
lx

@5 m full
Source life expectancy:

> 50.000 h

OPTICS

Beam angle:

22,6
°
Field angle:

39
°
Lens diameter:

45
mm
Additional optics:

15° (opt) - 45° (opt)
Other:

on board magnetic frost holder

COLOUR SYSTEM

Colour mixing:

RGBW / FC
Colour wheel:

virtual colour wheel with macros
Macros:

several pre-built pixel macros with adjustable speed

DYNAMIC EFFECTS

Pixel patterns:

pre-programmed static and dynamic patterns
Static mode:

selection of static colour
Manual mode:

manual adjustment of colour
Auto mode:

built-in programs with execution speed adjustment

CONTROL

Supported Protocols:

DMX512
DMX channels:

5 / 7 / 9 / 49
ch
Pixel control:

pixel2pixel control
Display:

Graphic User Interface
Master/Slave:

for synchronised operation of more units linked in a chain

ELECTRONICS

Dimmer:

linear 0 - 100% electronic dimmer
Dimmer curves:

7

selectable dimming modes available
Strobe / shutter:

1 - 30

Hz, electronic
Firmware upgrade:

via DMX with UPBOXPRO/UPBOX1 (not included)

CONNECTIONS

Power connection:

Seetronic powerCON IN/OUT connectors
Signal connection:

Amphenol XLR 5p IN/OUT connectors

ELECTRICAL

Mains power supply:

100-240V - 50/60Hz
Max power consumption (230V):

100
W
Output (at 230V):

30

units on a single power line
Max power consumption (120V):

105
W
Output (at 120V):

14

units on a single power line
Power factor:

0,94

PHYSICAL

IP rating:

IP30
Cooling:

fan-free with natural convection
Housing:

Sturdy die-cast aluminium body
Finish:

black
Operating temperature:

Ta

-10 to +45 °C (+14 to +113 °F)
Dimensions (WxHxD):

994x138x70
mm
Weight:

5,4
kg

INSTALLATION

Suspension and fixing:

double hanging bracket suitable for safe hanging and for floor positioning
Hardware on-board:

sockets for quick-Lock Omega bracket (clamp not included)
