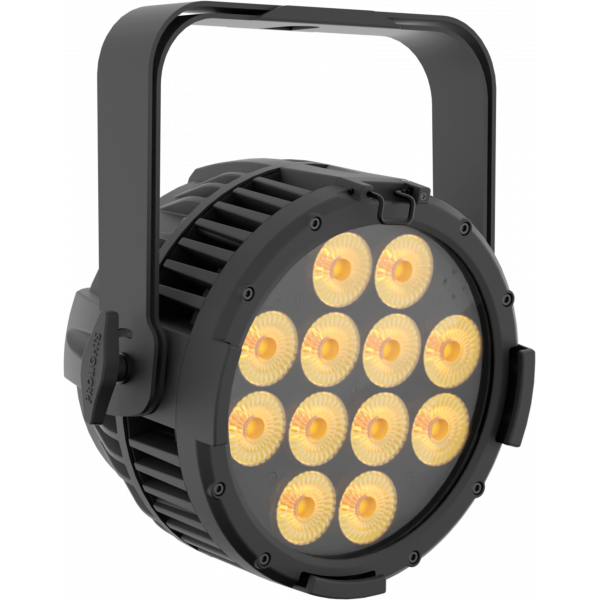

LumiPar 12IP is a bright and flexible IP LED PAR made for concerts, theatres and to perform as an architectural accent light for outdoor events. The housing in die-cast aluminium is designed to feature both as a robust workhorse and being totally fan-free allows for total silence during operation.
LumiPar 12IP is a bright and flexible IP LED PAR made for concerts, theatres and to perform as an architectural accent light for outdoor events. The housing in die-cast aluminium is designed to feature both as a robust workhorse and being totally fan-free allows for total silence during operation.
Features:IP65 die-cast aluminium housing
12x9W RGBW LED PAR
Fan-free and flicker-free
Filter frame included
LIGHT SOURCE
- Source:12x9WRGBW LEDs
- Luminous flux:(25°) 3'900 lm - (45°) 6'700
- Lux:(25°) 2'535lx@3 m full
- Lux:(45°) 1'154lx@3 m full
- Source life expectancy:> 50.000 h
OPTICS
- Beam angle:available in 25° or 45°
- Field angle:36° or 60°
COLOUR SYSTEM
- Colour mixing:RGBW / FC
- White presets:3.000 K ~ 10.000K
- Colour wheel:virtual colour wheel with macros
- Macros:built-in white presets
DYNAMIC EFFECTS
- Static mode:selection of static colour
- Manual mode:manual adjustment of colour
- Auto mode:built-in programs with execution speed adjustment
CONTROL
- Supported Protocols:DMX512
- DMX channels:4 / 6 / 11ch
- Display:black OLED touch display
- Master/Slave:for synchronised operation of more units linked in a chain
ELECTRONICS
- Dimmer:linear 0 - 100% electronic dimmer
- Dimmer curves:4selectable dimming modes available
- Strobe / shutter:0 - 30Hz, electronic
- Display battery:included, self-charging battery backup
- Selectable PWM:600 to 25000 Hz (selectable steps)
- Firmware upgrade:via DMX with UPBOXPRO/UPBOX1 (not included)
CONNECTIONS
- Power connection:Seetronic powerCON TRUE IP65 IN/OUT
- Signal connection:Seetronic XLR 5p IN/OUT connectors
ELECTRICAL
- Mains power supply:100-240V - 50/60Hz
- Max power consumption (230V):110W
- Output (at 230V):33units on a single power line
- Max power consumption (120V):110W
- Output (at 120V):18units on a single power line
PHYSICAL
- IP rating:IP65 for temporary outdoor use
- IK rating:IK07 impact rating
- Cooling:fan-free with natural convection
- Housing:Sturdy die-cast aluminium body
- Finish:black
- Operating temperature:Ta-20 to +45 °C (-4 to +113 °F)
- Dimensions (WxHxD):305x326x177mm
- Weight:6,2kg
INSTALLATION
- Suspension and fixing:double hanging bracket suitable for safe hanging and for floor positioning
CERTIFICATIONS / REPORTS
- Compliance:CE, UKCA, RCM
