Product Description

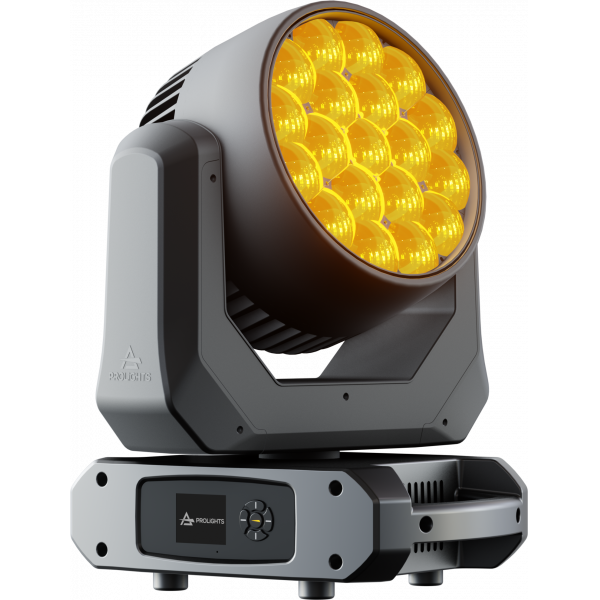

The Jet Wash19 is a compact and fast LED moving wash light with motorized zoom control.
The 20W Osram RGBW LED source provides plenty of output and combined with a highly efficient optical system capable of zooming from 4° to 52°, this unit can easily work as beam or wash light.
The Jet Wash19's colour mixing system features precise and advanced control with superior white and saturated tones, and a clean and intuitive user interface similar to the other series.
The Jet Wash19 is a compact and fast LED moving wash light with motorized zoom control.
The 20W Osram RGBW LED source provides plenty of output and combined with a highly efficient optical system capable of zooming from 4° to 52°, this unit can easily work as beam or wash light.
The Jet Wash19's colour mixing system features precise and advanced control with superior white and saturated tones, and a clean and intuitive user interface similar to the other series.
Features:Compact form factor and fast movements
Zoom from 4° to 52° with high optical efficiency
Precise white CCT and colour mixing
- Source:19x20WRGBW Osram Ostar LEDs
- Luminous flux:(4°) 3'019 lm - (52°) 5'337@Full
- Lux:Calibration ON: (4°) 23'781 lx - (52°) 682lx@5 m full
- Lux:Calibration OFF: (4°) 28'000 lx - (52°) 788lx@5 m full
- Source life expectancy:> 50.000 hrs (L70B10 @Ta 25° C / 77° F)
- Zoom range:4° - 52°motorised linear zoom
- Lens type:honeycomb gapless plano-convex optics
- Colour mixing:RGBW / FC
- CCT:CCT control, + / - green correction, tungsten emulation
- White presets:2.800 K ~ 10.000K
- Colour wheel:virtual colour wheel with macros
- Control Resolution:16-bit dimmer control
- Special features:linear crossfade channel from any white to any colour; virtual CTO on colours
- Supported Protocols:DMX512, RDM
- DMX channels:23ch
- RDM:for remote addressing and parameter configuration
- Display:LCD high resolution colour display with autoflip
- Pan:540°- 16-bit resolution
- Tilt:233°- 16-bit resolution
- Position feedback:automatic repositioning after external movement
- Pan / tilt lock:for transport and maintenance
- Dimmer:linear 0 - 100% electronic dimmer
- Dimmer curves:4selectable dimming modes available
- Strobe / shutter:1 - 30Hz, electronic
- Selectable PWM:600 to 25000 Hz (selectable steps)
- Firmware upgrade:via DMX with UPBOXPRO/UPBOX2 (not included)
- Power connection:Neutrik powerCON TRUE1 IN/OUT connectors
- Signal connection:Amphenol XLR 5p IN/OUT connectors
- Mains power supply:100-240V - 50/60Hz
- Max power consumption (230V):350W
- Output (at 230V):7units on a single power line
- Standby power:24 W
- Power factor:> 0,96
- IP rating:IP20
- Cooling:filtered forced-air with low-noise fan
- Housing:Aluminium structure with high-resistance polycarbonate cover
- Finish:black (RAL 9004) or white (RAL 9010)
- Operating temperature:Ta-10 to +45 °C (+14 to +113 °F)
- Dimensions (WxHxD):396x487x250mm
- Weight:14,7kg
- Suspension and fixing:any position with quick-lock omega brackets
- Hardware on-board:sockets for quick-Lock Omega bracket (clamp not included)
- Compliance:CE, UKCA, RCM
