Product Description

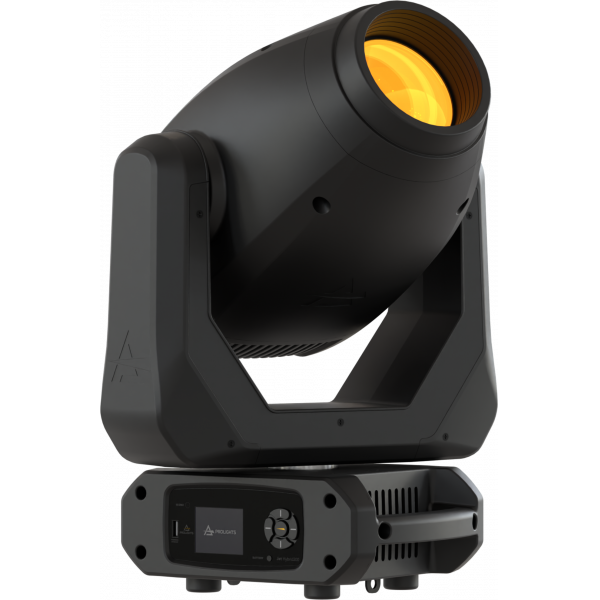

Jet Hyb200 is a budget-friendly, hybrid beam-spot moving light, offering high-quality and powerful output in a compact design.
Tailored for both mid-air effects and image projections, it boasts an impressive 8,000-lumen output from a 200W LED source. Its fast zoom ranges from 3.5° to 40°, making it an excellent replacement to compact discharge hybrid fixtures.
The Jet Hyb200's dynamic effects suite includes a color wheel with 13 dichroic filters, two gobo wheels featuring 8 rotating and 17 static gobos, along with prism and frost capabilities for diverse creative needs.
Jet Hyb200 is a budget-friendly, hybrid beam-spot moving light, offering high-quality and powerful output in a compact design.
Tailored for both mid-air effects and image projections, it boasts an impressive 8,000-lumen output from a 200W LED source. Its fast zoom ranges from 3.5° to 40°, making it an excellent replacement to compact discharge hybrid fixtures.
The Jet Hyb200's dynamic effects suite includes a color wheel with 13 dichroic filters, two gobo wheels featuring 8 rotating and 17 static gobos, along with prism and frost capabilities for diverse creative needs.
Features:Beam-Spot hybrid moving light with 200W LED source
Linear zoom ranging from 3.5° to 40°
15 kg
- Source:200Whigh-power white LED
- Source CCT:7.000K
- Luminous flux:(3,5°) 5'962 lm - (40°) 7'593
- Lux:(3,5°) 69'503 lx - (40°) 1'461lx@5 m full
- CRI:> 70 (CCT 6000K and CRI > 84 with filter on color wheel)
- Source life expectancy:> 50.000 hrs (L70B10 @Ta 25° C / 77° F)
- Zoom range:3,5° - 40°motorised linear zoom
- Lens diameter:100mm
- Lens type:HD anti-reflection lenses with achromatic coating
- Focus:motorised 16-bit
- CCT:on wheel 3.200 K
- Colour wheel:High CRI+10colour filters
- Control Resolution:16-bit dimmer control
- Circular prism:5-fwith bi-directional rotation, indexing
- Frost:linear 0-100% light interchangeable
- Rotating gobos:8rotating gobos + open, interchangeable, indexing
- Gobo size:outer: 13,9 mm - image: 11 mm - thickness: up to 3 mm
- Fixed gobos:17fixed gobos + open
- Supported Protocols:DMX512, RDM
- DMX channels:20ch
- RDM:for remote addressing and parameter configuration
- Display:LCD high resolution colour display with autoflip
- Pan:540°- 16-bit resolution
- Tilt:260°- 16-bit resolution
- Position feedback:automatic repositioning after external movement
- Pan / tilt lock:for transport and maintenance
- Dimmer:linear 0 - 100% electronic dimmer
- Dimmer curves:4selectable dimming modes available
- Strobe / shutter:1 - 30Hz, electronic
- Display battery:included, self-charging battery backup
- Selectable PWM:600 to 50000 Hz (selectable steps)
- Firmware upgrade:via DMX with UPBOXPRO/UPBOX2 (not included) or via USB pen drive
- Power connection:Seetronic powerCON TRUE IP65 IN/OUT
- Signal connection:Neutrik IP XLR 5p IN/OUT connectors
- Mains power supply:100-240V - 50/60Hz (max absolutes range: 90-264V - 50/60Hz)
- Max power consumption (230V):276W
- Output (at 230V):9units on a single power line
- Standby power:56W
- Power factor:> 0,94
- IP rating:IP20
- Cooling:heat pipe with low-noise fan
- Housing:Aluminium structure with high-resistance polycarbonate cover
- Finish:black (RAL 9004)
- Operating temperature:Ta-10 to +45 °C (+14 to +113 °F)
- Dimensions (WxHxD):356x538x205mm
- Weight:15kg
- Suspension and fixing:any position with quick-lock omega brackets
- Hardware on-board:sockets for quick-Lock Omega bracket (clamp not included)
- Compliance:CE, RCM, FCC, cTUVus
