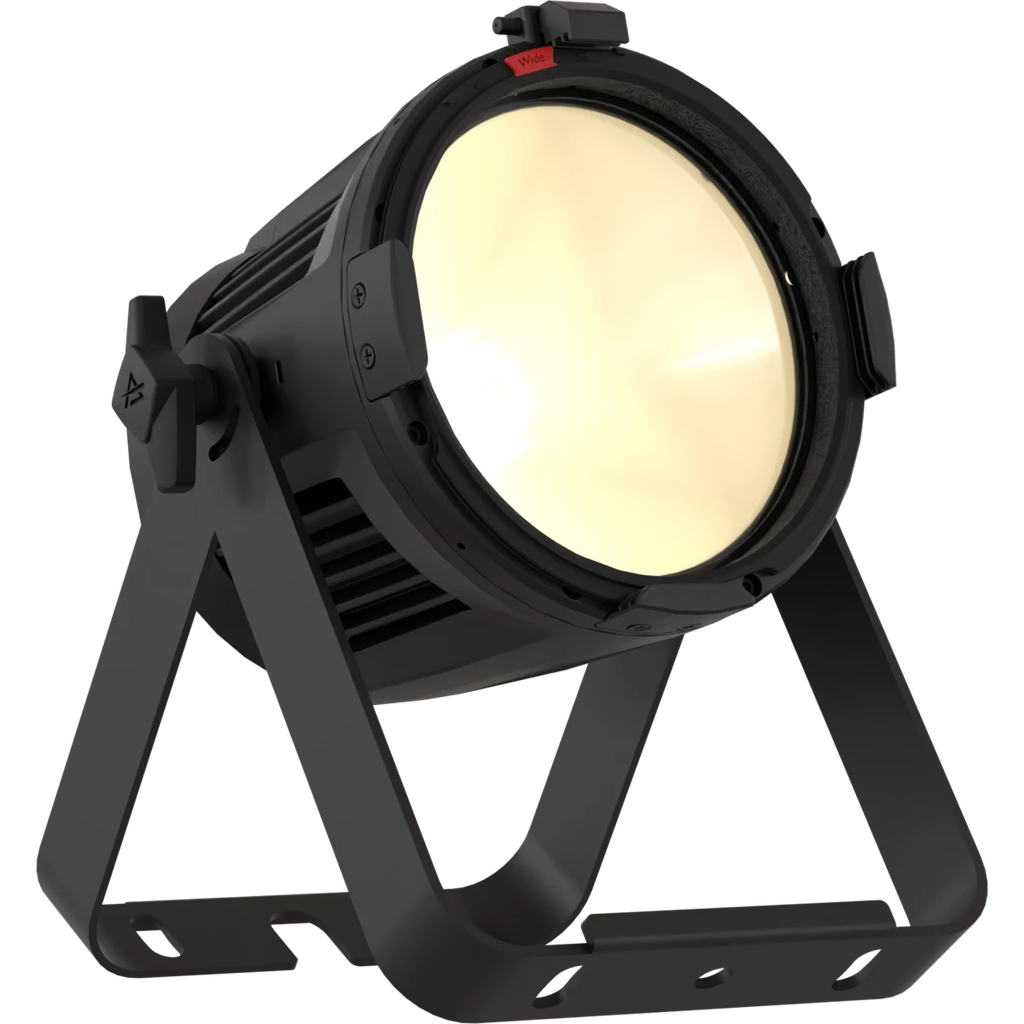

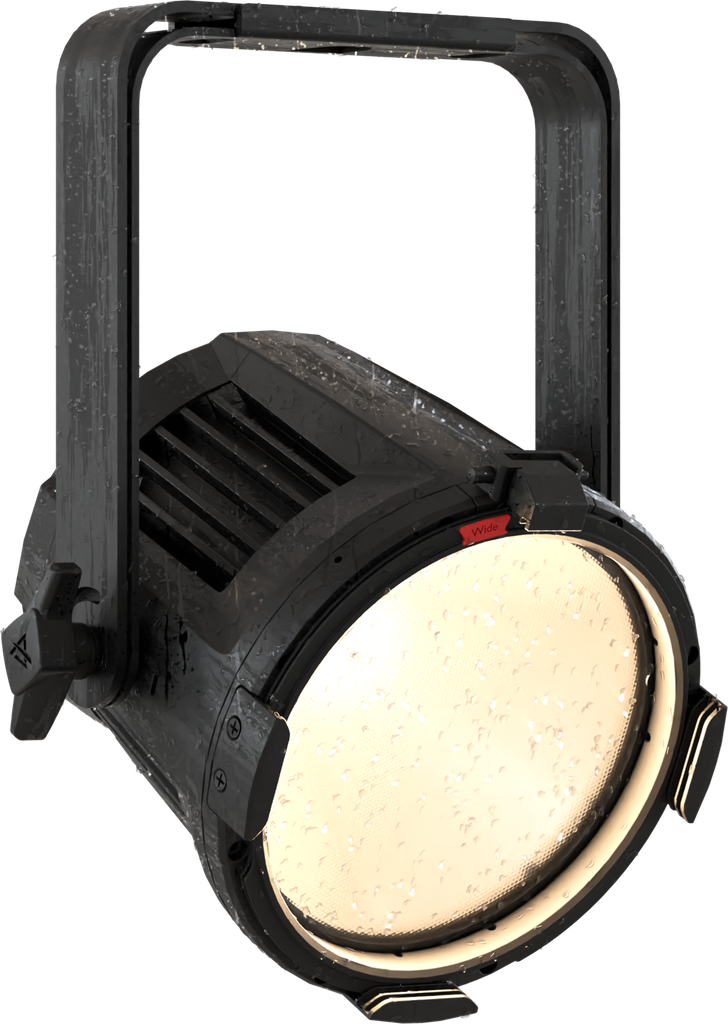

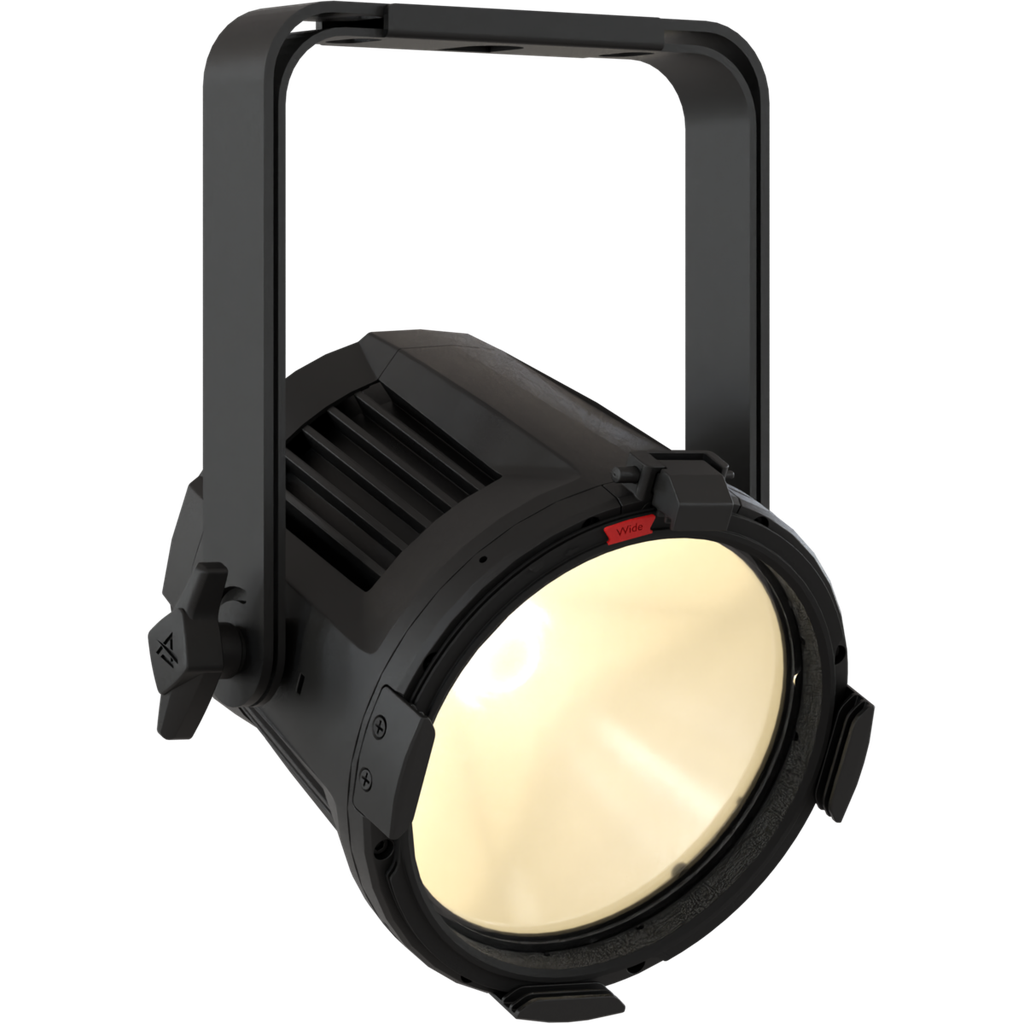

EclPar IPMVW is a flexible IP rated single source LED spotlight, featuring an 100W Variable White light source with high efficiency and advanced colour control.
Its LED source delivers a high-quality white reproduction with high CRI and TM30 with an advanced control over colours, ensuring consistency across fixtures.
The unit is compact and completely fan free, making the EclPar IPMVW a workhorse for any outdoor and dusty environment, but as well as for corporate and studio whereas silent operations are required.
The flexible optical system allow a wide selection of lenses from narrow 15° (on board), flood 30°, and ultra wide 60°, which can be quickly mounted in front of the luminaire or inside the front tempered glass for lasting exterior installation.
EclPar IPMVW is a flexible IP rated single source LED spotlight, featuring an 100W Variable White light source with high efficiency and advanced colour control.
Its LED source delivers a high-quality white reproduction with high CRI and TM30 with an advanced control over colours, ensuring consistency across fixtures.
The unit is compact and completely fan free, making the EclPar IPMVW a workhorse for any outdoor and dusty environment, but as well as for corporate and studio whereas silent operations are required.
The flexible optical system allow a wide selection of lenses from narrow 15° (on board), flood 30°, and ultra wide 60°, which can be quickly mounted in front of the luminaire or inside the front tempered glass for lasting exterior installation.
Features:100W Variable White LED delivering high CRI, TLCI, TM30 values
Flex lens system: 15° on-board - 30° and 60° optional
IP65 for exterior application, fan free
- Source:100WVariable White LED
- Luminous flux:(15°) 4'571 lm; (30°) 4'329 lm; (60°) 4'414@Full
- Lux:(15°) 3'072 lx; (30°) 451 lx; (60°) 163lx@5 m full
- CRI:97,6 @full; 97,1 @2'700K; 96,4 @6'500K
- R9:95 @full; 83,7 @2'700K; 94,1 @6'500K
- TLCI:99 @full; 97 @2'700K; 98 @6'500K
- TM30 Rf:93,3 @full; 93,7 @2'700K; 91,5 @6'500K
- TM30 Rg:100,5 @full; 97,1 @2'700K; 98,1 @6'500K
- Source life expectancy:> 50.000 h
- Beam angle:(on-board) 15° - (opt) 30°, 60°
- Field angle:(on-board) 24°
- Lens diameter:172mm
- Lens type:parabolic reflector in combination with HD fresnel lens
- Additional optics:(opt) 30°, 60°
- Other:possible to mount lens both on the internal side and on the external side
- Colour mixing:tunable white
- CCT:CCT control through dedicated DMX channel
- White presets:2.700 K ~ 6.500K
- Macros:built-in white presets
- Static mode:selection of static dimmer and color temperature
- Manual mode:manual adjustment of colour
- Auto mode:built-in programs with execution speed adjustment
- Supported Protocols:DMX512, RDM, CRMX (optional)
- DMX channels:1 / 2 / 4 / 5 / 9 / 11ch
- RDM:for remote addressing and parameter configuration
- Display:Graphic User Interface
- Master/Slave:for synchronised operation of more units linked in a chain
- Dimmer:linear 0 - 100% electronic dimmer
- Dimmer curves:4selectable dimming modes available
- Strobe / shutter:1 - 30Hz, electronic
- Selectable PWM:600 to 40000 Hz (selectable steps)
- Firmware upgrade:via DMX with UPBOXPRO/UPBOX1 (not included)
- Power connection:Seetronic powerCON TRUE IP65 IN/OUT
- Signal connection:Seetronic XLR 5p IN/OUT connectors
- Wireless Connection:optional LumenRadio TiMo FX RDM - CRMX and W-DMX compatible
- Mains power supply:100-240V - 50/60Hz
- Max power consumption (230V):117W
- Output (at 230V):12units on a single power line
- Power factor:> 0,93
- IP rating:IP65 for temporary outdoor use
- Cooling:fan-free with natural convection
- Housing:Sturdy die-cast aluminium body
- Finish:black
- Operating temperature:Ta-20 to +45 °C (-4 to +113 °F)
- Dimensions (WxHxD):262x327x213mm
- Weight:4,1kg
- Suspension and fixing:double hanging bracket suitable for safe hanging and for floor positioning
- Other:Front mount holder for accessories as barn door, filter frame
- Compliance:CE, UKCA, RCM, cTUVus, FCC
- NOTE:Suitable for permanent outdoor use, provided installation and maintenance cycles by qualified technicians are carried.
