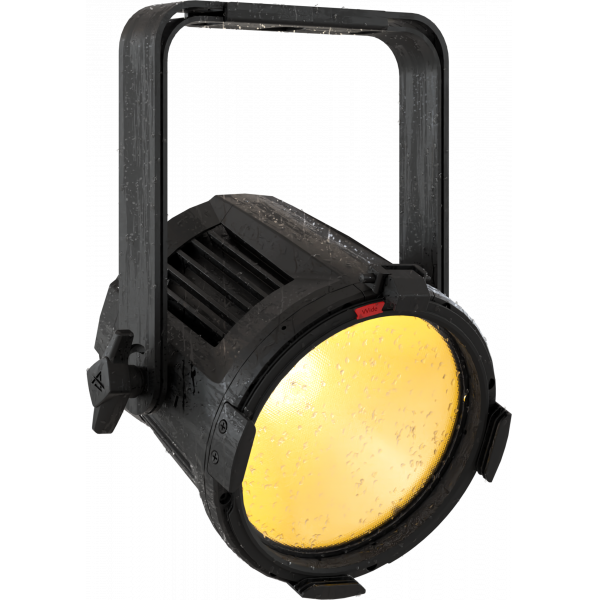

Prolights ECLPARIPMFCBK

100W IP65 RGB+WW single source LED PAR, 15°, black

0.00 AED 0.00 AED

View on Manufacturer Website

Product Description

EclPar IPMFC is a flexible IP rated single source LED spotlight, featuring an 100W RGB+WarmWhite light source with high efficiency and advanced colour control.

Its Spektra calibrated LED source delivers a high-quality white reproduction with high CRI and TM30 with an advanced control over colours, ensuring consistency across fixtures.

The unit is compact and completely fan free, making the EclPar IPMFC a workhorse for any outdoor and dusty environment, corporate events or studios where silent operations are required.

The flexible optical system allow a wide selection of lenses from narrow 15° (on board), flood 30°, and ultra wide 60°, which can be quickly mounted in front of the luminaire or inside the front tempered glass for lasting exterior installation.

  • 100W Spektra calibrated RGB + Warm White LED delivering high CRI, TLCI, TM30 values
  • Flex lens system: 15° on-board - 30° and 60° optional
  • IP65 for exterior application, fan free

    • EclPar IPMFC is a flexible IP rated single source LED spotlight, featuring an 100W RGB+WarmWhite light source with high efficiency and advanced colour control.

    Its Spektra calibrated LED source delivers a high-quality white reproduction with high CRI and TM30 with an advanced control over colours, ensuring consistency across fixtures.

    The unit is compact and completely fan free, making the EclPar IPMFC a workhorse for any outdoor and dusty environment, corporate events or studios where silent operations are required.

    The flexible optical system allow a wide selection of lenses from narrow 15° (on board), flood 30°, and ultra wide 60°, which can be quickly mounted in front of the luminaire or inside the front tempered glass for lasting exterior installation.

    Features:
    100W Spektra calibrated RGB + Warm White LED delivering high CRI, TLCI, TM30 values
    Flex lens system: 15° on-board - 30° and 60° optional
    IP65 for exterior application, fan free

    LIGHT SOURCE
    • Source:
      100
      W
      RGB+WW LED array
    • Luminous flux:
      (15°) 3'324 lm; (30°) 3'348 lm; (60°) 3'462
      @Full
    • Lux:
      (15°) 1'772 lx; (30°) 332 lx; (60°) 155
      lx
      @5 m full
    • CRI:
      93,7 @3'200K; 91,1 @5'600K
    • R9:
      89 @3'200K; 88 @5'600K
    • TLCI:
      77 @3'200K; 86 @5'600K
    • TM30 Rf:
      90 @3'200K; 89 @5'600K
    • TM30 Rg:
      109 @3'200K; 108 @5'600K
    • Source life expectancy:
      > 50.000 h
    OPTICS
    • Beam angle:
      (on-board) 15° - (opt) 30°, 60
      °
    • Field angle:
      (on-board) 26
      °
    • Lens diameter:
      172
      mm
    • Lens type:
      parabolic reflector in combination with HD fresnel lens
    • Additional optics:
      (opt) 30°, 60°
    • Other:
      possible to mount lens both on the internal side and on the external side
    COLOUR SYSTEM
    • Colour mixing:
      RGB + Warm White
    • CCT:
      CCT control, + / - green correction, tungsten emulation
    • White presets:
      2.700 K ~ 10.000
      K
    • Macros:
      Gels library on-board
    DYNAMIC EFFECTS
    • Static mode:
      selection of static dimmer, colors and color temperature
    • Manual mode:
      manual adjustment of colour
    • Auto mode:
      built-in programs with execution speed adjustment
    • Special features:
      linear crossfade channel from any white to any colour; virtual CTO on colours
    CONTROL
    • Supported Protocols:
      DMX512, RDM, CRMX (optional)
    • DMX channels:
      1 / 2 / 5 / 9 / 10 / 12 / 18
      ch
    • RDM:
      for remote addressing and parameter configuration
    • Display:
      Graphic User Interface
    • Master/Slave:
      for synchronised operation of more units linked in a chain
    ELECTRONICS
    • Dimmer:
      linear 0 - 100% electronic dimmer
    • Dimmer curves:
      4
      selectable dimming modes available
    • Strobe / shutter:
      1 - 30
      Hz, electronic
    • Selectable PWM:
      600 to 40000 Hz (selectable steps)
    • Firmware upgrade:
      via DMX with UPBOXPRO/UPBOX1 (not included)
    CONNECTIONS
    • Power connection:
      Seetronic powerCON TRUE IP65 IN/OUT
    • Signal connection:
      Seetronic XLR 5p IN/OUT connectors
    • Wireless Connection:
      optional LumenRadio TiMo FX RDM - CRMX and W-DMX compatible
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz
    • Max power consumption (230V):
      120
      W
    • Output (at 230V):
      12
      units on a single power line
    • Power factor:
      > 0,94
    PHYSICAL
    • IP rating:
      IP65 for temporary outdoor use
    • Cooling:
      fan-free with natural convection
    • Housing:
      Sturdy die-cast aluminium body
    • Finish:
      black
    • Operating temperature:
      Ta
      -20 to +45 °C (-4 to +113 °F)
    • Dimensions (WxHxD):
      262x327x213
      mm
    • Weight:
      4,1
      kg
    INSTALLATION
    • Suspension and fixing:
      double hanging bracket suitable for safe hanging and for floor positioning
    • Other:
      Front mount holder for accessories as barn door, filter frame
    CERTIFICATIONS / REPORTS
    • Compliance:
      CE, UKCA, RCM, cTUVus, FCC
    (*)
    • NOTE:
      Suitable for permanent outdoor use, provided installation and maintenance cycles by qualified technicians are carried.
