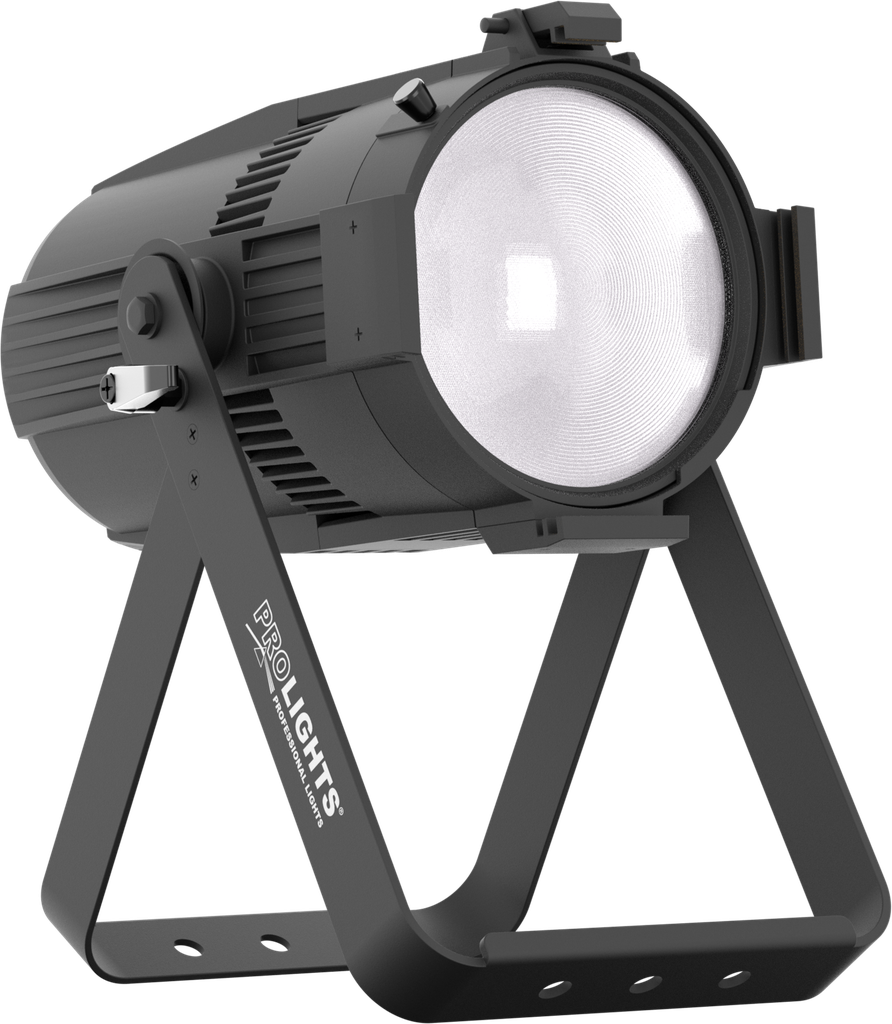

Prolights ECLPARDY

كشّاف LED COB 1x177W DY، 24°، تعتيم HDL، IP20، 207W، 5,5Kg

بالعرض فقط

السعر عند الطلب

إضافة إلى قائمة الأمنيات

عرض على موقع الشركة المصنّعة

رمز المنتج: ECLPARDY

الفئة: كشّافات Par , كشّافات Par وواش

العلامة التجارية: Prolights

التوصيل للطلبات التي تتجاوز 1,000 درهم

الضمان 2 سنوات

دفع آمن معاملات مشفرة وآمنة

دعم متخصص دعم ما قبل وما بعد البيع

استشر خبيراً

فريقنا جاهز لمساعدتك.

استشر خبيراً

فريقنا جاهز لمساعدتك.

اتصل بنا

تحتاج عرض سعر؟

سنوفر لك تسعيرة مخصصة لمشروعك.

طلب عرض سعر

EclPar is a range of multipurpose LED fixtures with a single source, delivering silent operation, high quality of light and optical flexibility, designed to redefine the standard for theatrical, TV and corporate applications. EclPar TU and DY features a 177W white LED source (3.200 K TU; 6.000 K DY) delivering a tremendous lumen output and superior light quality with CRI and R9 > of 96. EclPar UV is a real UV LED luminaire with a 365nm wavelength LED source. The fixture offers an extensive accessory range including barn doors, filter frame, egg crate and a multitude of interchangeable lenses. EclPar features a smooth 16-bit dimming as well as RDM control and adjustable PWM to look good in front of a camera.

177W White LED source (3.200 K TU; 5.600 K DY) with CRI and R9 > of 96; UV 108W 365nm wavelength LED source

Flex lens system: TU and DY 24° on-board - 12° and 73° included - 40° optional - UV 40° on-board

Silent operation and adjustable PWM

Features:
177W White LED source (3.200 K TU; 5.600 K DY) with CRI and R9 > of 96; UV 108W 365nm wavelength LED source
Flex lens system: TU and DY 24° on-board - 12° and 73° included - 40° optional - UV 40° on-board
Silent operation and adjustable PWM

LIGHT SOURCE

Source:

108 W (UV) / 177
W

White LED
Source CCT:

(TU) 3.200K - (DY) 5.600
K
Luminous flux:

(TU) 12°: 11'726 lm - 24°: 12'454 lm - 73°: 11'834

@Full
Luminous flux:

(DY) 12°: 13'739 lm - 24°: 14'436 lm - 73°: 13'913 lm; (UV) 229,07 lm
Lux:

(TU) 12°: 5'102 lx - 24°: 2'333 lx - 73°: 344
lx

@5 m full
Lux:

(DY) 12°: 5'947 lx - 24°: 2'777 lx - 73°: 413 lx; (UV) 5'724
lx

@5 m full
CRI:

> 97 for TU; > 96 for DY
R9:

> 97 for TU; > 96 for DY
TLCI:

> 98 for TU; > 95 for DY
TM30 Rf:

> 93 for TU; > 90 for DY
TM30 Rg:

< 102 for TU; < 101 for DY
Source life expectancy:

> 70.000 h

OPTICS

Beam angle:

with different lens included: 12° / 24° / 73
°
Field angle:

with different lens included: 28° / 41° / 104
°
Lens diameter:

163
mm
Lens type:

fresnel lens
Additional optics:

24° (onboard - for TU and DY versions), 12° and 73° lens included (for TU and DY versions), 40° lens optional (for TU and DY versions)
Other:

40° lens included on board in UV version; no other lenses availables

DYNAMIC EFFECTS

Static mode:

selection of static colour
Manual mode:

manual adjustment of dimmer and strobe
Auto mode:

built-in programs with execution speed adjustment

CONTROL

Supported Protocols:

DMX512, RDM
DMX channels:

1 / 2 / 3 / 6
ch
RDM:

for remote addressing and parameter configuration
Display:

OLED display
Master/Slave:

for synchronised operation of more units linked in a chain

ELECTRONICS

Dimmer:

linear 0 - 100% electronic dimmer
Dimmer curves:

selectable dimming modes available
Strobe / shutter:

1 - 30

Hz, electronic
Selectable PWM:

600 to 25000 Hz (selectable steps)
Firmware upgrade:

via DMX with UPBOXPRO/UPBOX1 (not included)

CONNECTIONS

Power connection:

Neutrik powerCON IN/OUT connectors
Signal connection:

Amphenol XLR 3p + 5p IN/OUT connectors

ELECTRICAL

Mains power supply:

100-240V - 50/60Hz
Max power consumption (230V):

(TU, DY) 207 W - (UV) 204
W
Output (at 230V):

15

units on a single power line
Standby power:

110VAC/3.8W, 230VAC/4.5W
Power factor:

> 0.95

PHYSICAL

IP rating:

IP20
Cooling:

forced-air with low-noise fan
Housing:

Die-cast aluminium
Finish:

black
Operating temperature:

Ta

-10 to +45 °C (+14 to +113 °F)
Dimensions (WxHxD):

316x404x317
mm
Weight:

5,5
kg

INSTALLATION

Suspension and fixing:

any position with quick-lock omega brackets
Other:

gel frame holder included in the box (for TU and DY versions) - egg crate optional - barndoors optional

CERTIFICATIONS / REPORTS
