Prolights ECLPARDOTVW

كشّاف بن سبوت LED أبيض متغيّر بقدرة 20W، زاوية الحزمة 5°

بالعرض فقط

السعر عند الطلب

إضافة إلى قائمة الأمنيات

عرض على موقع الشركة المصنّعة

رمز المنتج: ECLPARDOTVW

الفئة: كشّافات Par وواش

العلامة التجارية: Prolights

التوصيل للطلبات التي تتجاوز 1,000 درهم

الضمان 2 سنوات

دفع آمن معاملات مشفرة وآمنة

دعم متخصص دعم ما قبل وما بعد البيع

استشر خبيراً

فريقنا جاهز لمساعدتك.

استشر خبيراً

فريقنا جاهز لمساعدتك.

اتصل بنا

تحتاج عرض سعر؟

سنوفر لك تسعيرة مخصصة لمشروعك.

طلب عرض سعر

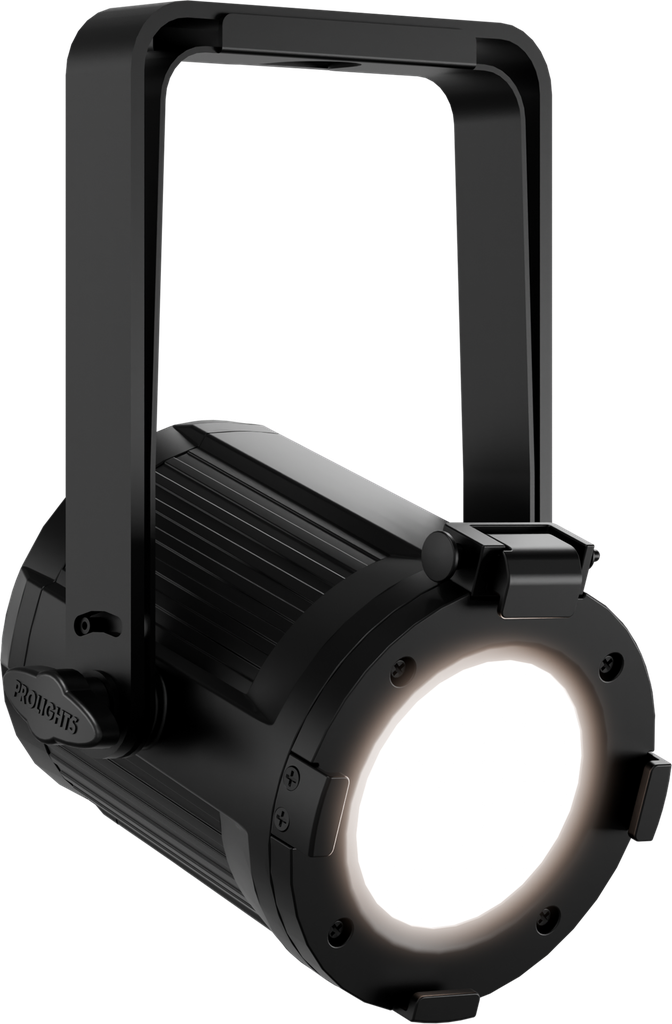

EclPar DotVW is an ultra-compact, fan-free pinspot featuring a larger front lens and enhanced output. It delivers a bright, narrow projection with smooth white mixing and high quality white reproduction.

A 20W Variable White LED paired with a 60 mm lens produces a halo-free 5° beam, staying tight and bright even over long throws ideal for highlights, accents, scenic elements, set pieces, and discreet stage lighting.

EclPar DotVW combines a Variable White LED source with precise CCT control, delivering consistent behaviour and high-fidelity whites with excellent colour rendering.

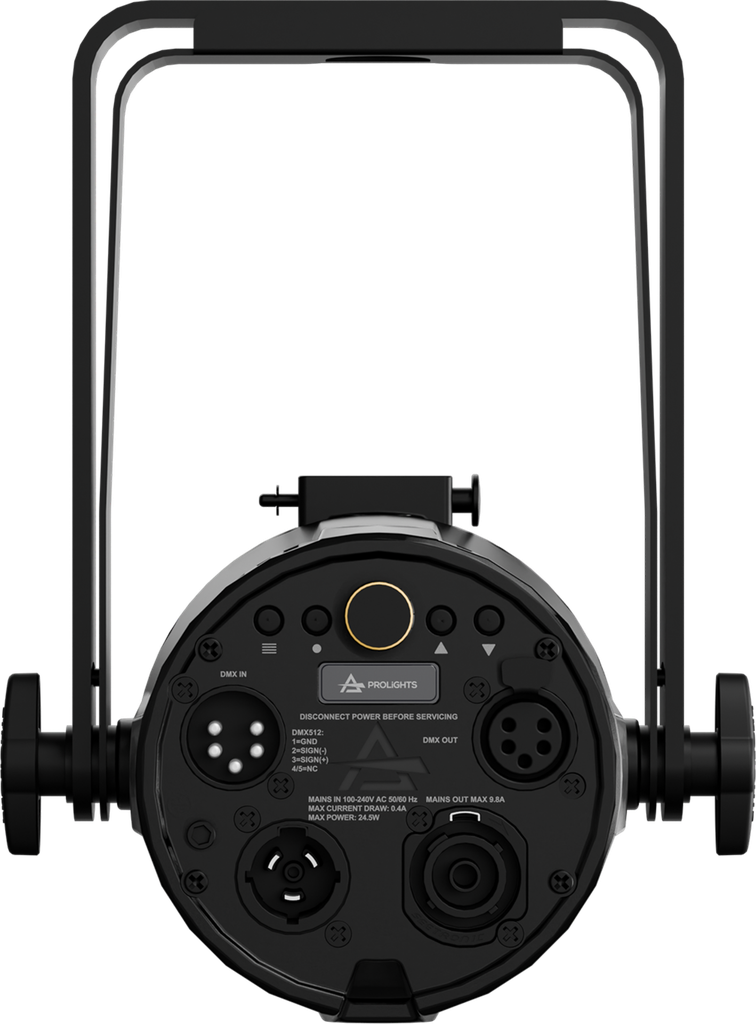

The fixture is passively cooled and completely silent. With a weight of only 1.2 kg and an ultra-compact form factor, it can be placed virtually anywhere. On-board DMX (XLR) in/out and power in/out connections make installation fast and enable easy daisy-chaining. The integrated push encoder also allows intuitive standalone operation without a control signal, ensuring quick setup and ease of use.

20 W Variable White LED, 2,800 K - 6,500 K with high CRI

Tight 5° beam with 60 mm lens, halo-free projection

Advanced CCT control and high-fidelity white reproduction

Fan-free, 1.2 kg, with chassis-mounted DMX in/out and power in/out for easy daisy-chain wiring

EclPar DotVW combines a Variable White LED source with precise CCT control, delivering consistent behaviour and high-fidelity whites with excellent colour rendering.

Features:
20 W Variable White LED, 2,800 K - 6,500 K with high CRI
Tight 5° beam with 60 mm lens, halo-free projection
Advanced CCT control and high-fidelity white reproduction
Fan-free, 1.2 kg, with chassis-mounted DMX in/out and power in/out for easy daisy-chain wiring

LIGHT SOURCE

Source:

1 x 20
W

Warm White + Cold White LEDs
Source CCT:

K

dedicated variable CCT channel (2800-6500 K)
Luminous flux:

844 lm

@Full
Luminous flux:

753 lm @3.200 K; 889 lm

@5.600 K
Lux:

3.702
lx

@5 m full
Lux:

3.349lx @5 m 3.200K; 3.811
lx

@5 m 5.600K
CRI:

96,7 @3.200K; 96,1 @5.600K
R9:

91,7 @3.200K; 98,6 @5.600K
TLCI:

95 @3.200K; 99 @5.600K
TM30 Rf:

93,6 @3.200K; 94,1 @5.600K
TM30 Rg:

104,4 @3.200K; 102,9 @5.600K
Source life expectancy:

> 90.000 hrs (L70B10 @Ta 25° C / 77° F)

OPTICS

Beam angle:

4,6
°
Field angle:

7,7
°
Lens diameter:

60
mm

COLOUR SYSTEM

Colour mixing:

tunable white
CCT:

CCT control through dedicated DMX channel
Macros:

built-in white presets

DYNAMIC EFFECTS

Static mode:

selection of static dimmer, colors and color temperature
Manual mode:

manual adjustment of dimmer and strobe
Auto mode:

built-in programs with execution speed adjustment

CONTROL

Supported Protocols:

DMX512, RDM
DMX channels:

1 / 2 / 3 / 4 / 9
ch
RDM:

for remote addressing and parameter configuration
Display:

LED display user interface
Stand Alone:

push encoder
Master/Slave:

for synchronised operation of more units linked in a chain

ELECTRONICS

Dimmer:

linear 0 - 100% electronic dimmer
Dimmer curves:

4

selectable dimming modes available
Strobe / shutter:

1-30

Hz, electronic
Selectable PWM:

600 to 25000 Hz (selectable steps)
Firmware upgrade:

via DMX with UPBOXPRO/UPBOX1 (not included)

CONNECTIONS

Power connection:

Seetronic powerCON IN/OUT connectors
Signal connection:

Amphenol XLR 5p IN/OUT connectors

ELECTRICAL

Mains power supply:

100-240V - 50/60Hz
Max power consumption (230V):

25
W
Standby power:

1 W
Power factor:

> 0,9

PHYSICAL

IP rating:

IP20
Cooling:

fan-free with natural convection
Housing:

Sturdy die-cast aluminium body
Finish:

black
Operating temperature:

Ta

-10 to +45 °C (+14 to +113 °F)
Dimensions (WxHxD):

165x221x144
mm
Weight:

1,2
kg

INSTALLATION

Suspension and fixing:

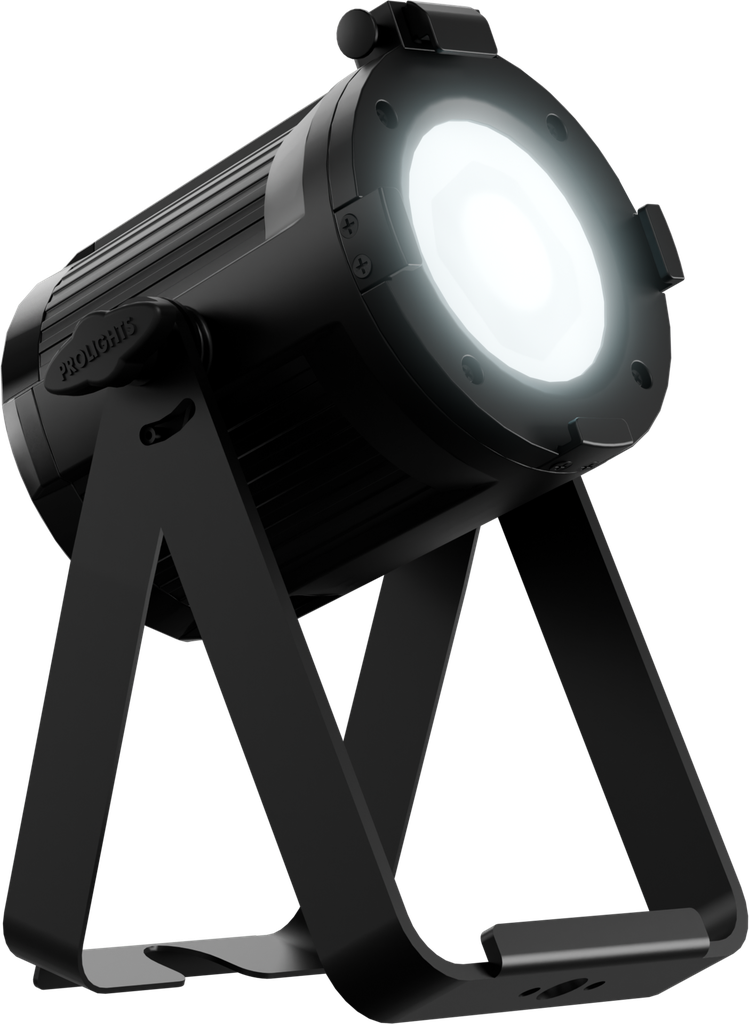

double hanging bracket suitable for safe hanging and for floor positioning
Other:

Front mount holder for accessories - see available accessories

CERTIFICATIONS / REPORTS
