Prolights ECLNPTWCPACK

طقم من 4 x ECLNANOPANELTWC، يشمل الملحقات الأساسية في حقيبة ABS

بالعرض فقط

السعر عند الطلب

إضافة إلى قائمة الأمنيات

عرض على موقع الشركة المصنّعة

رمز المنتج: ECLNPTWCPACK

الفئة: إضاءة ناعمة

العلامة التجارية: Prolights

التوصيل للطلبات التي تتجاوز 1,000 درهم

الضمان 2 سنوات

دفع آمن معاملات مشفرة وآمنة

دعم متخصص دعم ما قبل وما بعد البيع

استشر خبيراً

فريقنا جاهز لمساعدتك.

استشر خبيراً

فريقنا جاهز لمساعدتك.

اتصل بنا

تحتاج عرض سعر؟

سنوفر لك تسعيرة مخصصة لمشروعك.

طلب عرض سعر

The EclNanoPanel TWC is the smallest member of the successful EclPanel range, containing all the outstanding features of the larger format soft lights in a compact-sized, battery-operated luminaire, with a surprisingly powerful 1,800 lumen output.

This compact-sized fixture has the same colour technology as the other soft lights, producing rich colours, high quality white tones, colour gel matching, and on-board pixel cinema effects.

The EclNanoPanel TWC has 3 precision encoder, with multiple Stand Alone control modes: CCT with +/- green shift, CCT presets, HSI for total control of hue, saturation and intensity, RAW RGBW mode, XY and FX mode, allowing to scroll through the built-in cinema effects engine.

Each of the 4 sections is controlled individually or simultaneously, allowing to play on-board customizable, cinematic effects through its built-in engine or from a console.
EclNanoPanel brings ultimate color control: RGBW, RGB, CMY, HSI, XY, RAW Direct, CCT Linear and CCT Presets with +/- green shift, Source emulation and industry-standard Color gels.

There are multiple, magnetized beam-shaping optical accessories available, including barndoors, diffusers, etc, and on-board threads for easy mounting on stands or camera rigs.

The fixture is controlled from its on-board user interface, or via the built-in Wireless DMX/RDM transceiver (CRMX and W-DMX).

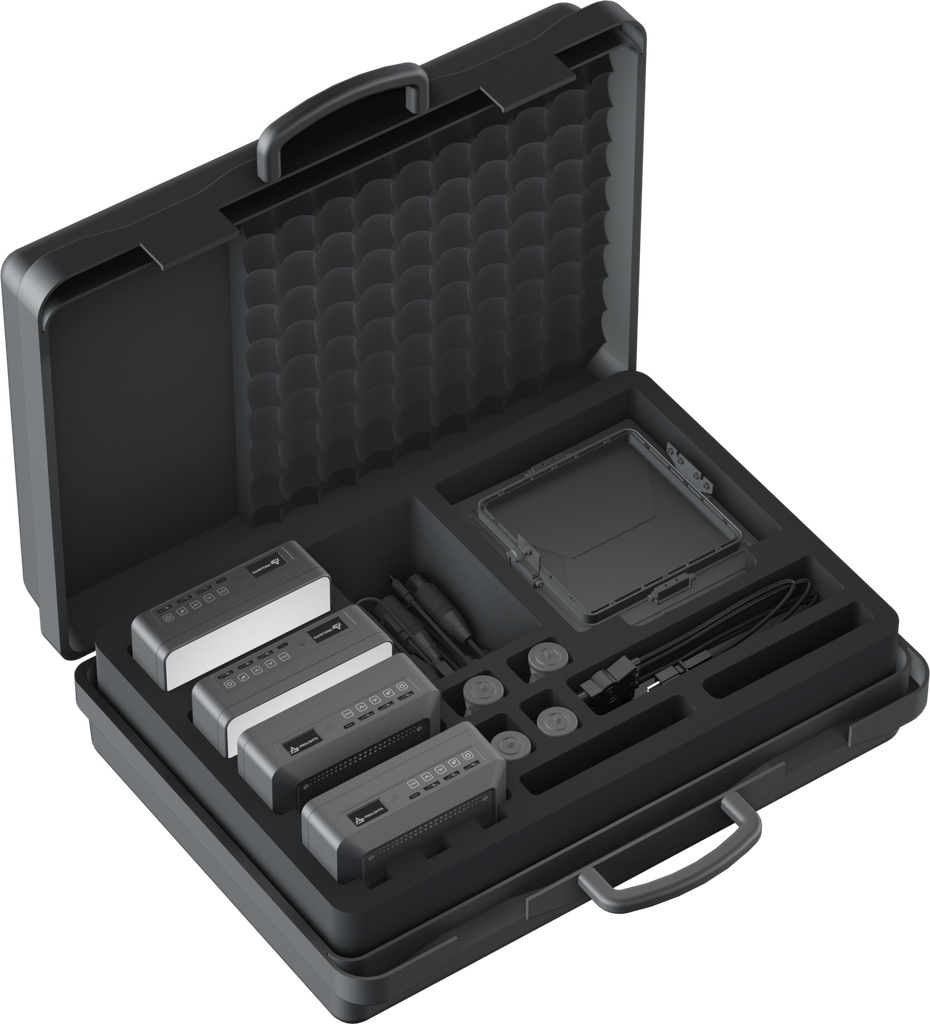

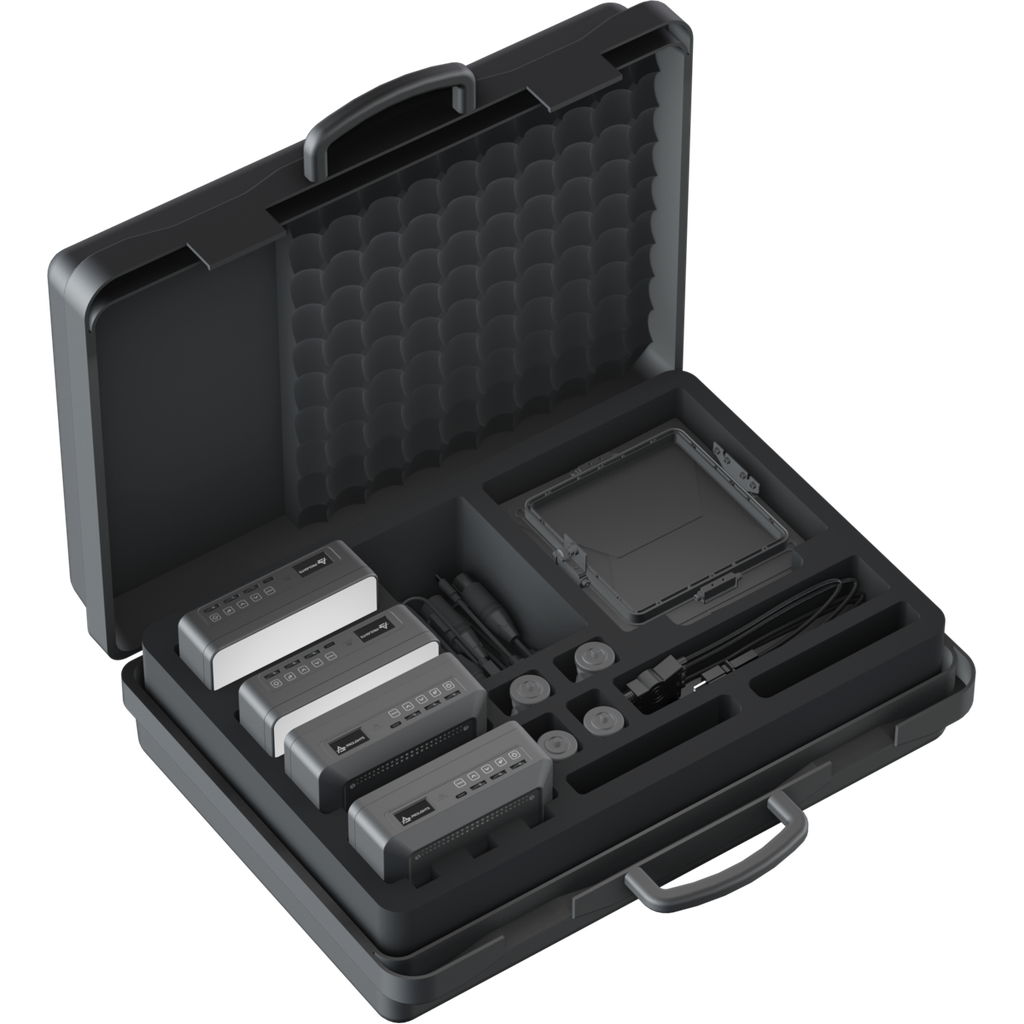

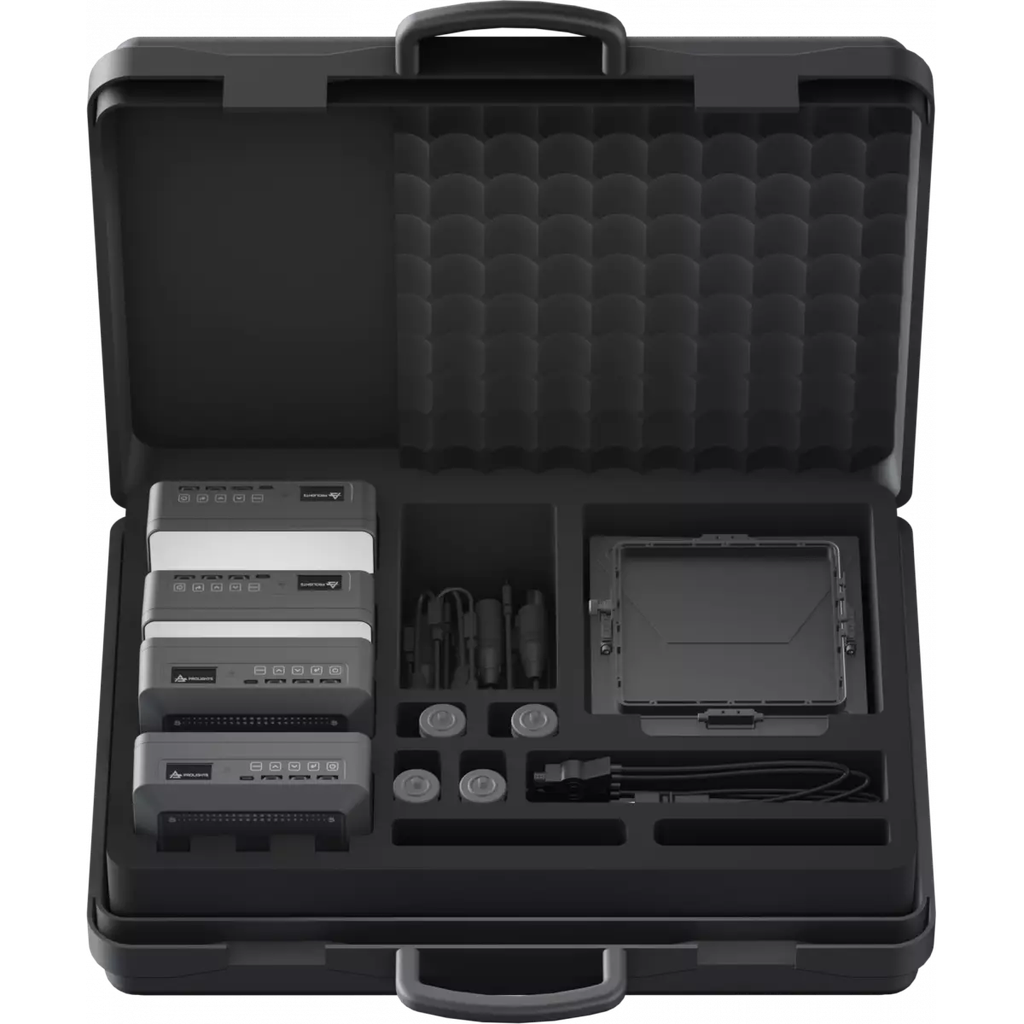

The pack includes:

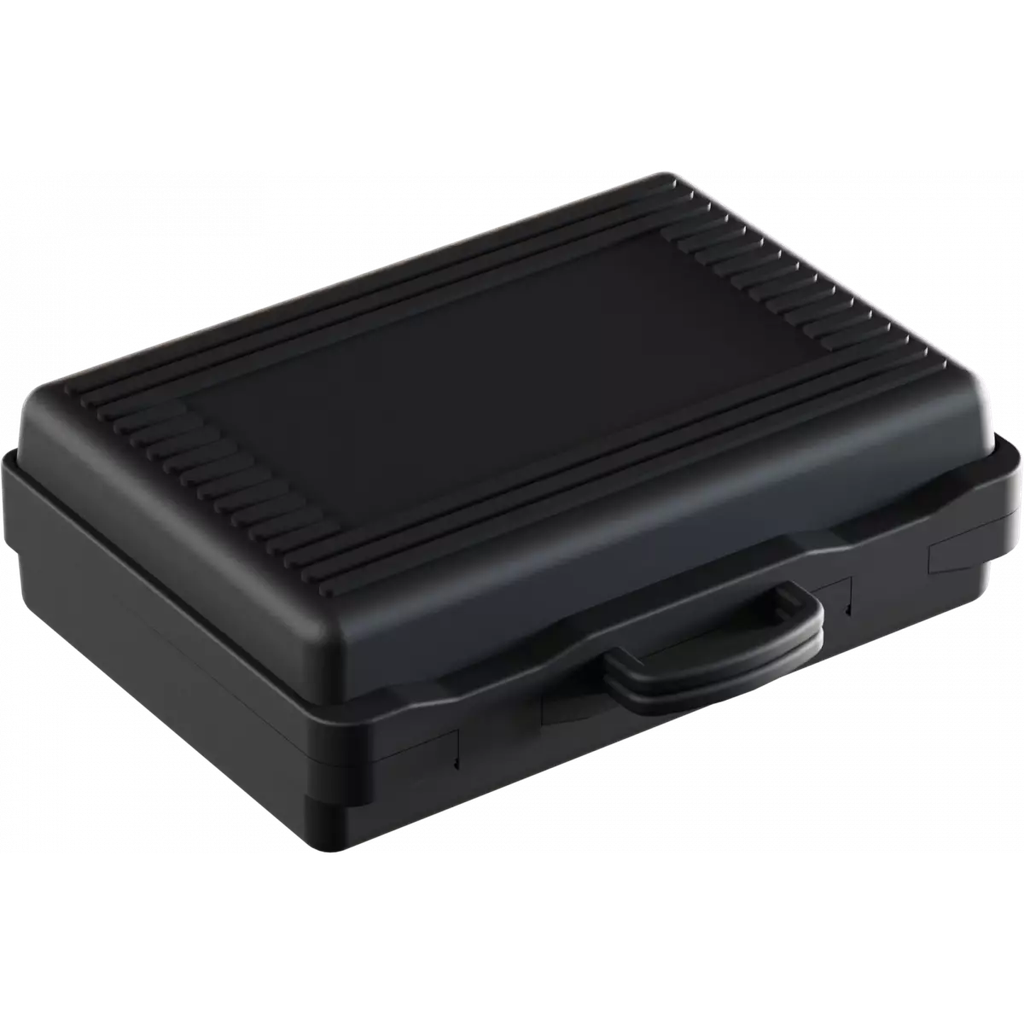

1 x ABS case
4 x ECLNANOPANELTWC (includes: ENPTWCFILTERLD on-board)
1 x 4-way charger

4 x position articulated joint (ENPTWCPAJ)
4 x barndoors (ENPTWCBD)
4 x Y Cable from XLR 5P male, XLR 5P female and USB-C female to USB-C male (ENPTWCYCABLE)
1 x User Manual

Compact-sized soft light, with wireless control (CRMX and W-DMX) and battery-powered

30W RGB + Warm White LED source, surprisingly powerful 1,800 lumen output.

Magnetized beam-shaping optical accessories available

This compact-sized fixture has the same colour technology as the other soft lights, producing rich colours, high quality white tones, colour gel matching, and on-board pixel cinema effects.

There are multiple, magnetized beam-shaping optical accessories available, including barndoors, diffusers, etc, and on-board threads for easy mounting on stands or camera rigs.

The fixture is controlled from its on-board user interface, or via the built-in Wireless DMX/RDM transceiver (CRMX and W-DMX).

The pack includes:
1 x ABS case
4 x ECLNANOPANELTWC (includes: ENPTWCFILTERLD on-board)
1 x 4-way charger

4 x position articulated joint (ENPTWCPAJ)
4 x barndoors (ENPTWCBD)
4 x Y Cable from XLR 5P male, XLR 5P female and USB-C female to USB-C male (ENPTWCYCABLE)
1 x User Manual

Features:
Compact-sized soft light, with wireless control (CRMX and W-DMX) and battery-powered
30W RGB + Warm White LED source, surprisingly powerful 1,800 lumen output.
Magnetized beam-shaping optical accessories available

LIGHT SOURCE

Source:

30
W

RGB + Warm White LEDs
Luminous flux:

1'829

@3.200 K with LD filter
Lux:

690
lx

@1 m
CRI:

94,6 @3.200 K; 94,9 @5.600 K
R9:

97,1 @3.200 K; 96 @5.600 K
TLCI:

92 @5.600 K
TM30 Rf:

97,7 @3.200 K; 89,3 @5.600 K
TM30 Rg:

102,5 @3.200 K; 102,3 @5.600 K
Source life expectancy:

> 50.000 h

OPTICS

Beam angle:

105
°
Field angle:

159
°
Lens type:

magnetic light density

diffusion panel (interchangeable)
Additional optics:

see available accessories

COLOUR SYSTEM

Colour control:

XY, CCT, RGBW, Gel, HSI, Source Emulation, Colour Macros, CTO on colours
Colour mixing:

RGB + Warm White
CCT:

Max CCT control range from 2.200K to 15.000K, + / - green correction, tungsten emulation
White presets:

2,800 K - 10,000
K
Colour wheel:

virtual colour wheel with macros

DYNAMIC EFFECTS

Control Resolution:

16-bit dimmer and color control
Pixel patterns:

pre-programmed pixel macros and cinema lighting effects
FX generator:

4

controllable sections
Static mode:

selection of static colour
Manual mode:

manual adjustment of intensity, CT, colour correction from knob
Auto mode:

built-in programs with execution speed adjustment
Special features:

linear crossfade channel from any white to any colour; virtual CTO on colours

CONTROL

Supported Protocols:

DMX512, RDM, CRMX + WDMX
RDM:

for remote addressing and parameter configuration
Display:

Graphic User Interface
Stand Alone:

selectable mode through 3

rotatory knobs
IR:

infrared sensor controlled by remote (included in the pack, not included in single unit)
Master/Slave:

for synchronised operation of more units linked in a chain

ELECTRONICS

Dimmer:

linear 0 - 100% electronic dimmer
Dimmer curves:

4

selectable dimming modes available
Strobe / shutter:

1 - 30

Hz, electronic
Selectable PWM:

600 to 36000 Hz (selectable steps)
Firmware upgrade:

via DMX with UPBOX1+ENPTWCYCABLE (not included)

BATTERY

Battery:

11.1
V

lithium
Estimated battery life:

up to 2 / 6 / 8 / 12 / 18 h (selectable)
Recharge connection:

USB type C
Recharge time:

2,5
h (max)
Battery level indicator:

shown on display

CONNECTIONS

Wireless Connection:

integrated LumenRadio TiMo FX RDM - CRMX and W-DMX compatible
Adaptors:

USB type C to XLR connectors
Low Voltage DC connector:

USB type C

ELECTRICAL
