Prolights ECLFRCTPLBK

فرينل Led داخلي بمصدر 6 ألوان بقدرة 600 W، عدسة 250mm-10''، أسود

بالعرض فقط

السعر عند الطلب

إضافة إلى قائمة الأمنيات

عرض على موقع الشركة المصنّعة

رمز المنتج: ECLFRCTPLBK

الفئة: كشّاف فرينل

العلامة التجارية: Prolights

التوصيل للطلبات التي تتجاوز 1,000 درهم

الضمان 2 سنوات

دفع آمن معاملات مشفرة وآمنة

دعم متخصص دعم ما قبل وما بعد البيع

استشر خبيراً

فريقنا جاهز لمساعدتك.

استشر خبيراً

فريقنا جاهز لمساعدتك.

اتصل بنا

تحتاج عرض سعر؟

سنوفر لك تسعيرة مخصصة لمشروعك.

طلب عرض سعر

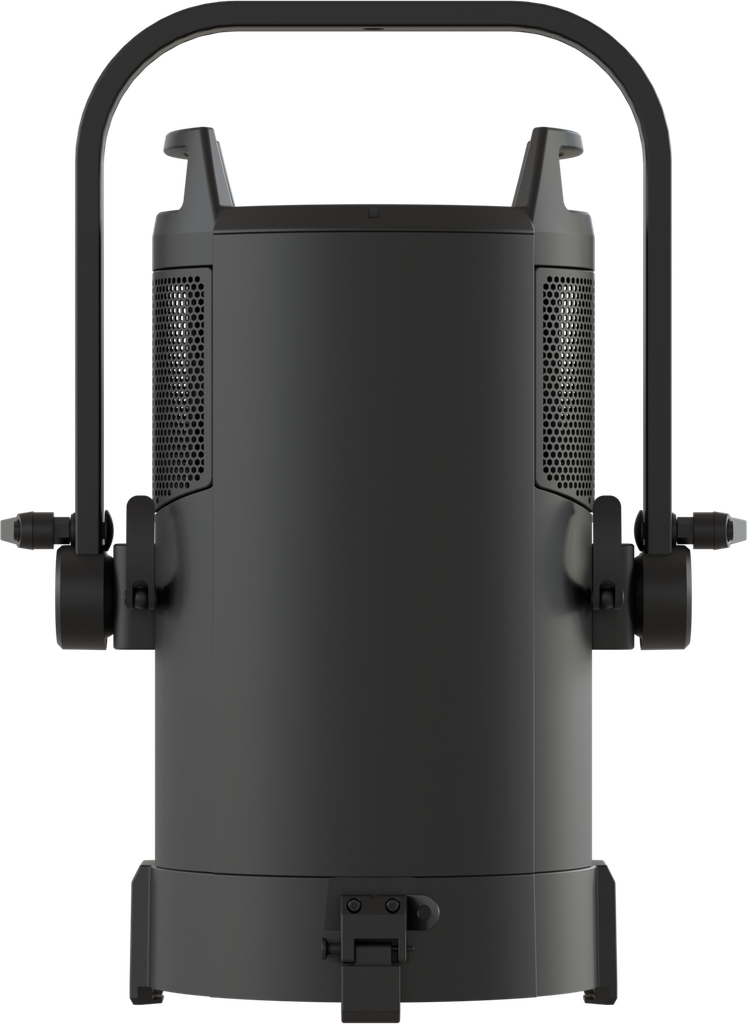

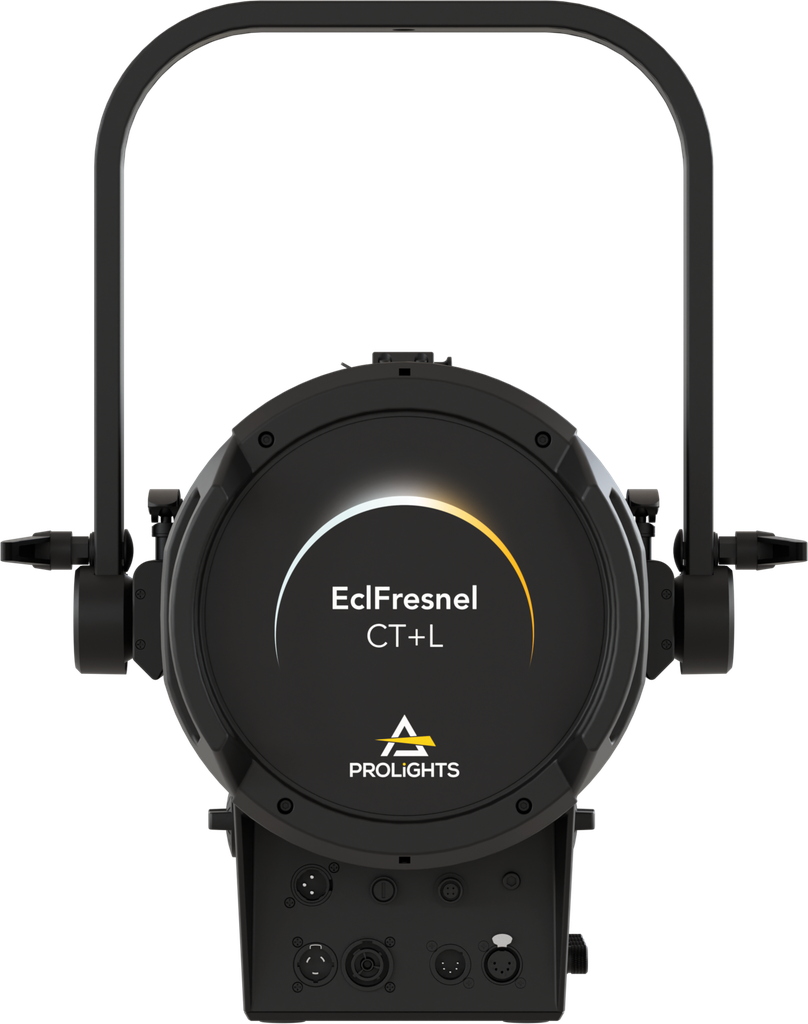

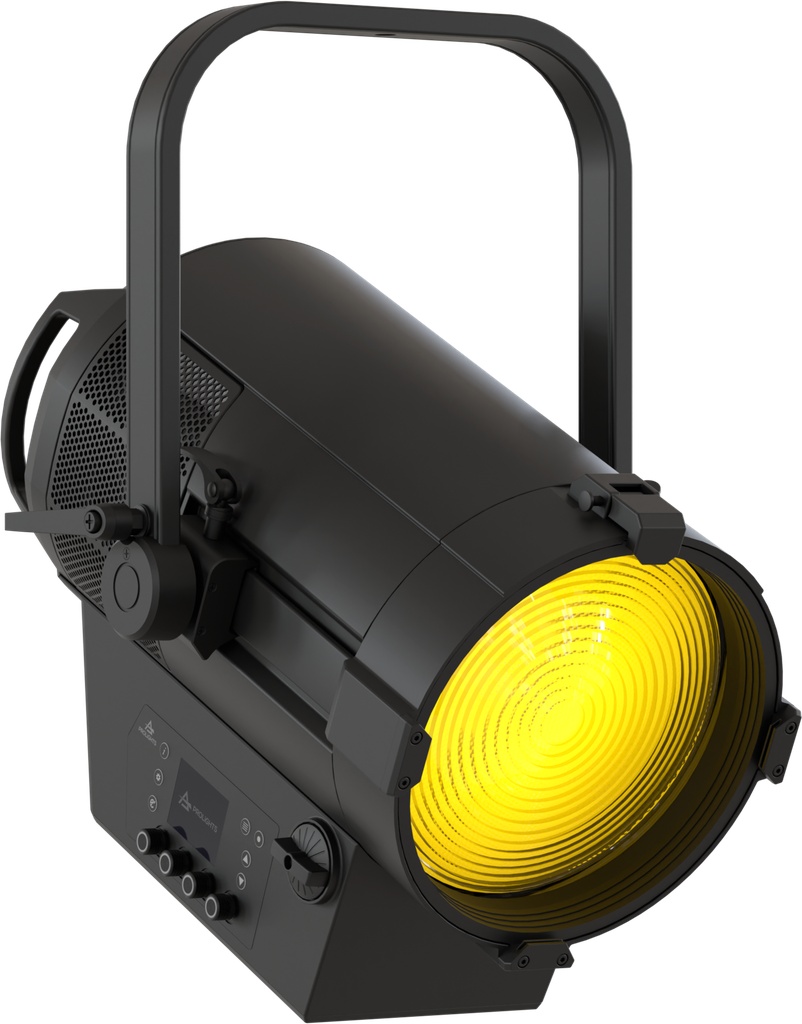

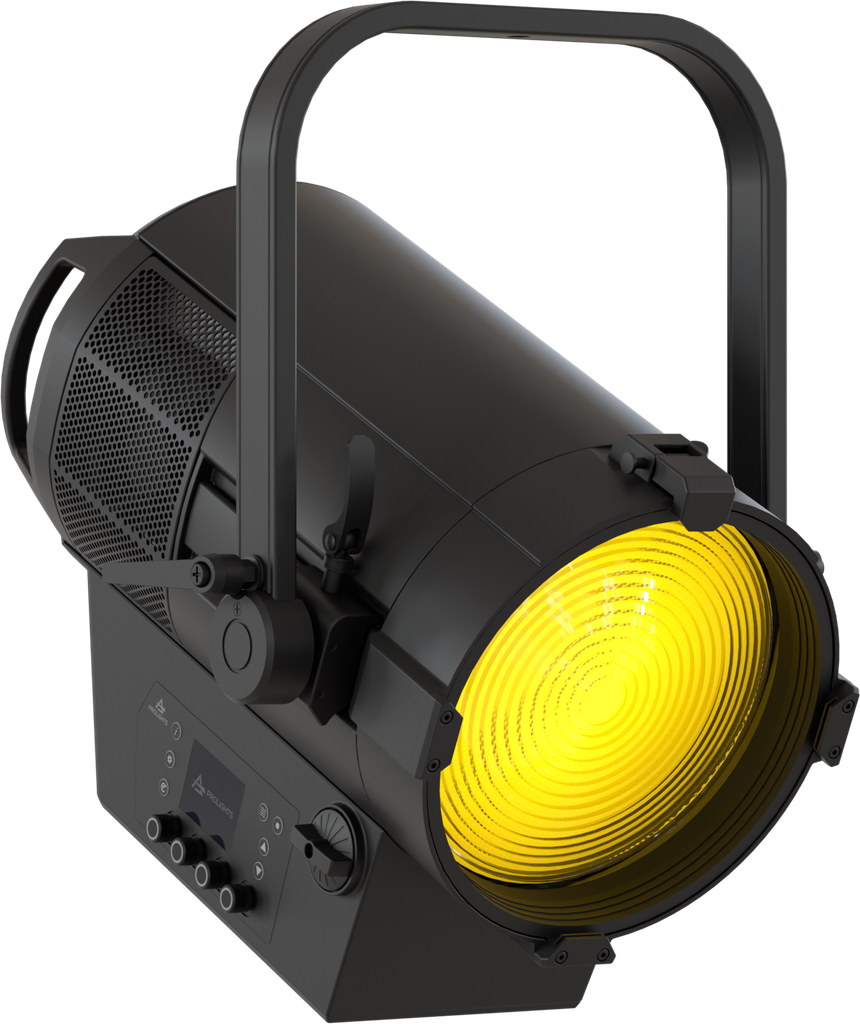

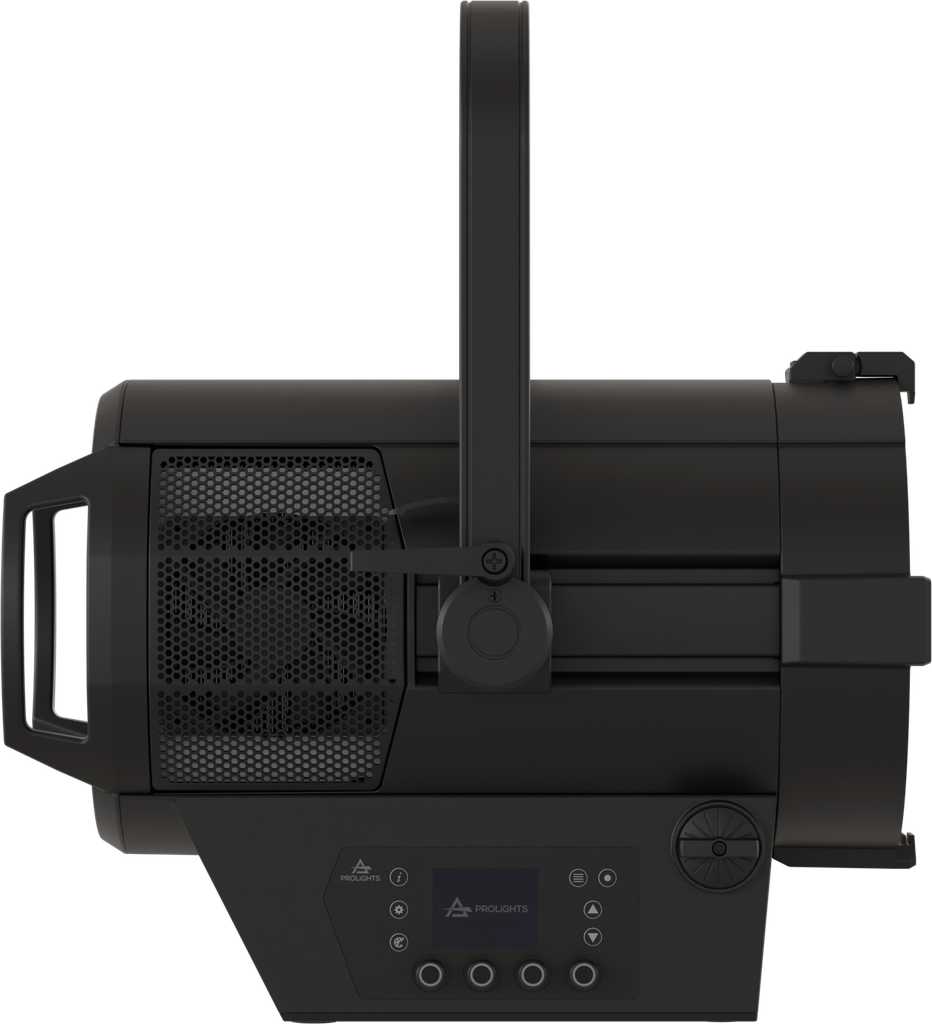

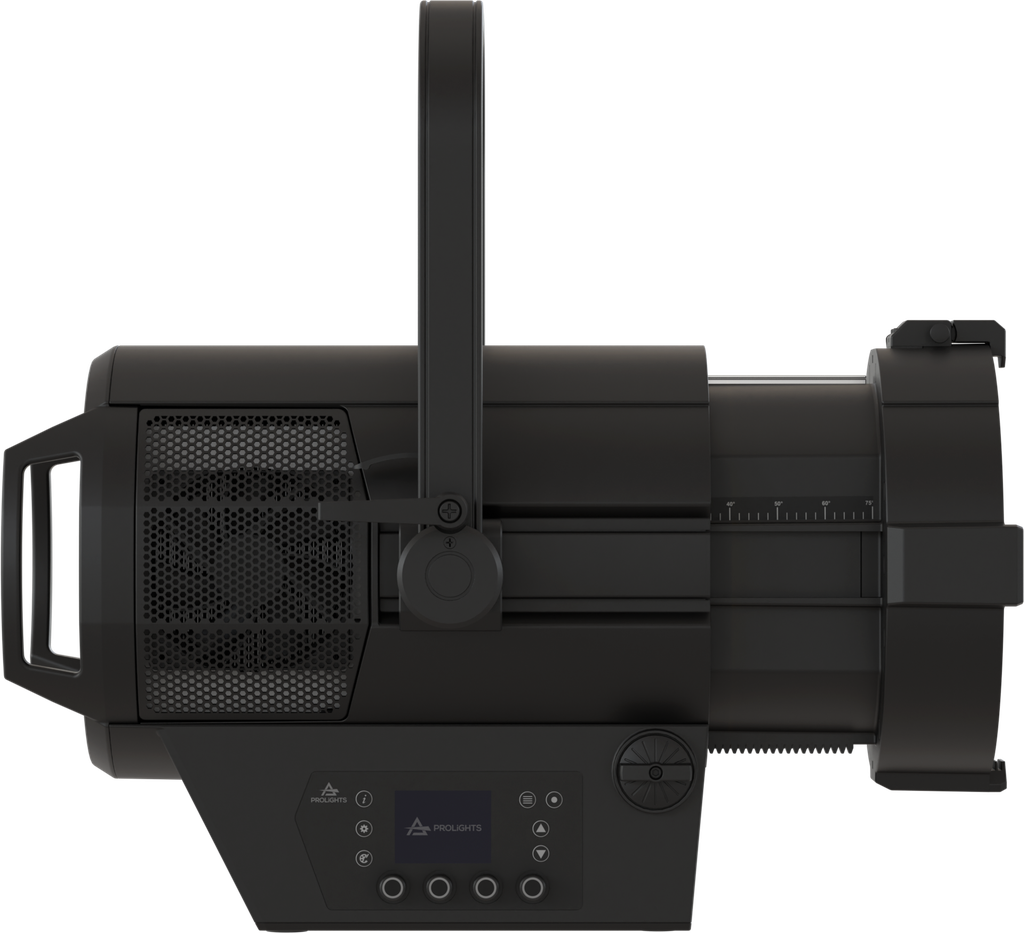

EclFresnel CT+L is a 600W LED Fresnel, engineered with a new 6 colours light source and a 250mm / 10'' glass Fresnel lens.

The newly designed optical system allows a greater zoom range from 10° to 77°, keeping and high efficiency also at a narrow beam angle.

The Spektra calibrated light source delivers consistency in operations, higher luminous flux in both colours and whites CCT keeping a broader color space and richer light spectrum to achieve unprecedented values of CRI, TLCI and TM30.

Fixtures of the EclFresnel CT+ range brings more power in their processing unit, offering an ultimate user experience in terms of control of the light and colours and as well more intuitive stand alone operations through a larger display, backlight encoders, and advanced connectivity both wired and wireless.

Completed by a wide range of accessories including 8 leaf barndoors and P.O. bracket, the EclFresnel CT+ also performs silent, allowing to be the indispensable workhorse for Broadcast, Film and Theatre applications.

600W 6 colour LED Fresnel with 250mm/10'' glass lens

10-77° Manual zoom system

High quality CCT reproduction and advanced color control

New UI with 2.8'' display and 4 backlit pushable encoder

EclFresnel CT+L is a 600W LED Fresnel, engineered with a new 6 colours light source and a 250mm / 10'' glass Fresnel lens.

The newly designed optical system allows a greater zoom range from 10° to 77°, keeping and high efficiency also at a narrow beam angle.

Features:
600W 6 colour LED Fresnel with 250mm/10'' glass lens
10-77° Manual zoom system
High quality CCT reproduction and advanced color control
New UI with 2.8'' display and 4 backlit pushable encoder

LIGHT SOURCE

Source:

600
W

6 colour LEDs source
Luminous flux:

(10°) 7'706 lm - (77°) 16'165

@Full
Lux:

(10°) 7'873 lx - (77°) 845
lx

@5 m full
CRI:

97,8 @3.200K; 97,4 @5.600 K
R9:

91 @3200K; 92 @5.600 K
TLCI:

91 @3200K; 95 @5.600 K
TM30 Rf:

> 94 @3.200K; > 94 @5.600 K
TM30 Rg:

< 100 @3.200K; < 101 @5.600 K
Source life expectancy:

> 50.000 h

OPTICS

Zoom range:

10° - 77
°

manual
Lens diameter:

250
mm
Lens type:

AR-coated glass Fresnel lens providing a classic soft light fall-off
Other:

spigot, barndoor and gel frame included

COLOUR SYSTEM

Colour control:

XY, CCT, Gel with Source Emulation, Tungsten emulation, HSI, User preset
Colour mixing:

6 colour LEDs source
CCT:

linear CCT adjustment from 1.850 K-20.000K

CONTROL

Supported Protocols:

DMX512, RDM, CRMX (optional)
RDM:

for remote addressing and parameter configuration
Display:

2.8'' Color display
Stand Alone:

4 pushable RGB backlit encoder
Master/Slave:

for synchronised operation of more units linked in a chain

ELECTRONICS

Dimmer:

linear 0 - 100% electronic dimmer
Dimmer curves:

6

selectable dimming modes available
Strobe / shutter:

1 - 30

Hz, electronic
Selectable PWM:

1282 to 40000 Hz (selectable steps)
Firmware upgrade:

via DMX with UPBOXPRO (not included)

CONNECTIONS

Power connection:

Neutrik powerCON TRUE1 IN/OUT connectors
Signal connection:

Amphenol XLR 5p IN/OUT connectors
Wireless Connection:

optional LumenRadio TimoTwo FX - CRMX, CRMX² (RX only) and W-DMX compatible, Bluetooth enabled
Data connection:

WEIPU SF12 4P-F
Low Voltage DC connector:

XLR 3p for 48V
