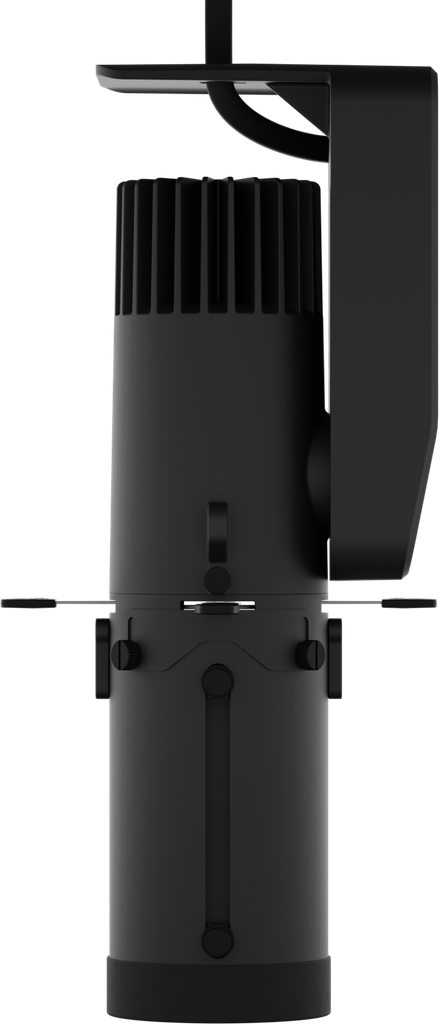

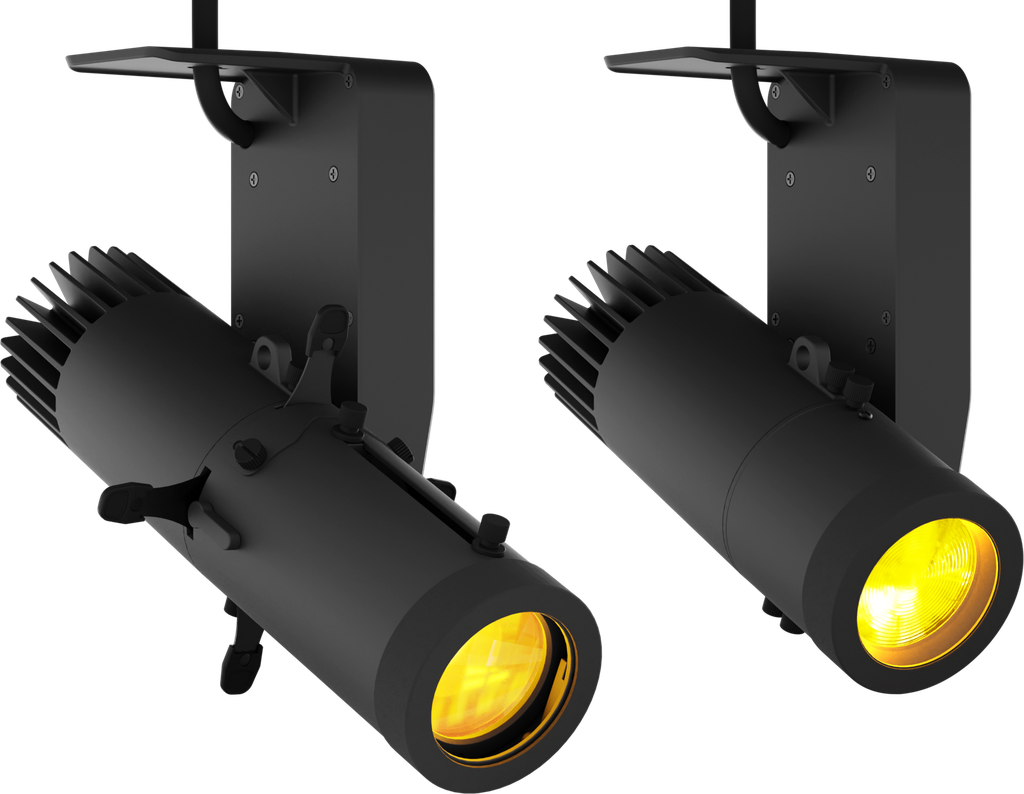

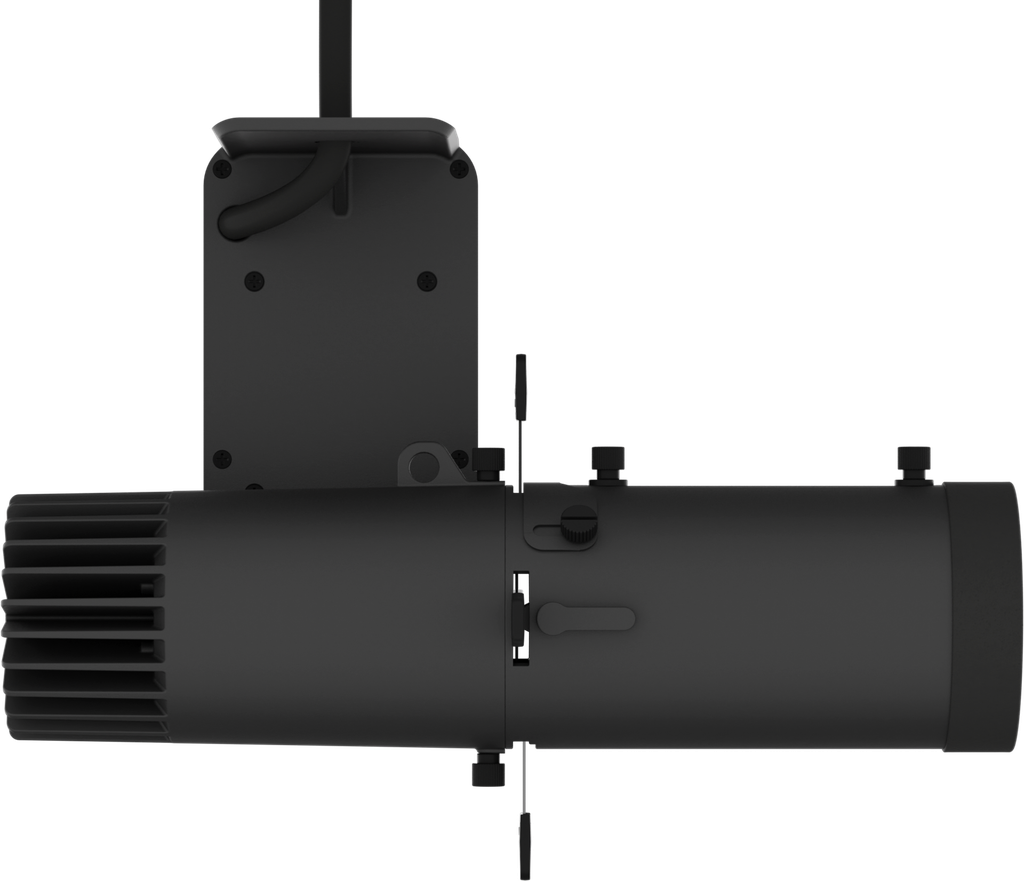

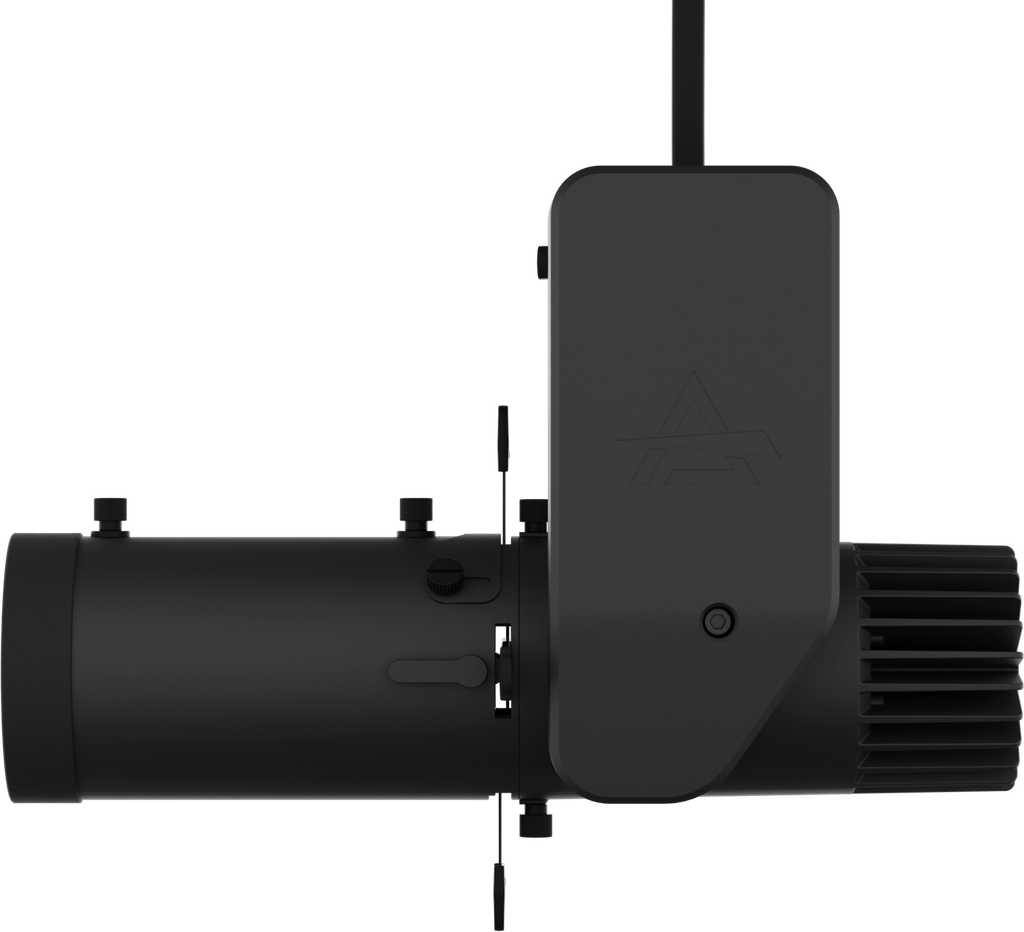

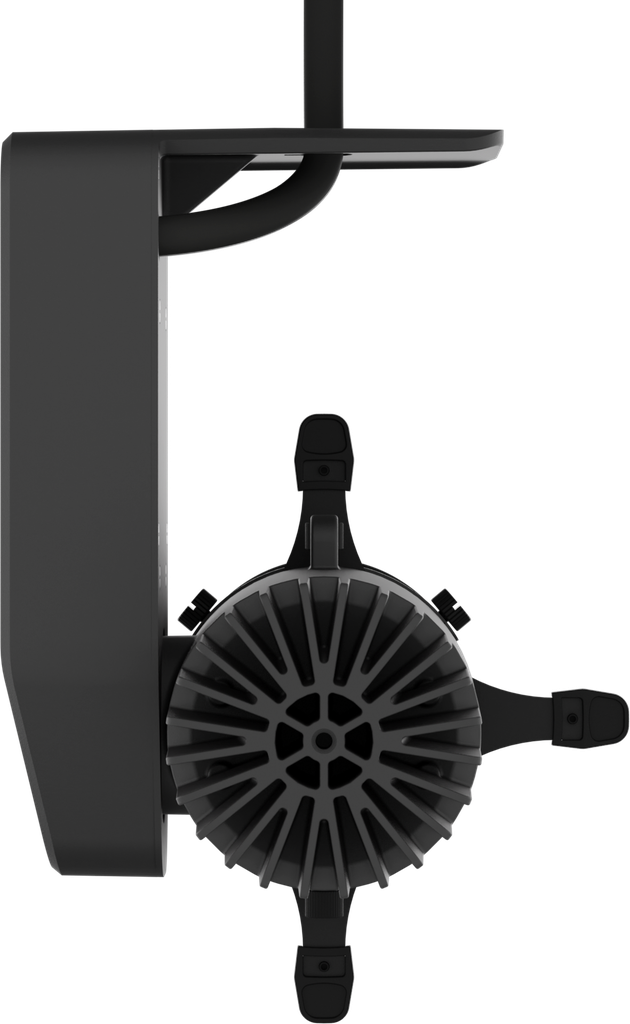

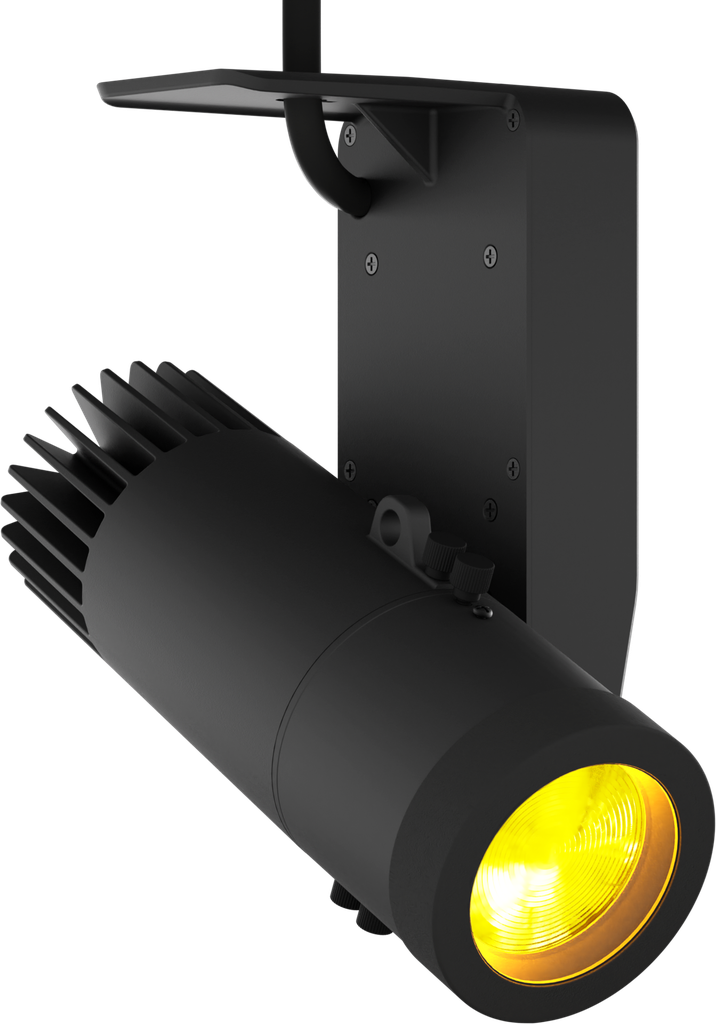

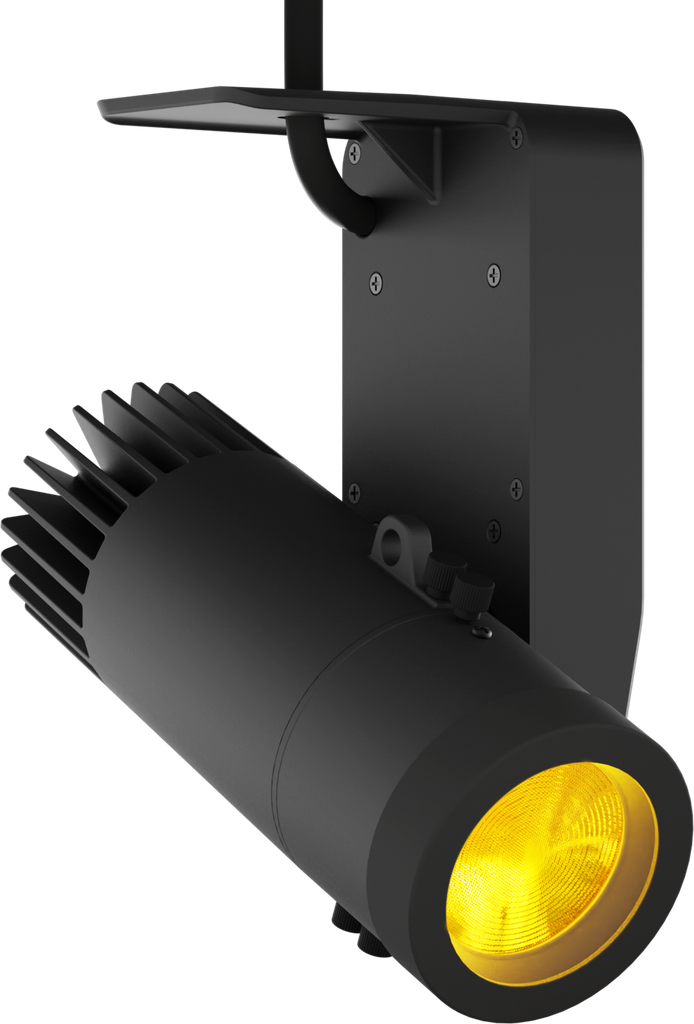

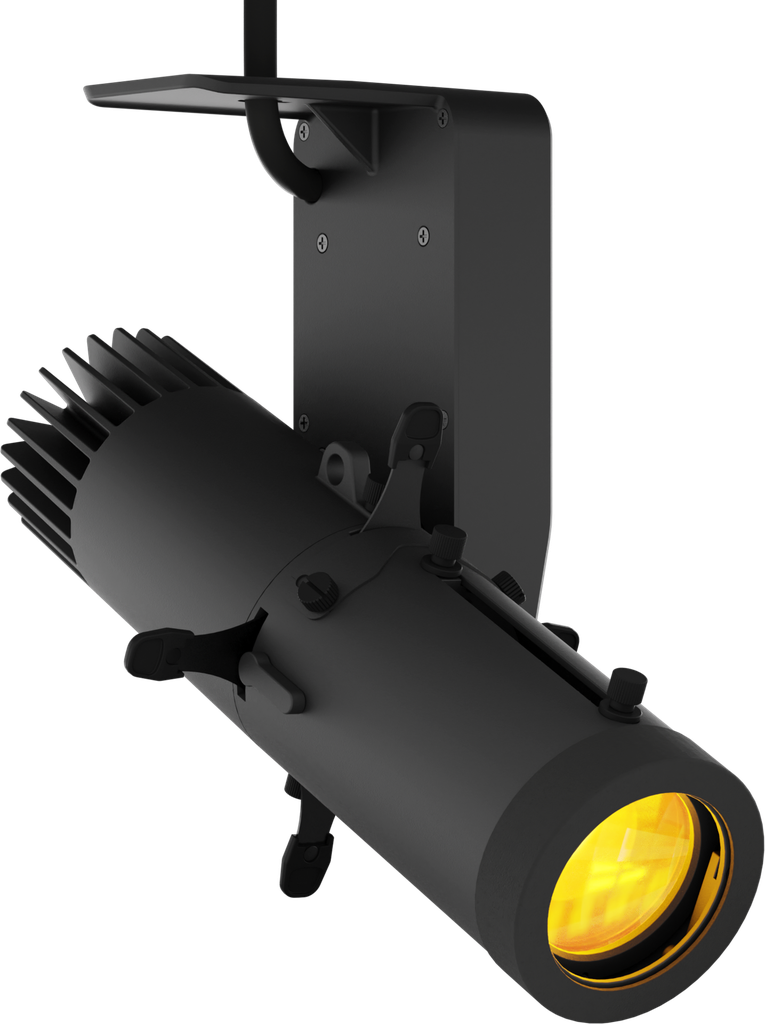

Prolights ECLDISPLAYCCFCB

ضوء معارض LED RGB+WW بقدرة 40W، أبيض قابل للضبط و FC، CC، PSU ومشغّل خارجيان، أسود

بالعرض فقط

السعر عند الطلب

إضافة إلى قائمة الأمنيات

عرض على موقع الشركة المصنّعة

رمز المنتج: ECLDISPLAYCCFCB

الفئة: أضواء المعارض

العلامة التجارية: Prolights

التوصيل للطلبات التي تتجاوز 1,000 درهم

الضمان 2 سنوات

دفع آمن معاملات مشفرة وآمنة

دعم متخصص دعم ما قبل وما بعد البيع

استشر خبيراً

فريقنا جاهز لمساعدتك.

استشر خبيراً

فريقنا جاهز لمساعدتك.

اتصل بنا

تحتاج عرض سعر؟

سنوفر لك تسعيرة مخصصة لمشروعك.

طلب عرض سعر

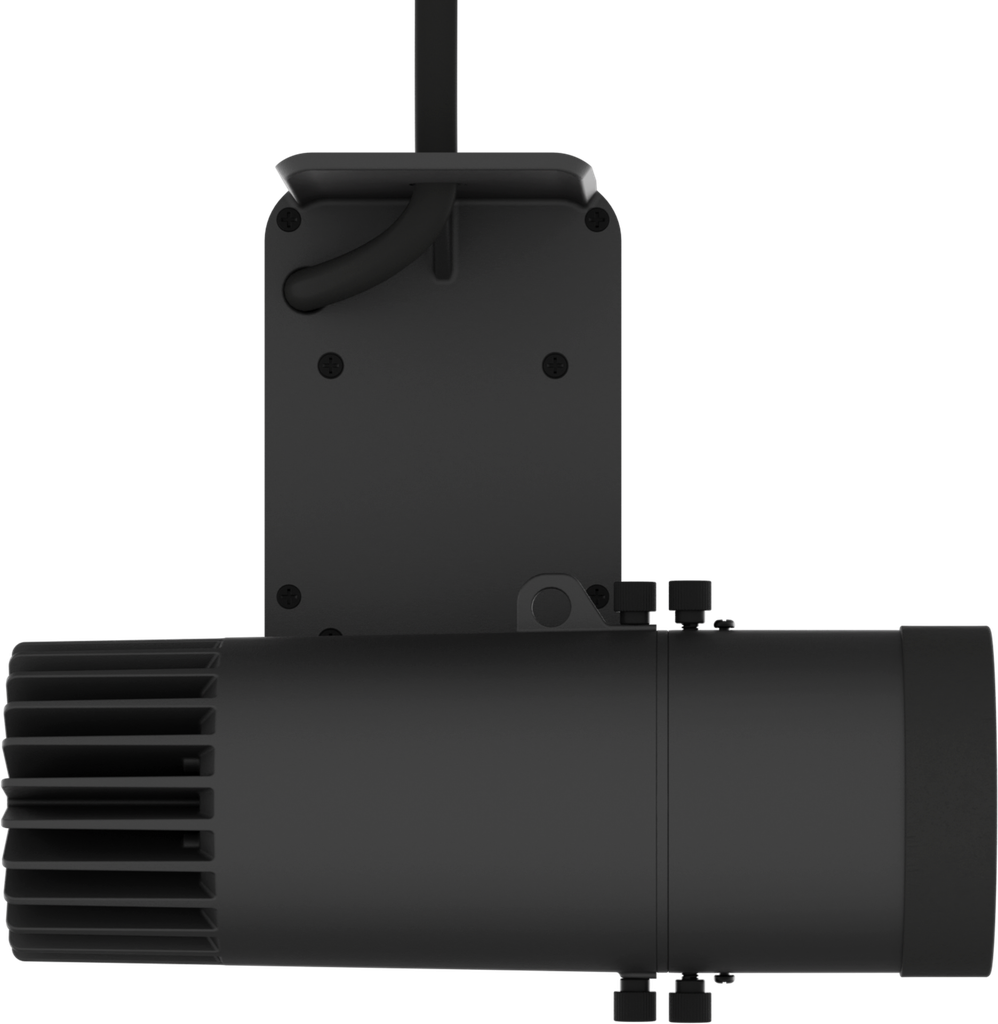

EclDisplay is a range of revolutionary and flexible LED spotlights designed for galleries, retail and any public venue where an advanced but classical looking fixture is needed, with several control options, sources and optic versions available to precisely meet any application. The EclDisplay CCFC is the version of the EclDisplay range made to be connected to an external Constant Current PSU and driver (max 4 x 1.4A/4.5V), selecting among the PROLIGHTS accessories or any third-party compatible component, leaving to System Integrators to install this luminaire in venues with their own wiring distribution and control. EclDisplay CCFC includes a high-efficiency 40W RGB + Warm White LED capable of delivering both a Full Colour spectrum and also tuneable White, and it is completed with a wide selection of optional profile (zoom and static) or wash lenses, and other optical accessories like louvres and snoots, making it a truly a multi-purpose fixture.

Constant Current version to be connected to external PSU and driver (max 4 x 1.4A/4.5V)

40W RGB + Warm White LED capable to deliver both a Full Colour generation and also Tunable White

Multiple lens options: profile (zoom and static) or wash optics

Features:
Constant Current version to be connected to external PSU and driver (max 4 x 1.4A/4.5V)
40W RGB + Warm White LED capable to deliver both a Full Colour generation and also Tunable White
Multiple lens options: profile (zoom and static) or wash optics

LIGHT SOURCE

Source:

40
W

RGB + Warm White LED
Luminous flux:

(profile 2040 - min) 388 lm - (profile 2040 - max) 344 lm; (wash 2550 - min) 357 lm - (wash 2550 - max) 466 lm; (wash 1530 - min) 363 lm - (wash 1530 - max) 402

@Full
Lux:

(profile 2040 - min) 194 lx - (profile 2040 max) 44 lx; (wash 2550 - min) 57 lx - (wash 2550 - max) 23 lx; (wash 1530 - min) 143 lx - (wash 1530 - max) 68
lx

@5 m full
Source life expectancy:

> 50.000 hrs (L70B10 @Ta 25° C / 77° F)

OPTICS

Zoom range:

(wash lens - optional) 15° ~ 30° or 25° ~ 50° - (profile lens - optional) 10° ~ 20° or 20° ~ 40° or fix 8
°
Other:

360° lens rotation - shutter blades lockable - optional 360° rotating barndoors and gel frame holder
Other:

(profile lens) shutter blades lockable
Other:

(profile lens - optional) manual rotating gobo holder size E, outer: 37 mm - image: 23 mm - thickness: max 3 mm
