ECLCTPLUSBK
Share this product

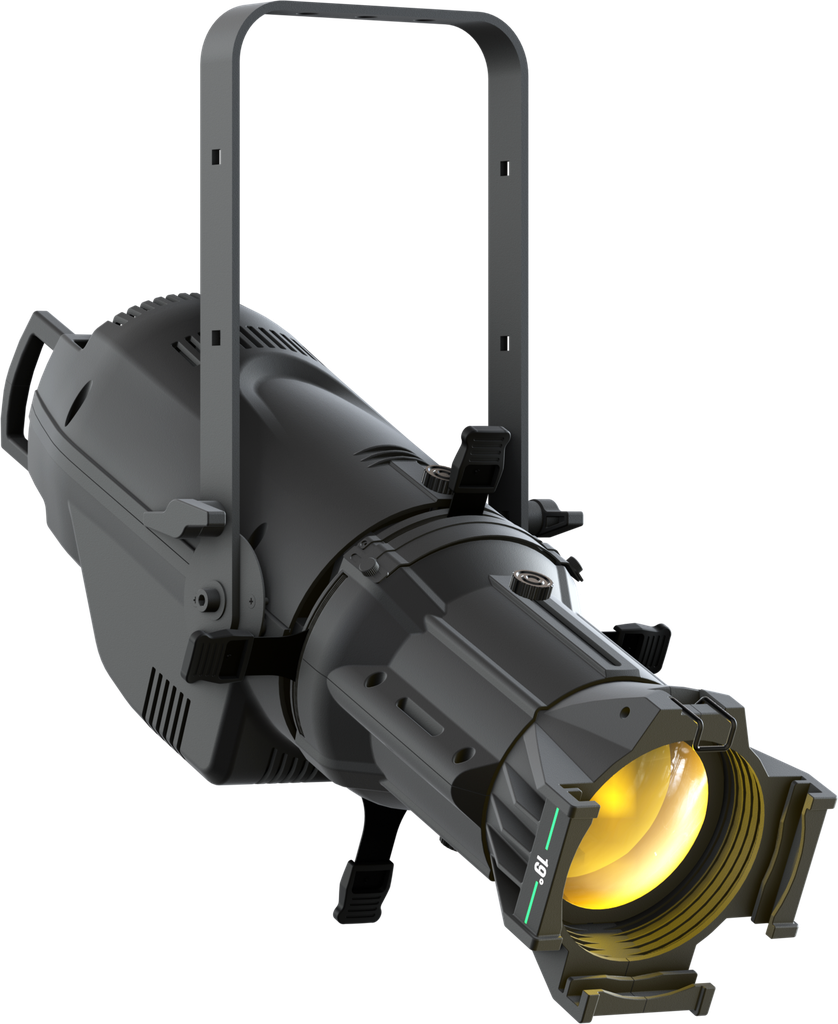

Prolights ECLCTPLUSBK

LED ellipsoidal, 96x3W six colours mixing, HQ tunable whites and colours, black

0.00 AED 0.00 AED

View on Manufacturer Website

Product Description

EclProfile CT+ is a high quality, six colour mixing LED ellipsoidal.

Designed to reach the finest quality of light for white tones and colour spectrum, its custom LED array and powerful on-board colour control allows to reach bright and high-quality whites, up to 97 of CRI, keeping a consistent output and ensuring a total control of the light.

The wide feature set includes special theatrical functions such as tungsten emulation on dimming, colour gels, virtual CTO and studio  functions, such as +/- green correction on linear white CCT.

  • Linear white CCT from 2.800 K to 10.000 K with CRI up to 97.
  • RGB / CMY / HSI / XY / RAW colours control of the six colours LED array for easy access to any desired colour.
  • Industry standard colour gels matching, tungsten emulation on dimming, tint control (+/- green).

    • EclProfile CT+ is a high quality, six colour mixing LED ellipsoidal.

    Designed to reach the finest quality of light for white tones and colour spectrum, its custom LED array and powerful on-board colour control allows to reach bright and high-quality whites, up to 97 of CRI, keeping a consistent output and ensuring a total control of the light.

    The wide feature set includes special theatrical functions such as tungsten emulation on dimming, colour gels, virtual CTO and studio  functions, such as +/- green correction on linear white CCT.

    Features:
    Linear white CCT from 2.800 K to 10.000 K with CRI up to 97.
    RGB / CMY / HSI / XY / RAW colours control of the six colours LED array for easy access to any desired colour.
    Industry standard colour gels matching, tungsten emulation on dimming, tint control (+/- green).

    LIGHT SOURCE
    • Source:
      Luxeon-C; 96x3
      W
      6 colour custom LEDs source (red, green, blue, royal blue, mint, pc amber)
    • Source CCT:
      @full 5.000
      K
    • Luminous flux:
      (5°) 3'805 lm; (10°) 4'790 lm; (14°) 5'047 lm; (19°) 5'380 lm; (26°) 6'681 lm; (36°) 6'814 lm; (50°) 5'773 lm; (70°) 7'430
      @Full
    • Luminous flux:
      (zoom 15°-30°) (min angle) 5'290 lm; (max angle) 6'664 lm - (zoom 25°-50°) (min angle) 7'042 lm; (max angle) 9'817
      @Full
    • Lux:
      (5°) 14'638 lx; (10°) 8'663 lx; (14°) 3'812 lx; (19°) 2'530 lx; (26°) 1'759 lx; (36°) 810 lx; (50°) 474 lx; (70°) 306
      lx
      @5 m full
    • Lux:
      (zoom 15°-30°) (min angle) 3'502 lx; (max angle) 1'800 lx - (zoom 25°-50°) (min angle) 2'608 lx; (max angle) 974
      lx
      @5 m full
    • CRI:
      93,7 @3.200 K; 97,6 @5.600 K
    • R9:
      98,6 @3.200 K; 98,2 @5.600 K
    • TLCI:
      95 @5.600 K
    • TM30 Rf:
      92 @5.600 K
    • TM30 Rg:
      100,1 @5.600 K
    • Source life expectancy:
      > 50.000 h
    OPTICS
    • Lens type:
      high-quality glass lens optics
    • Additional optics:
      optional 5° / 10° / 14° / 19° / 26° / 36° / 50° / 70° / 90° zoom 15°-30° / zoom 25°-50°
    • Focus:
      manual
    • Other:
      see available accessories
    COLOUR SYSTEM
    • Colour mixing:
      RGB, Royal Blue, Mint, PC Amber
    • CCT:
      CCT control, + / - green correction, tungsten emulation
    • White presets:
      2.800 K ~ 10.000
      K
    DYNAMIC EFFECTS
    • Special features:
      4 fan modes available and output management and
      linear crossfade channel from any white to any colour; virtual CTO on colours
    GOBOS
    • Gobo size:
      (B size) 86 mm outer / 64.5 mm image / 1.1 mm thickness
    CONTROL
    • Supported Protocols:
      DMX512, RDM
    • DMX channels:
      UNO / DUO / Basic / Standard / Extended / RAW Direct / RAW 16bit / XY
      ch
    • RDM:
      for remote addressing and parameter configuration
    • Display:
      Graphic User Interface
    • Stand Alone:
      selection of static colours, white presets, manual colours and built-in effects with adjustable speed
    • Master/Slave:
      for synchronised operation of more units linked in a chain
    ELECTRONICS
    • Dimmer:
      linear 0 - 100% electronic dimmer
    • Dimmer curves:
      4
      selectable dimming modes available
    • Strobe / shutter:
      1 - 25
      Hz, electronic
    • Selectable PWM:
      600 to 25000 Hz (selectable steps)
    • Firmware upgrade:
      via DMX with UPBOXPRO/UPBOX2 (not included) through dedicated software
    CONNECTIONS
    • Power connection:
      Neutrik powerCON TRUE1 IN/OUT connectors
    • Signal connection:
      Amphenol XLR 5p IN/OUT connectors
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz
    • Max power consumption (230V):
      270
      W
    • Output (at 230V):
      9
      units on a single power line
    • Standby power:
      5W
    • Power factor:
      > 0,95
    PHYSICAL
    • IP rating:
      IP20
    • Cooling:
      low-noise fan
    • Housing:
      Sturdy die-cast aluminium body
    • Finish:
      black (RAL 9004)
    • Operating temperature:
      Ta
      -20 to +45 °C (-4 to +113 °F)
    • Dimensions (WxHxD):
      264x259x539
      mm
    • Weight:
      7,9
      kg
    INSTALLATION
    • Suspension and fixing:
      bracket for hanging and positioning
    CERTIFICATIONS / REPORTS
    • Compliance:
      CE, UKCA, RCM, cTUVus, FCC
