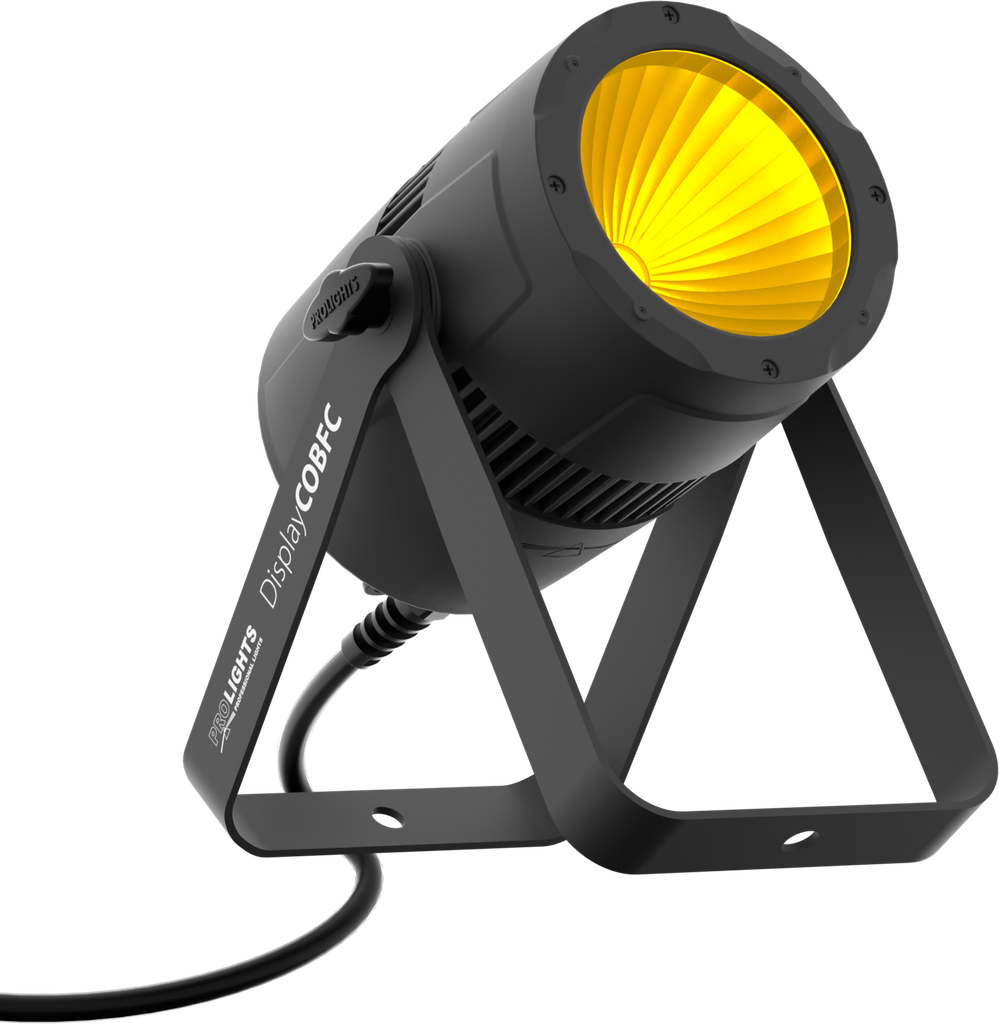

DisplayCob FC is the compact version of the popular StudioCob FC - perfect for an installation or indoor venues. DisplayCob FC uses a 60 W COB LED source RGB / FC, combined with a special parabolic reflector built in aluminium which develops an extremely bright and homogeneous output and interchangeable lens system to switch from 60° (incl.) to 30° (incl.) and 15° (opt.).
DisplayCob FC is the compact version of the popular StudioCob FC - perfect for an installation or indoor venues. DisplayCob FC uses a 60 W COB LED source RGB / FC, combined with a special parabolic reflector built in aluminium which develops an extremely bright and homogeneous output and interchangeable lens system to switch from 60° (incl.) to 30° (incl.) and 15° (opt.).
Features:Compact LED Par with 60W full colour COB source
HD dimming and an extensive, even colour palette
Flexible lens options of 15° - 30° - 60° and functional barn doors
- Source:60WRGB COB LED
- Luminous flux:1'726
- Lux:(60°) 223lx@3 m full
- Lux:(30°) 573lx@3 m full
- Source life expectancy:> 50.000 hrs (L70B10 @Ta 25° C / 77° F)
- Beam angle:60°
- Field angle:80°
- Lens type:parabolic reflector in combination with HD fresnel lens
- Additional optics:30° (inc) - 15° (opt)
- Colour mixing:RGB / FC
- White presets:3.200 K ~ 10.000K
- Colour wheel:virtual colour wheel with macros
- Macros:built-in white presets
- Static mode:selection of static colour
- Manual mode:manual adjustment of colour
- Auto mode:built-in programs with execution speed adjustment
- Supported Protocols:DMX512
- DMX channels:3 / 5 / 8ch
- Display:Graphic User Interface
- Master/Slave:for synchronised operation of more units linked in a chain
- Dimmer:linear 0 - 100% electronic dimmer
- Dimmer curves:4selectable dimming modes available
- Strobe / shutter:1 - 28Hz, electronic
- Selectable PWM:600 to 25000 Hz (selectable steps)
- Firmware upgrade:via DMX with UPBOXPRO/UPBOX1 (not included)
- Power connection:moulded IP power IN connector
- Signal connection:XLR 5p IN/OUT connectors
- Mains power supply:100-240V - 50/60Hz
- Max power consumption (230V):75W
- Output (at 230V):24units on a single power line
- Max power consumption (120V):70W
- IP rating:IP20
- Cooling:fan-free with natural convection
- Housing:Sturdy die-cast aluminium body
- Finish:black
- Operating temperature:Ta-10 to +45 °C (+14 to +113 °F)
- Dimensions (WxHxD):166x118x250mm
- Weight:1,85kg
- Suspension and fixing:double hanging bracket suitable for safe hanging and for floor positioning
- Compliance:CE, UKCA, RCM
