DISPLAYCOBDY
Share this product

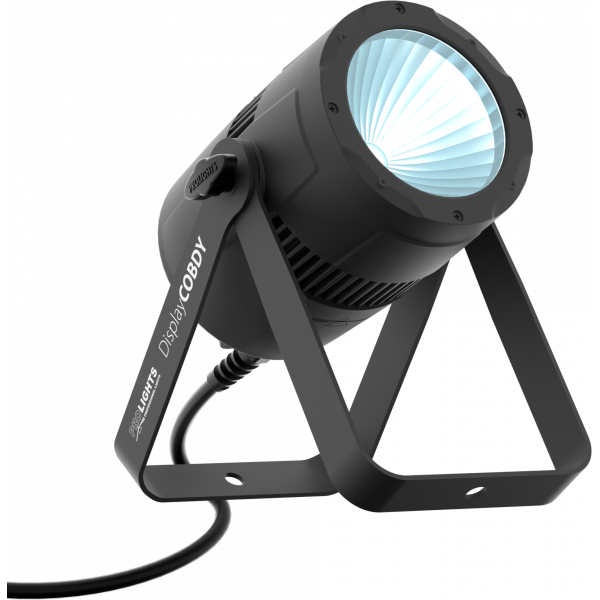

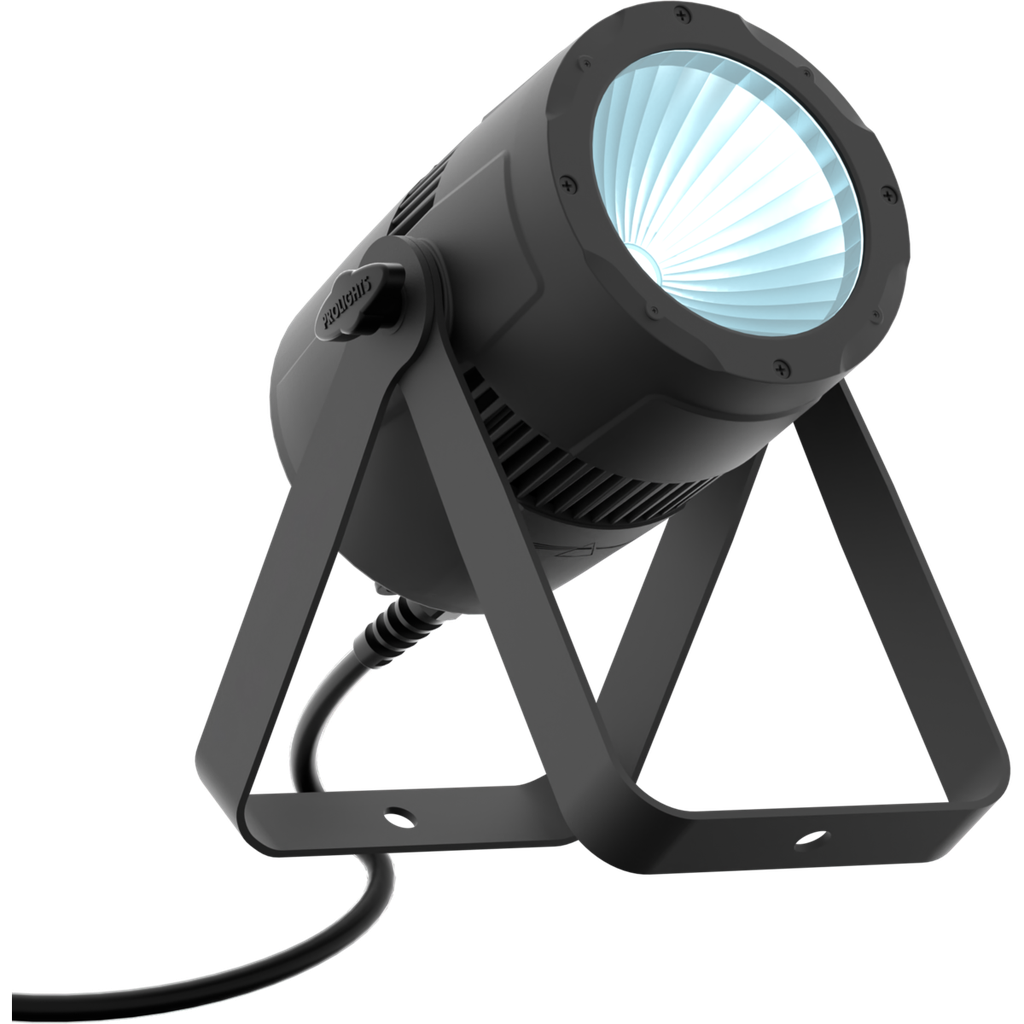

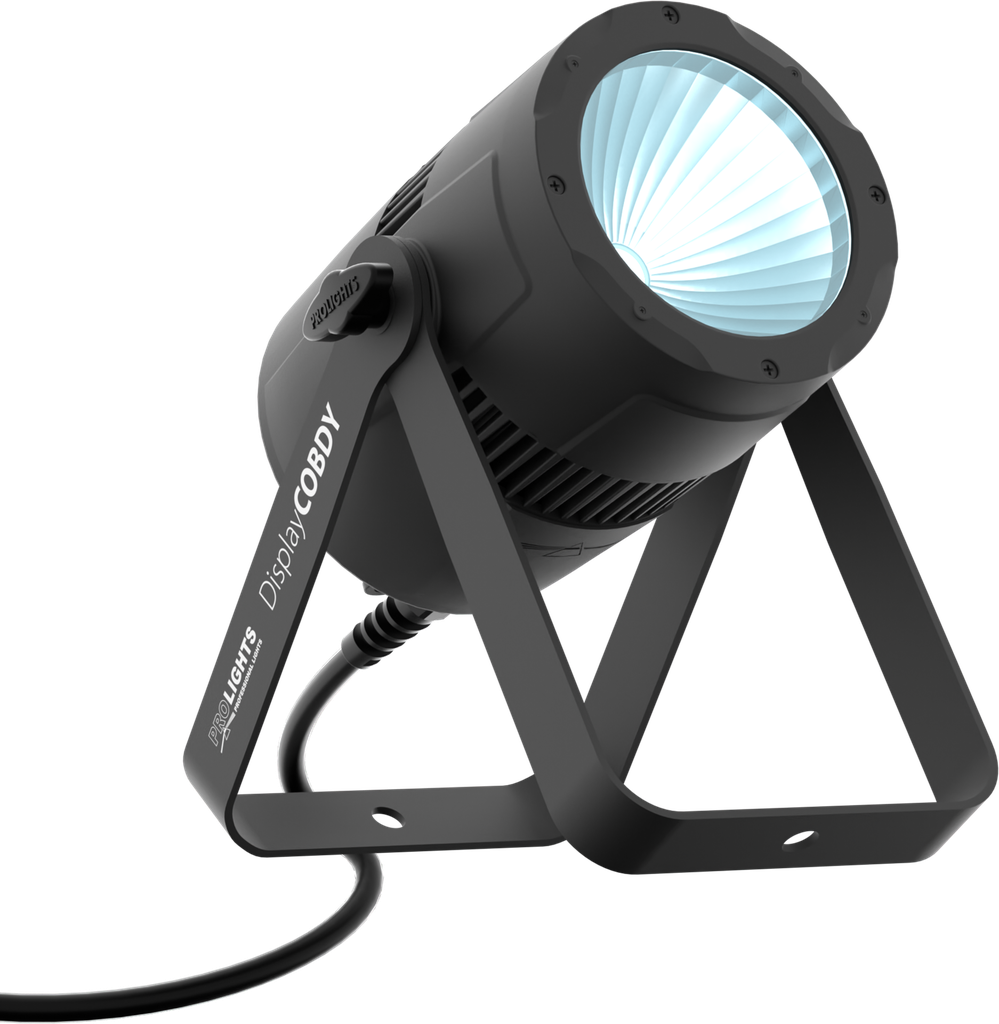

Prolights DISPLAYCOBDY

1x45W CW COB CREE LED 5000K projector, beam angle 60°, IP20, 55W, 1,85 kg

0.00 AED 0.00 AED

View on Manufacturer Website

Product Description

DisplayCob DY is the compact version of the popular StudioCob DY - perfect for an installation or indoor venues. DisplayCob DY uses a 45W COB LED source daylight white 5.000 K, combined with a special parabolic reflector built in aluminium which develops an extremely bright and homogeneous output of 91 CRI and interchangeable lens systems to switch from 60° (incl.) to 30° (incl.) and 15° (opt.).

  • Compact LED PAR with high CRI 45W cold white COB source
  • HD dimming and an extensive and even colour palette.
  • Flexible lens options of 15° - 30° - 60° and functional barn doors

    • DisplayCob DY is the compact version of the popular StudioCob DY - perfect for an installation or indoor venues. DisplayCob DY uses a 45W COB LED source daylight white 5.000 K, combined with a special parabolic reflector built in aluminium which develops an extremely bright and homogeneous output of 91 CRI and interchangeable lens systems to switch from 60° (incl.) to 30° (incl.) and 15° (opt.).

    Features:
    Compact LED PAR with high CRI 45W cold white COB source
    HD dimming and an extensive and even colour palette.
    Flexible lens options of 15° - 30° - 60° and functional barn doors

    LIGHT SOURCE
    • Source:
      45
      W
      White COB LED
    • Source CCT:
      5.000
      K
    • Luminous flux:
      (30°) 2'651 - (60°) 2'684
      @Full
    • Lux:
      (30°) 313
      lx
      @5 m full
    • Lux:
      (60°) 120
      lx
      @5 m full
    • CRI:
      >91
    • R9:
      >58
    • TLCI:
      >91
    • TM30 Rf:
      >88
    • TM30 Rg:
      >98
    • Source life expectancy:
      > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
    OPTICS
    • Beam angle:
      60
      °
    • Field angle:
      80
      °
    • Lens type:
      parabolic reflector in combination with HD fresnel lens
    • Additional optics:
      30° (inc) - 15° (opt)
    DYNAMIC EFFECTS
    • Static mode:
      selection of static colour
    • Manual mode:
      manual adjustment of dimmer and strobe
    • Auto mode:
      built-in programs with execution speed adjustment
    CONTROL
    • Supported Protocols:
      DMX512
    • DMX channels:
      1 / 2 / 5
      ch
    • Display:
      Graphic User Interface
    • Master/Slave:
      for synchronised operation of more units linked in a chain
    ELECTRONICS
    • Dimmer:
      linear 0 - 100% electronic dimmer
    • Dimmer curves:
      4
      selectable dimming modes available
    • Strobe / shutter:
      1 - 28
      Hz, electronic
    • Selectable PWM:
      600 to 25000 Hz (selectable steps)
    • Firmware upgrade:
      via DMX with UPBOXPRO/UPBOX1 (not included)

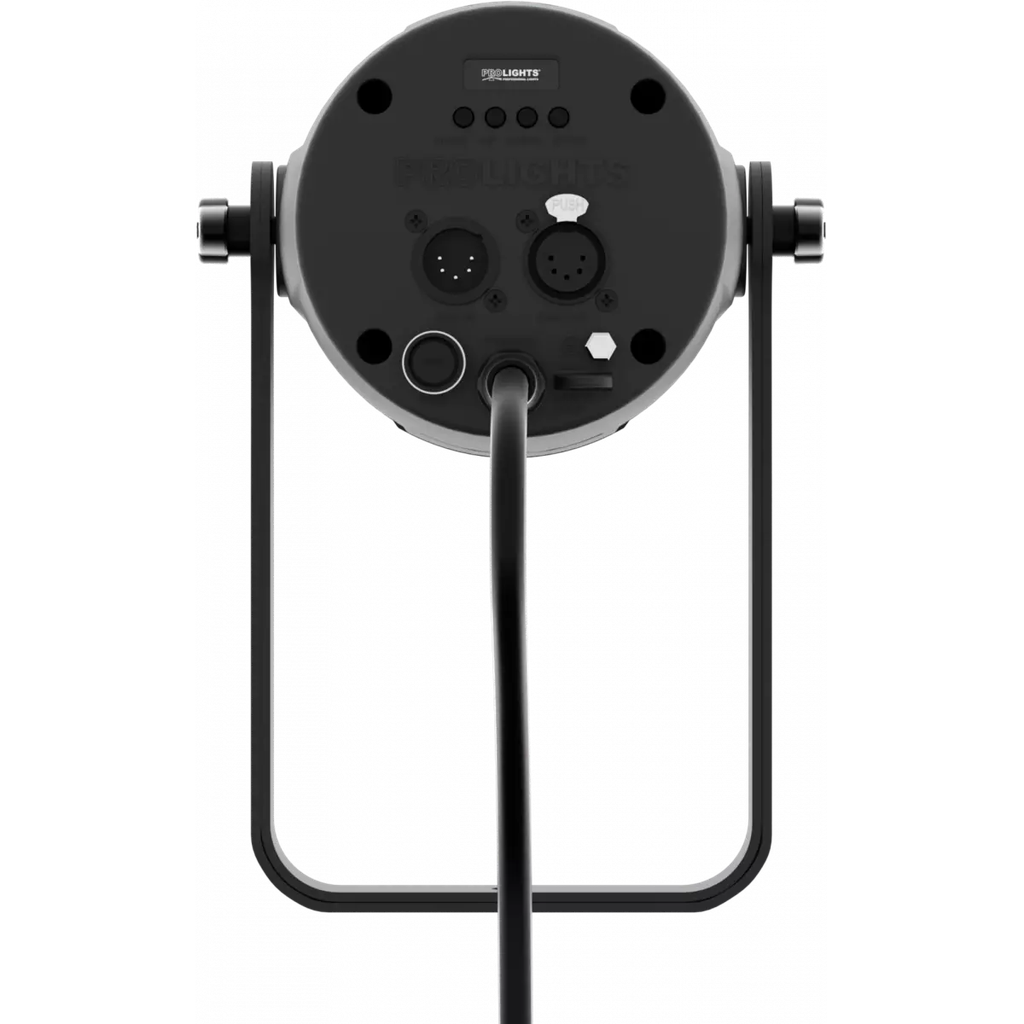

    CONNECTIONS
    • Power connection:
      moulded IP power IN connector
    • Signal connection:
      XLR 5p IN/OUT connectors
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz
    • Max power consumption (230V):
      54
      W
    • Output (at 230V):
      29
      units on a single power line
    • Power factor:
      >0,98
    PHYSICAL
    • IP rating:
      IP20
    • Cooling:
      fan-free with natural convection
    • Housing:
      Sturdy die-cast aluminium body
    • Finish:
      black
    • Operating temperature:
      Ta
      -10 to +45 °C (+14 to +113 °F)
    • Dimensions (WxHxD):
      166x118x250
      mm
    • Weight:
      1,85
      kg
    INSTALLATION
    • Suspension and fixing:
      double hanging bracket suitable for safe hanging and for floor positioning
    CERTIFICATIONS / REPORTS
    • Compliance:
      CE, UKCA, RCM
