Prolights DIGISTRIPIP100

شريط LED بكسل مابينغ، 100x0.25W LED RGB/FC، ArtNet 300ch، IP65،

بالعرض فقط

السعر عند الطلب

رمز المنتج: DIGISTRIPIP100
الفئة: بكسل مابينغ
العلامة التجارية: Prolights
التوصيل للطلبات التي تتجاوز 1,000 درهم
الضمان 2 سنوات
دفع آمن معاملات مشفرة وآمنة
دعم متخصص دعم ما قبل وما بعد البيع

استشر خبيراً

فريقنا جاهز لمساعدتك.

اتصل بنا

تحتاج عرض سعر؟

سنوفر لك تسعيرة مخصصة لمشروعك.

طلب عرض سعر

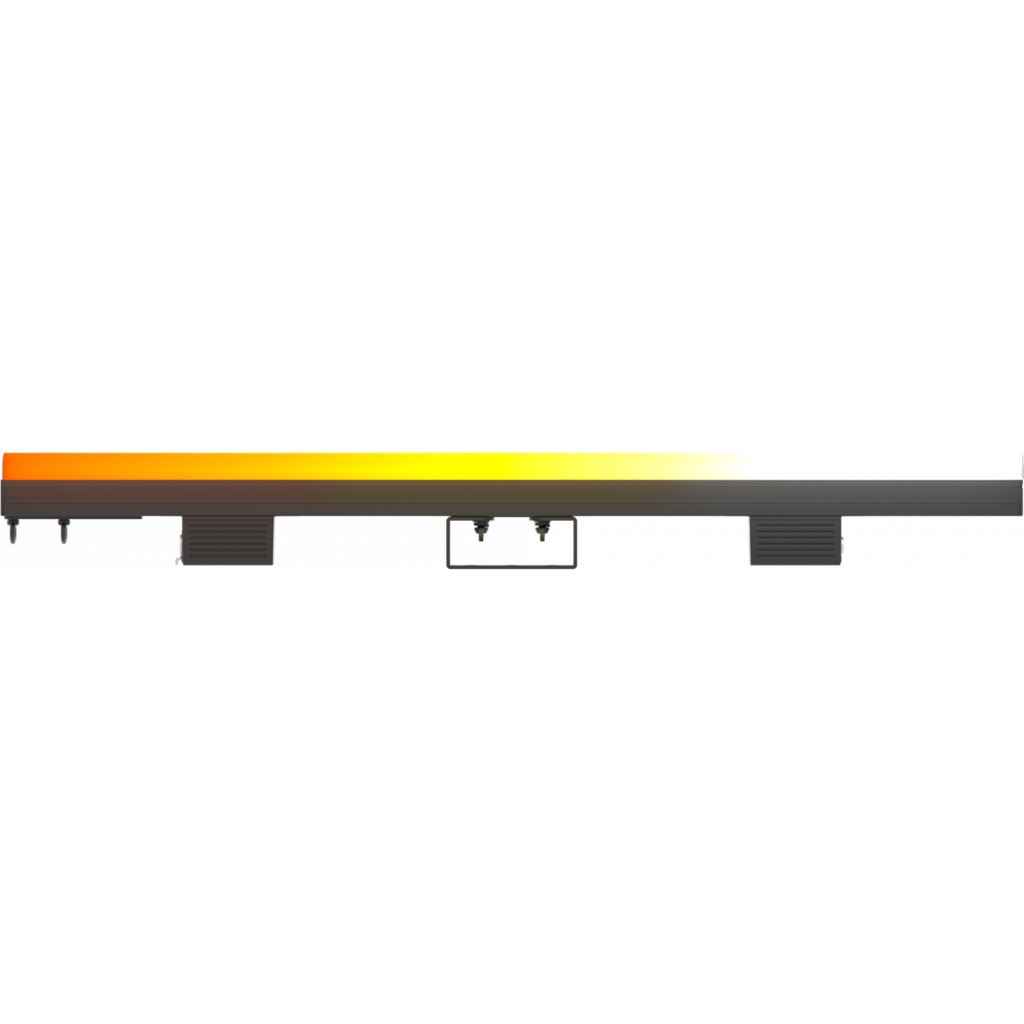

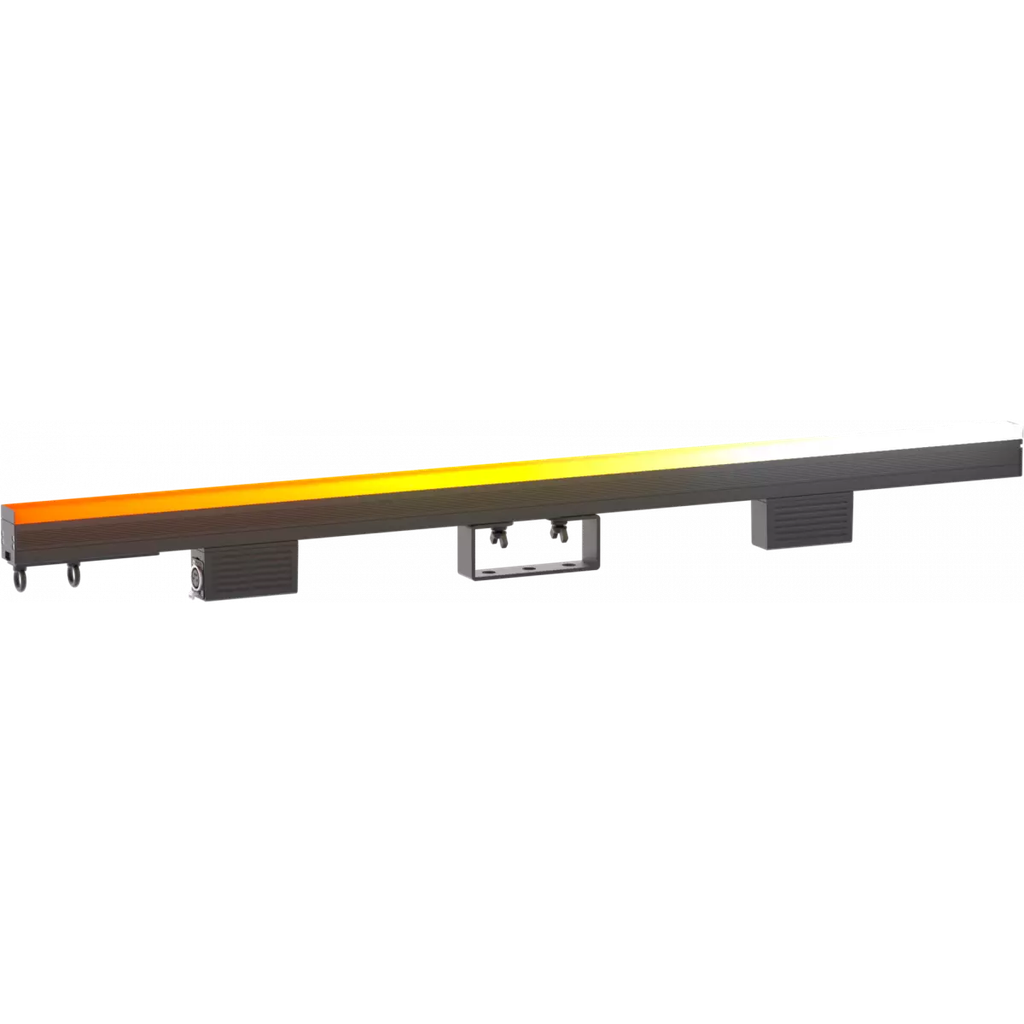

DigiStrip IP100 is a linear LED 10 mm pixel pitch video fixture for the rental market with an extensive range of optical accessories for a wide variety of looks (black and white and transparent). Each 1 meter long strip features 100 RGB / FC LEDs with individual pixel control and a 100° viewing angle. The mechanics of DigiStrip IP100 have been studied to grant greater mounting flexibility by adding sliding hardware on the back for truss application and on the side for multiple vertical linking. The external control unit DigiDriver IP is compatible with Art-Net and Kling-Net protocol and runs both signal and power over a 4 pole cable that provides greater stability and connection in a daisy chain (up to 20 DigiStrip IP100)

  • High-resolution IP65 rated video pixel batten, featuring 100 LEDs in a row
  • Several optional optical filters delivering a wide range of different looks and finishes
  • Easy setup and wiring through the DigiDriver IP
  • DigiStrip IP100 is a linear LED 10 mm pixel pitch video fixture for the rental market with an extensive range of optical accessories for a wide variety of looks (black and white and transparent). Each 1 meter long strip features 100 RGB / FC LEDs with individual pixel control and a 100° viewing angle. The mechanics of DigiStrip IP100 have been studied to grant greater mounting flexibility by adding sliding hardware on the back for truss application and on the side for multiple vertical linking. The external control unit DigiDriver IP is compatible with Art-Net and Kling-Net protocol and runs both signal and power over a 4 pole cable that provides greater stability and connection in a daisy chain (up to 20 DigiStrip IP100)

    Features:
    High-resolution IP65 rated video pixel batten, featuring 100 LEDs in a row
    Several optional optical filters delivering a wide range of different looks and finishes
    Easy setup and wiring through the DigiDriver IP

    LIGHT SOURCE
    • Source:
      100x0,25
      W
      RGB LEDs
    • Luminous flux:
      without cover: 542 lm - black cover: 81 lm - flat white cover: 319 lm - dome white cover: 351
      @Full
    • Lux:
      without cover: 7 lx - black cover: 1 lx - flat white cover: 3 lx - dome white cover: 2
      lx
      @5 m full
    • Other:
      view angle 100° - driver chip MBI 5043
    • Source life expectancy:
      > 50.000 h
    OPTICS
    • Pixel pitch:
      10
      mm
    • Additional optics:
      black cover and white dome cover (included)
    • Other:
      flat white cover (included)
    COLOUR SYSTEM
    • Colour mixing:
      RGB / FC
    CONTROL
    • Supported Protocols:
      Art-Net, sACN, Kling-Net
    • Control units:
      20 pcs power & signal under 1 pc DIGIDRIVERIP
    • Art-Net channels:
      300
      ch
    • Pixel control:
      pixel2pixel control
    CONNECTIONS

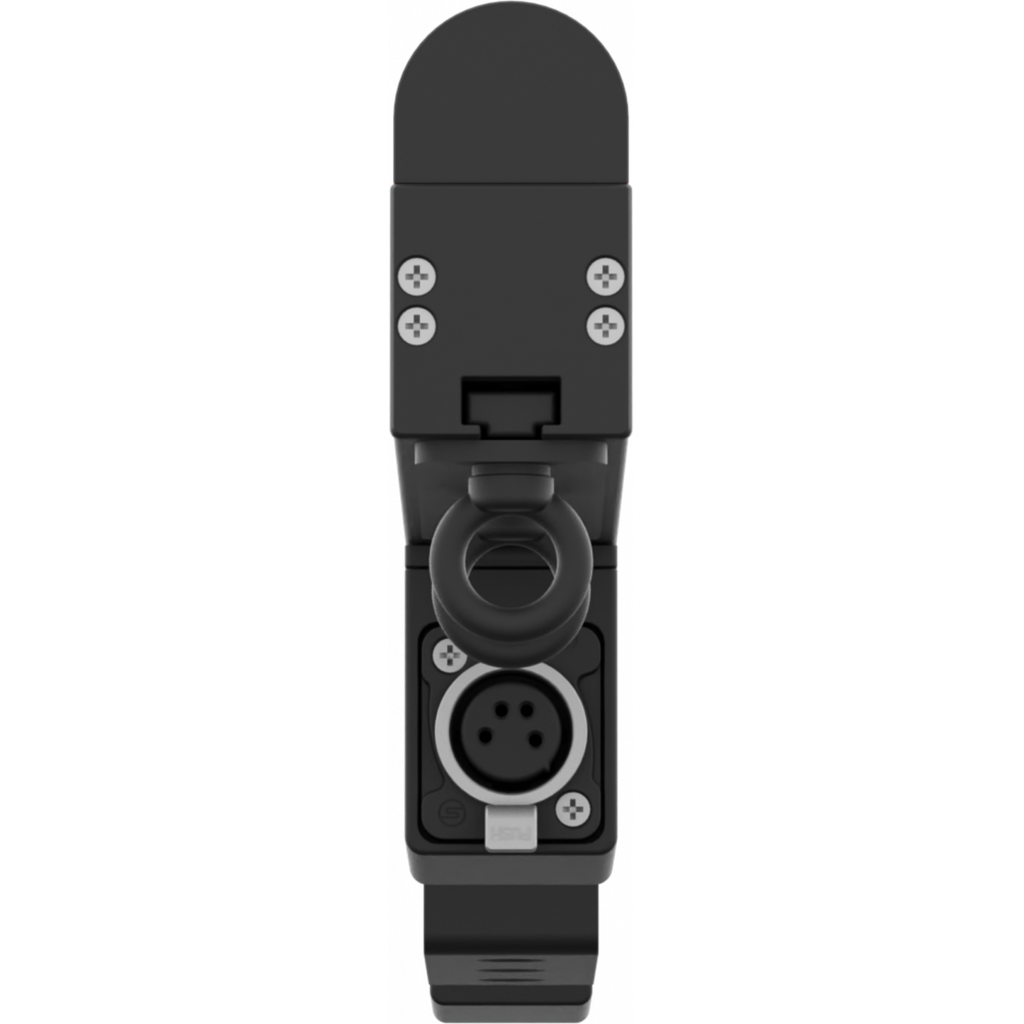

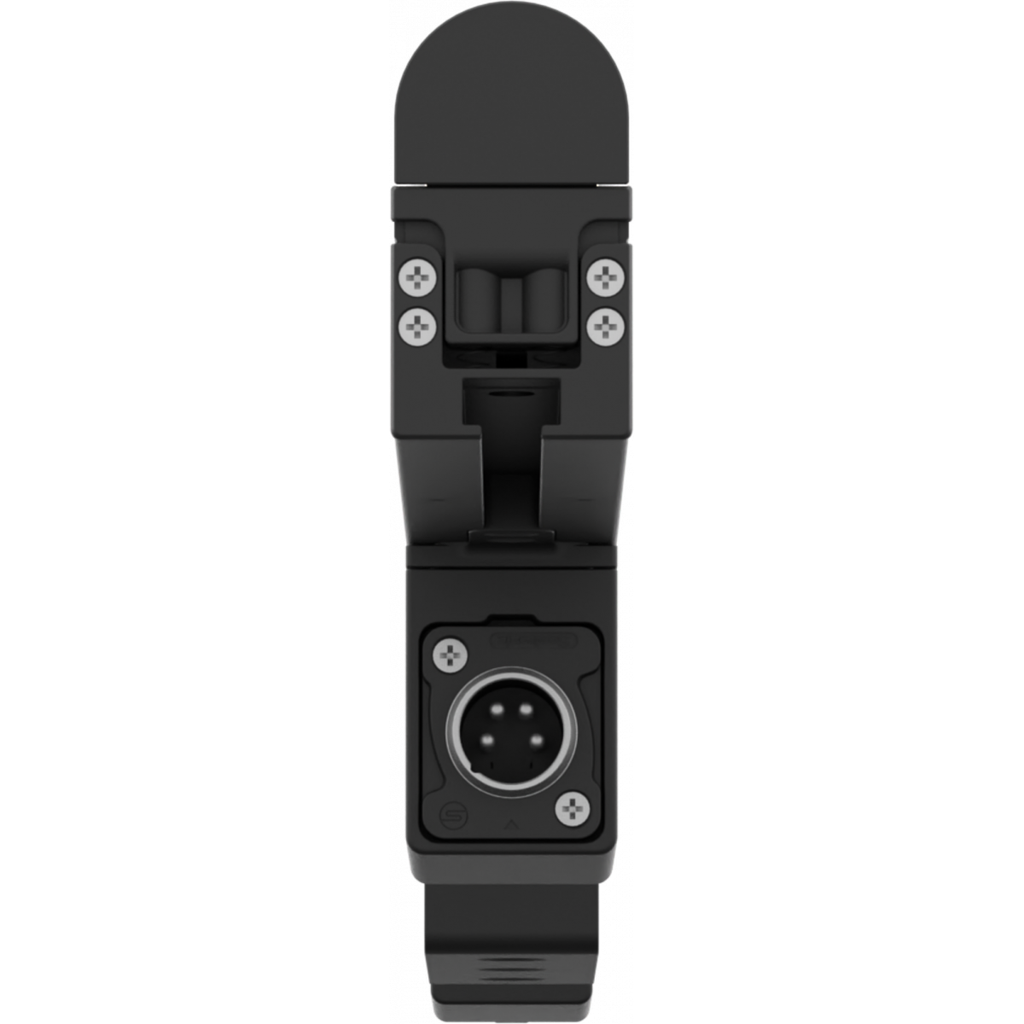

    • Signal connection:
      Seetronic XLR 4p IN/OUT connectors
    ELECTRICAL
    • Mains power supply:
      DC 48V
    • Max power consumption (230V):
      25
      W
    PHYSICAL
    • IP rating:
      IP65 for temporary outdoor use
    • Housing:
      Sturdy aluminium profile
    • Finish:
      black
    • Dimensions (WxHxD):
      1000x36x128
      mm
    • Weight:
      2,7
      kg
    INSTALLATION
    • Suspension and fixing:
      bracket for truss rigging and hardware for connection of more units
    • Hardware on-board:
      on board mechanics for modular assembly of multiple fixtures
    CERTIFICATIONS / REPORTS
    • Compliance:
      CE, UKCA
