Product Description

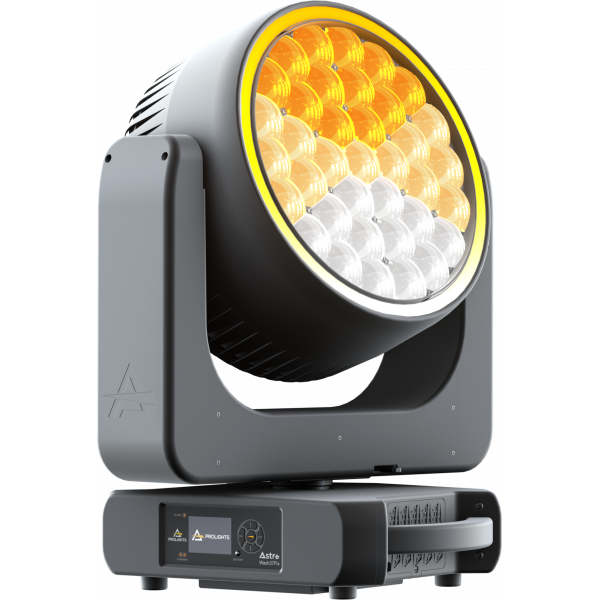

The Astra Wash37PIX is a powerful LED moving wash light, designed for large stages, arena tours and venues.
The 37x40W Osram RGBW LED light source, plus the exterior pixel ring, make this fixture the most powerful LED wash in its class. The unit features an extremely high-efficiency optical system capable of zooming from 4° to 54°, creating beautiful convergence in-air effects and smooth wash spreads.
The Astra Wash37PIX is single pixel controllable, with multiple on-board effects, and allows access to a precise and advanced white and colour control, all through DMX, CRMX+W-DMX, Art-Net, sACN, Kling-Net and RDM.
The Astra Wash37PIX is a powerful LED moving wash light, designed for large stages, arena tours and venues.
The 37x40W Osram RGBW LED light source, plus the exterior pixel ring, make this fixture the most powerful LED wash in its class. The unit features an extremely high-efficiency optical system capable of zooming from 4° to 54°, creating beautiful convergence in-air effects and smooth wash spreads.
The Astra Wash37PIX is single pixel controllable, with multiple on-board effects, and allows access to a precise and advanced white and colour control, all through DMX, CRMX+W-DMX, Art-Net, sACN, Kling-Net and RDM.
Features:Silent operation, smooth and fast movements
Zoom from 4° to 54° with high optical efficiency
Pixel and ring control, precise white CCT, multiple FX and colour features
- Source:37x40WRGBW Osram Ostar LEDs
- Luminous flux:(4°) 8'452 lm - (54°) 17'898@Full
- Lux:(4°) 73'522 lx - (54°) 2'140lx@5 m full
- Other:outer RGB pixel ring with frost film
- Source life expectancy:> 50.000 hrs (L70B10 @Ta 25° C / 77° F)
- Zoom range:4° - 54°motorised linear zoom
- Lens type:honeycomb gapless plano-convex optics
- Additional optics:diffuser on outer pixel ring
- Colour mixing:RGBW / FC
- CCT:CCT control, + / - green correction, tungsten emulation
- White presets:2.800 K ~ 10.000K
- Colour wheel:virtual colour wheel with macros
- Control Resolution:16-bit dimmer and color control
- Pixel patterns:pre-programmed static and dynamic pixel patterns
- FX generator:adjustable foreground/background colour, index, speed, direction
- Special features:outer RGB, pixel ring with several built in FX macros andlinear crossfade channel from any white to any colour; virtual CTO on colours
- Supported Protocols:DMX512, RDM, Art-Net, Klingnet, sACN, W-DMX
- DMX channels:main personality 23 / 30 / 44 / 52ch
- Pixel control:OFF, ring and pixel2pixel
- RDM:for remote addressing and parameter configuration
- Display:LCD high resolution colour display with autoflip
- Pan:540°- 16-bit resolution
- Tilt:233°- 16-bit resolution
- Position feedback:automatic repositioning after external movement
- Pan / tilt lock:for transport and maintenance
- Dimmer:linear 0 - 100% electronic dimmer
- Dimmer curves:4selectable dimming modes available
- Strobe / shutter:1 - 30Hz, electronic
- Display battery:included, self-charging battery backup
- Selectable PWM:600 to 50000 Hz (selectable steps)
- Firmware upgrade:via DMX with UPBOXPRO/UPBOX2 (not included)
- Power connection:Neutrik powerCON TRUE1 IN/OUT connectors
- Signal connection:Amphenol XLR 5p IN/OUT connectors
- Wireless Connection:integrated LumenRadio TiMo FX RDM - CRMX and W-DMX compatible
- Data connection:Neutrik Art-NetRJ45 IN/OUT
- Mains power supply:100-240V - 50/60Hz
- Max power consumption (230V):1227W
- Standby power:49.5W
- Power factor:> 0,97
- IP rating:IP20
- Cooling:filtered forced-air with low-noise fan
- Housing:Aluminium structure with high-resistance polycarbonate cover
- Finish:black (RAL 9004)
- Operating temperature:Ta-10 to +40 °C (+14 to +104 °F)
- Dimensions (WxHxD):520x644x310mm
- Weight:26,4kg
- Suspension and fixing:any position with quick-lock omega brackets
- Hardware on-board:sockets for quick-Lock Omega bracket (clamp not included)
- Compliance:CE, UKCA, RCM, cTUVus, FCC
