Product Description

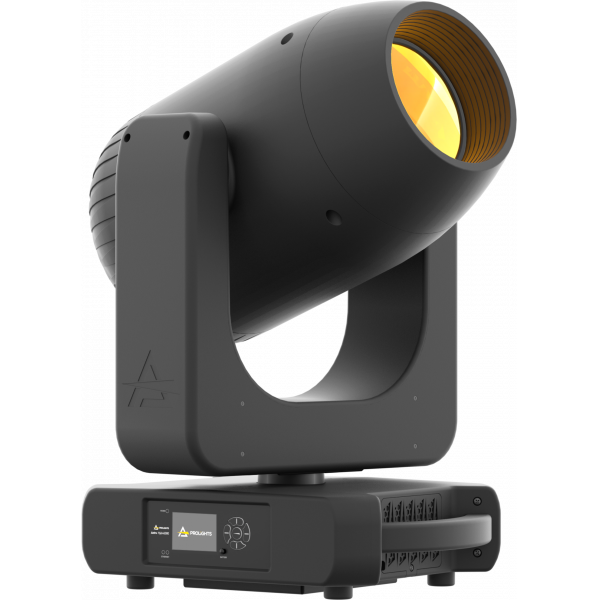

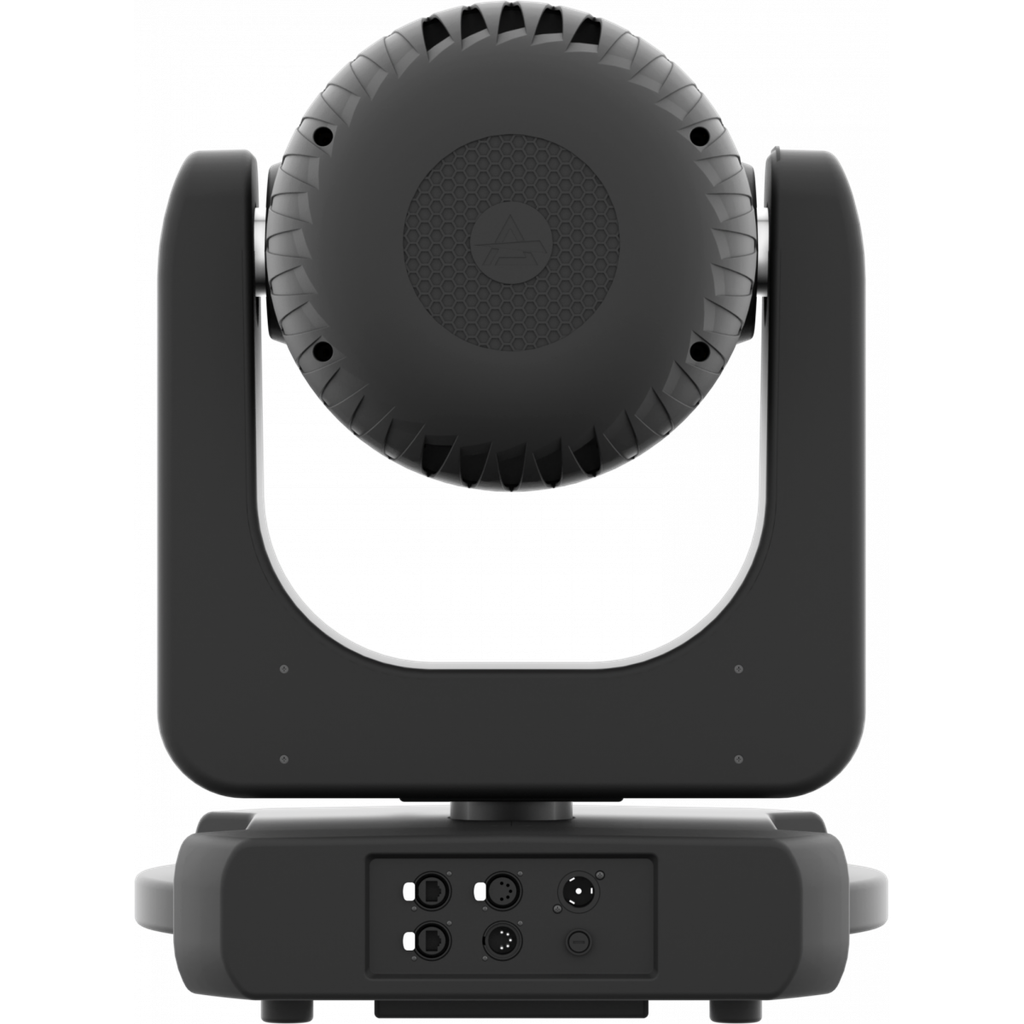

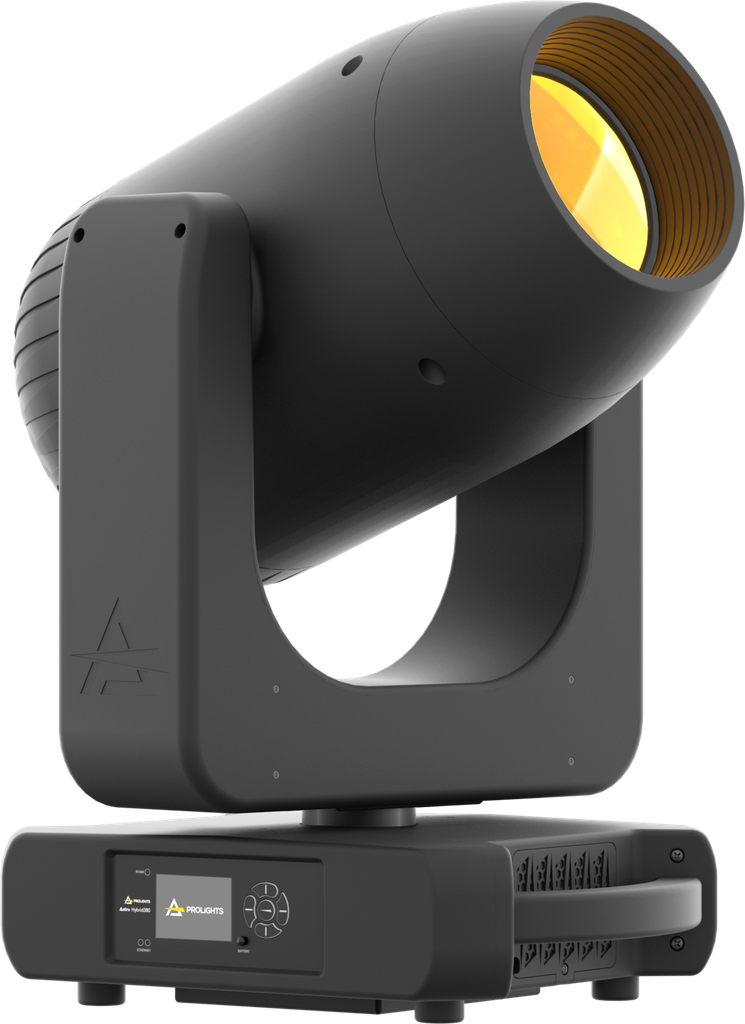

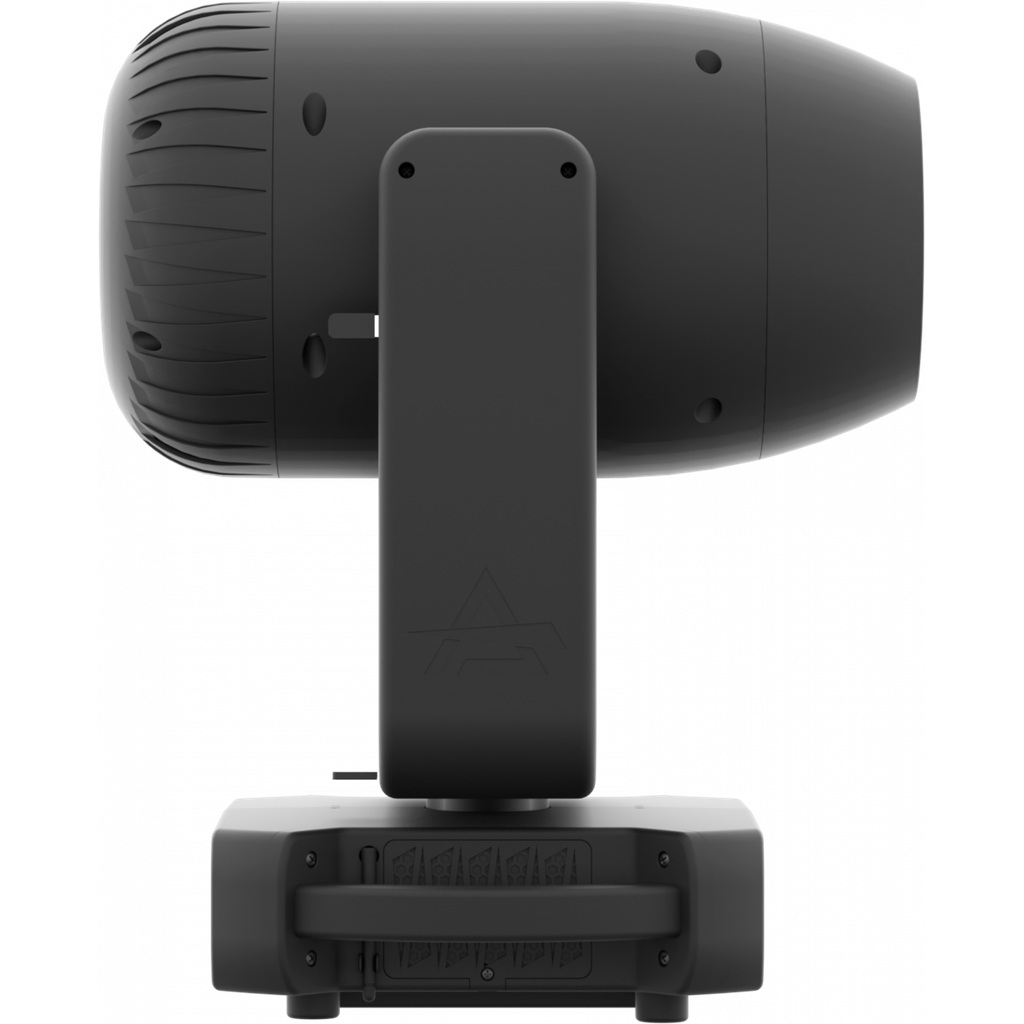

The Astra Hybrid420 is a hybrid moving head that excels as a bright beam fixture and perfect spotlight, offering a tremendous lumen output and superior evenness compared with other lights in the same category.
The Astra Hybrid420 optical system moves linearly from 2.7° to 40°, and it's equipped with a brand new 420W USHIO NSL421 lamp, featuring an equivalent output of higher power consumption units, but in a smaller, lighter, and faster body.
The extensive feature set of the Astra Hybrid420 includes functions like aerial effects with a fat and parallel beam and crisp projection textures and pattern effects, with linear CMY, three colour-wheels, an animation wheel, two overlapping prisms, frost and two gobo wheels.
The Astra Hybrid420 is a hybrid moving head that excels as a bright beam fixture and perfect spotlight, offering a tremendous lumen output and superior evenness compared with other lights in the same category.
The Astra Hybrid420 optical system moves linearly from 2.7° to 40°, and it's equipped with a brand new 420W USHIO NSL421 lamp, featuring an equivalent output of higher power consumption units, but in a smaller, lighter, and faster body.
The extensive feature set of the Astra Hybrid420 includes functions like aerial effects with a fat and parallel beam and crisp projection textures and pattern effects, with linear CMY, three colour-wheels, an animation wheel, two overlapping prisms, frost and two gobo wheels.
Features:Hybrid moving light equipped with a 420W USHIO NSL421 lamp
Linear zoom ranging from 2.7° to 40°
Linear CMY, animation wheel, 2 gobo wheels, 3 colour wheels, 2 overlapping prisms
- Source:420WUSHIO NSL421
- Source CCT:7.000K
- Luminous flux:35.815
- Lux:(2.7°) 127.339 lx - (40°) 862lx@15 m
- Source life expectancy:6.000 h
- Zoom range:2.7° - 40°motorised linear zoom
- Lens diameter:153mm
- Lens type:HD anti-reflection lenses with achromatic coating
- Focus:motorised 16-bit
- Colour mixing:CMY colour system on 3 gradually fading colour wheels
- CCT:on wheel 2.500 K and 3.200 K + CTB
- Colour wheel:15dichroic filters on 3 independent colour wheels
- Animation wheel:animation wheel with CW and CCW rotation
- FX generator:2prisms overlap for spectacular aerial effects
- Circular prism:8 f and 4-fwith bi-directional rotation, indexing
- Frost:linear 0-100%
- Rotating gobos:9rotating gobos + open, interchangeable, indexing
- Gobo size:outer: 15,9 mm - image: 12 mm - thickness: 1,1 mm
- Fixed gobos:18fixed gobos + open
- Supported Protocols:DMX512, RDM, Art-Net, sACN, W-DMX
- DMX channels:30ch
- RDM:for remote addressing and parameter configuration
- Display:LCD high resolution colour display with autoflip
- Other:16bit control of dimmer
- Pan:540°- 16-bit resolution
- Tilt:270°- 16-bit resolution
- Position feedback:automatic repositioning after external movement
- Pan / tilt lock:for transport and maintenance
- Dimmer:linear 0 - 100% mechanical dimmer
- Strobe / shutter:1 - 28flash(s), mechanical
- Display battery:included, self-charging battery backup
- Firmware upgrade:via menu with internal memory or via USB - DMX interface (UPBOXPRO/UPBOX2) not included
- Power connection:Neutrik powerCON TRUE1 IN connector
- Signal connection:Amphenol XLR 5p IN/OUT connectors
- Wireless Connection:integrated LumenRadio TiMo FX RDM - CRMX and W-DMX compatible
- Data connection:Neutrik Art-NetRJ45 IN/OUT
- Mains power supply:100-240V - 50/60Hz
- Max power consumption (230V):590W
- Standby power:96W
- Power factor:> 0,96
- IP rating:IP20
- Cooling:filtered forced-air with low-noise fan
- Housing:Aluminium structure with high-resistance polycarbonate cover
- Finish:black (RAL 9004)
- Operating temperature:Ta-10 to +45 °C (+14 to +113 °F)
- Dimensions (WxHxD):445x668x310mm
- Weight:26,2kg
- Suspension and fixing:any position with quick-lock omega brackets
- Hardware on-board:sockets for quick-Lock Omega bracket (clamp not included)
- Compliance:CE, UKCA, RCM, cTUVus, FCC
