ASTRAHYB330IP
Share this product

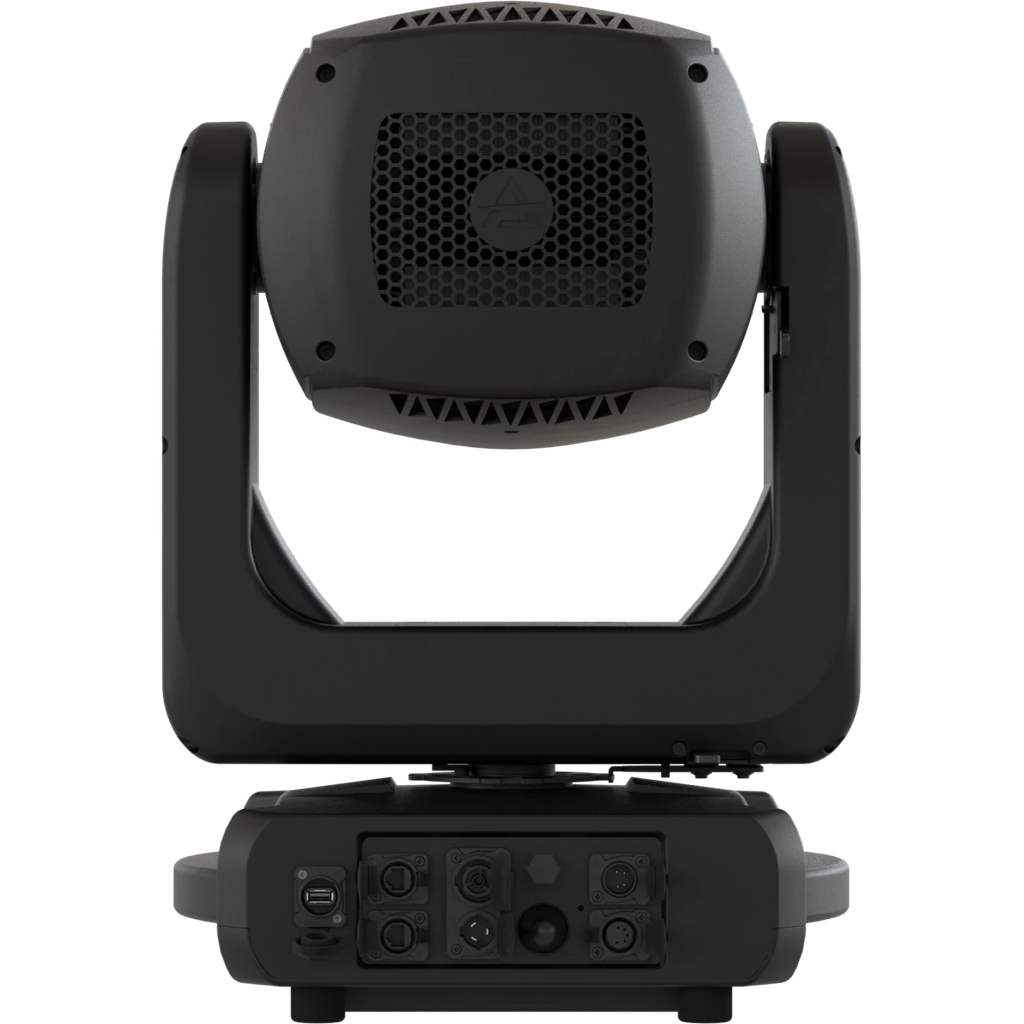

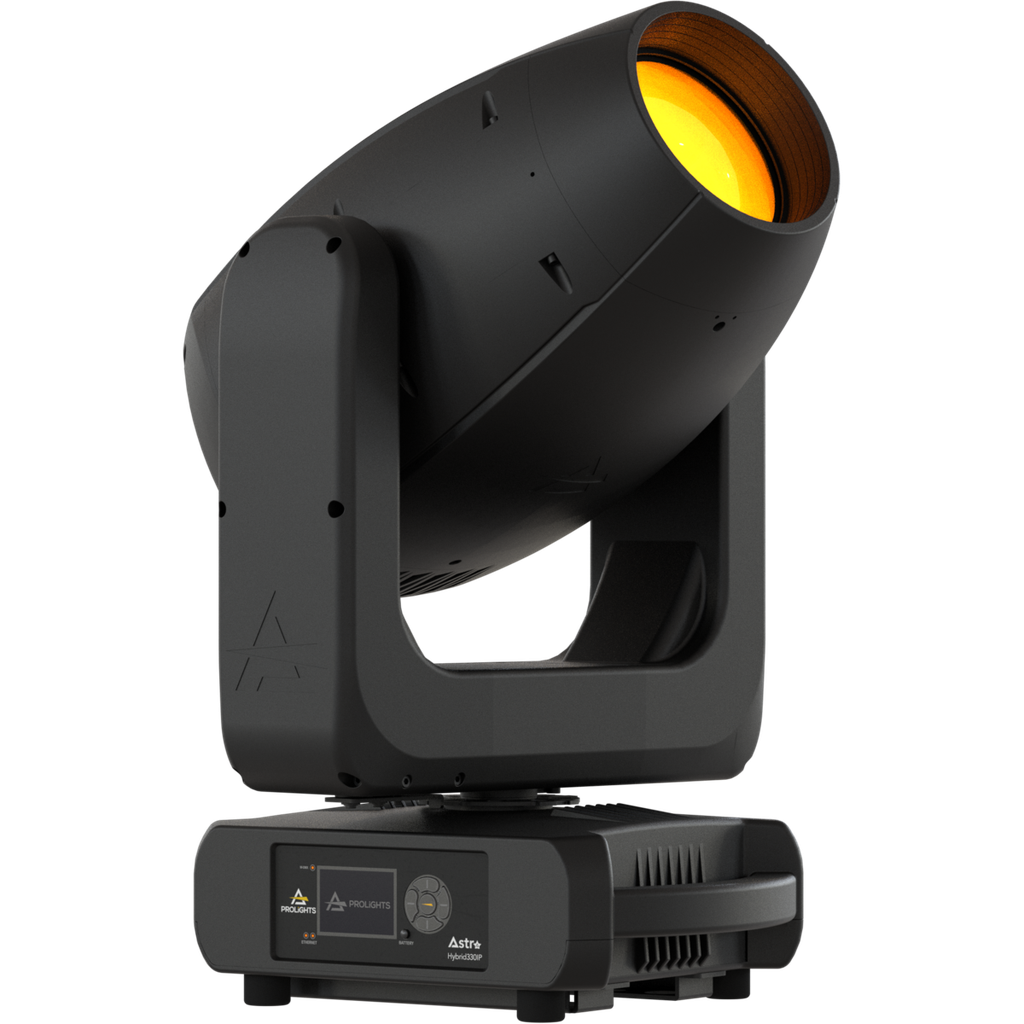

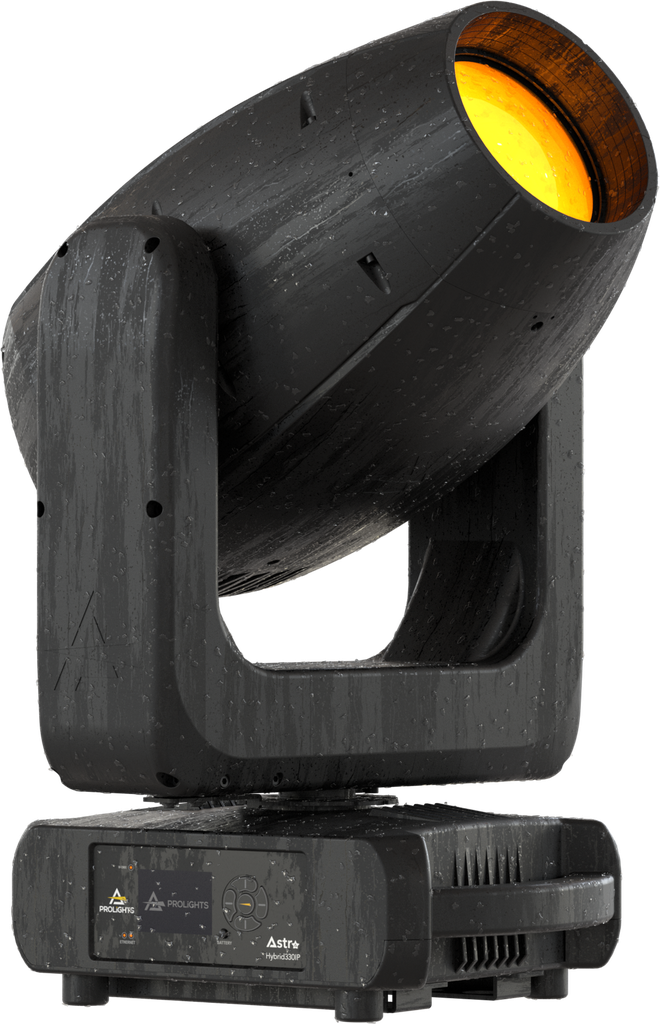

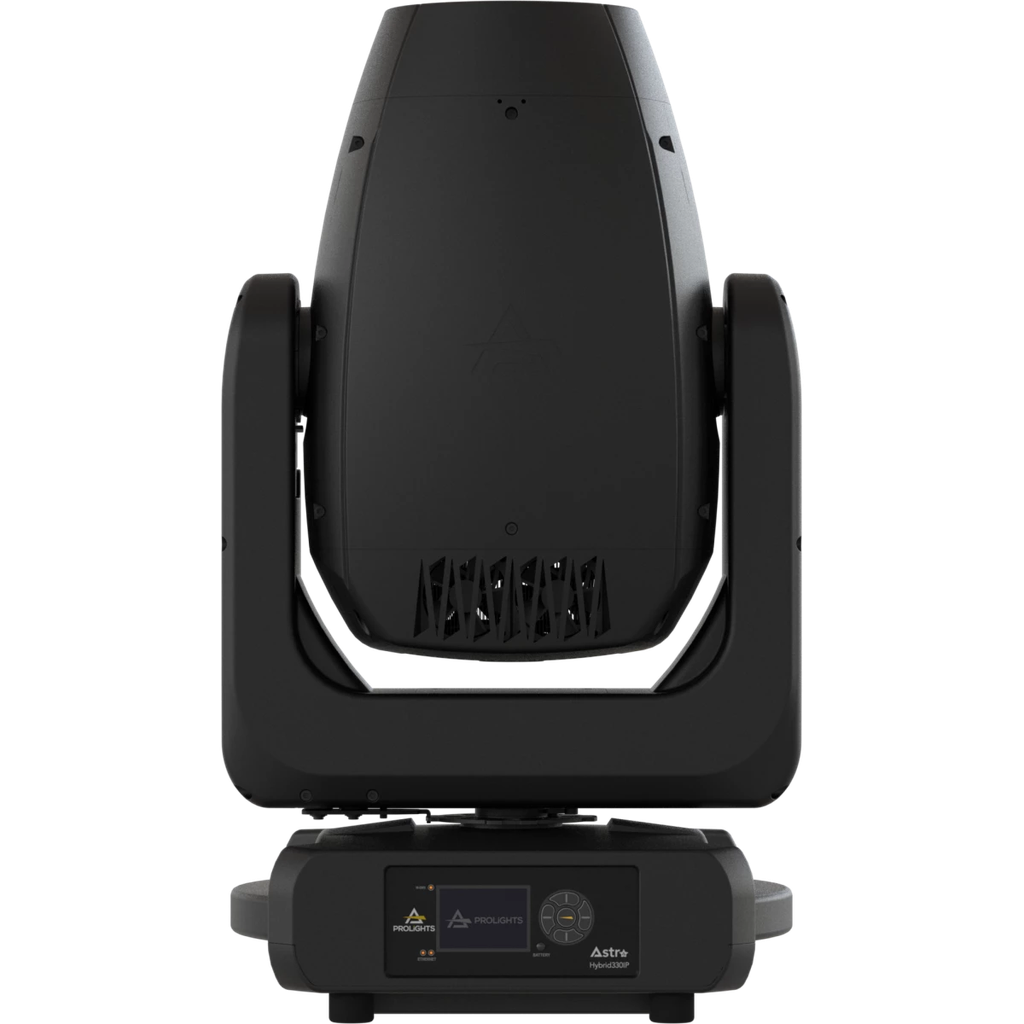

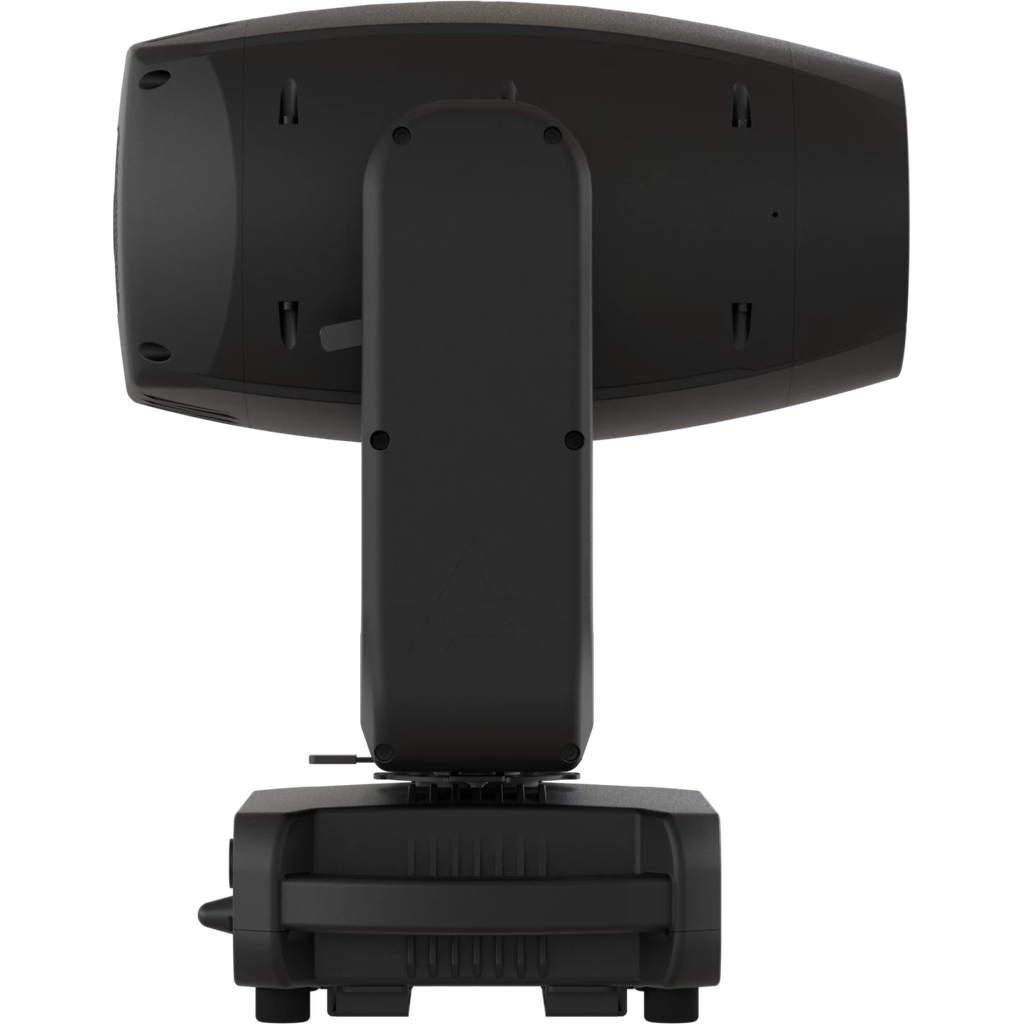

Prolights ASTRAHYB330IP

330W Hybrid Moving head, IP65 with 3-50° zoom and CMY

0.00 AED 0.00 AED

View on Manufacturer Website

Product Description

The Astra Hybrid330IP is a versatile, compact moving light, suitable for both indoor and outdoor settings, thanks to its IP65 rating.

Equipped with a 330W LED, this lightweight unit weighs only 25 kg. It offers a comprehensive range of features and visual effects, making it ideal for stages of various sizes. Its advanced optical system, featuring a 140 mm front lens, provides a zoom range from 3° to 50°, enabling both intense beam and spotlight functionalities.

Key features of the Astra Hybrid330IP include linear CMY color mixing, three color wheels, an animation wheel, dual overlapping prisms, a frost effect, and two gobo wheels.

  • IP65 hybrid moving light with 330W LED source
  • Linear zoom ranging from 3° to 50°
  • 25 kg

    • The Astra Hybrid330IP is a versatile, compact moving light, suitable for both indoor and outdoor settings, thanks to its IP65 rating.

    Equipped with a 330W LED, this lightweight unit weighs only 25 kg. It offers a comprehensive range of features and visual effects, making it ideal for stages of various sizes. Its advanced optical system, featuring a 140 mm front lens, provides a zoom range from 3° to 50°, enabling both intense beam and spotlight functionalities.

    Key features of the Astra Hybrid330IP include linear CMY color mixing, three color wheels, an animation wheel, dual overlapping prisms, a frost effect, and two gobo wheels.

    Features:
    IP65 hybrid moving light with 330W LED source
    Linear zoom ranging from 3° to 50°
    25 kg

    LIGHT SOURCE
    • Source:
      330
      W
      high-power white LED
    • Source CCT:
      7.000
      K
    • Luminous flux:
      (3°) 8'493 lm - (50°) 15'272
    • Lux:
      (3°) 114'701 lx - (50°) 1'882
      lx
      @5 m full
    • Source life expectancy:
      > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
    OPTICS
    • Zoom range:
      3° - 50
      °
      motorised linear zoom
    • Lens diameter:
      140
      mm
    • Lens type:
      HD anti-reflection lenses with achromatic coating
    • Focus:
      motorised 16-bit
    COLOUR SYSTEM
    • Colour mixing:
      CMY colour system on 3 gradually fading colour wheels
    • CCT:
      on wheel 2.400 K and 3.200 K
    • Colour wheel:
      HighCRI+8
      dichroic filters on 3 independent colour wheels
    DYNAMIC EFFECTS
    • Control Resolution:
      16-bit dimmer control
    • Animation wheel:
      animation wheel with CW and CCW rotation
    • FX generator:
      2
      prisms overlap for spectacular aerial effects
    • Circular prism:
      8
      -f
      with bi-directional rotation, indexing
    • Linear prism:
      6
      -f
      with bi-directional rotation, indexing
    • Frost:
      linear 0-100%
    GOBOS
    • Rotating gobos:
      8
      rotating gobos + open, interchangeable, indexing
    • Gobo size:
      20 mm outer / 16 mm image / up to 3 mm thickness
    • Fixed gobos:
      11
      fixed gobos + open
    CONTROL
    • Supported Protocols:
      DMX512, RDM, ArtNet, sACN (IGMP v2), CRMX
    • DMX channels:
      29
      ch
    • RDM:
      for remote addressing and parameter configuration
    • Display:
      LCD high resolution colour display with autoflip
    MOVEMENT
    • Pan:
      540
      °
      - 16-bit resolution
    • Tilt:
      270
      °
      - 16-bit resolution
    • Position feedback:
      automatic repositioning after external movement
    • Pan / tilt lock:
      for transport and maintenance
    ELECTRONICS
    • Dimmer:
      linear 0 - 100% mechanical dimmer
    • Dimmer curves:
      4
      selectable dimming modes available
    • Strobe / shutter:
      1 - 30
      Hz, electronic
    • Display battery:
      included, self-charging battery backup
    • Selectable PWM:
      600 to 50000 Hz (selectable steps)
    • Firmware upgrade:
      via DMX with UPBOXPRO/UPBOX2 (not included) or via USB pen drive
    CONNECTIONS
    • Power connection:
      Seetronic powerCON TRUE IP65 IN/OUT
    • Signal connection:
      IP65
      Seetronic XLR 5p IN/OUT connectors
    • Wireless Connection:
      integrated LumenRadio TiMo FX RDM - CRMX and W-DMX compatible
    • Data connection:
      IP65 Art-Net
      RJ45 IN/OUT
    • EtherFlow:
      Ethernet pass-through switch that preserves network connectivity even when the fixture is unpowered
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz (max absolutes range: 90-264V - 50/60Hz)
    • Max power consumption (230V):
      517
      W
    • Output (at 230V):
      4
      units on a single power line
    • Standby power:
      85W
    • Power factor:
      > 0,98
    PHYSICAL
    • IP rating:
      IP65 for temporary outdoor use (*)
    • Cooling:
      heat pipe with low-noise fan
    • Housing:
      Weatherproof IP65 construction with die-cast magnesium alloy
    • Finish:
      black (RAL 9004)
    • Operating temperature:
      Ta
      -20 to +45 °C (-4 to +113 °F)
    • Dimensions (WxHxD):
      393x684x266
      mm
    • Weight:
      25
      kg
    INSTALLATION
    • Suspension and fixing:
      any position with quick-lock omega brackets
    • Hardware on-board:
      sockets for quick-Lock Omega bracket (clamp not included)
    CERTIFICATIONS / REPORTS
    • Compliance:
      CE, RCM, FCC, cTUVus
    (*)
    • NOTE:
      Suitable for permanent outdoor use, provided installation and maintenance cycles by qualified technicians are carried.
