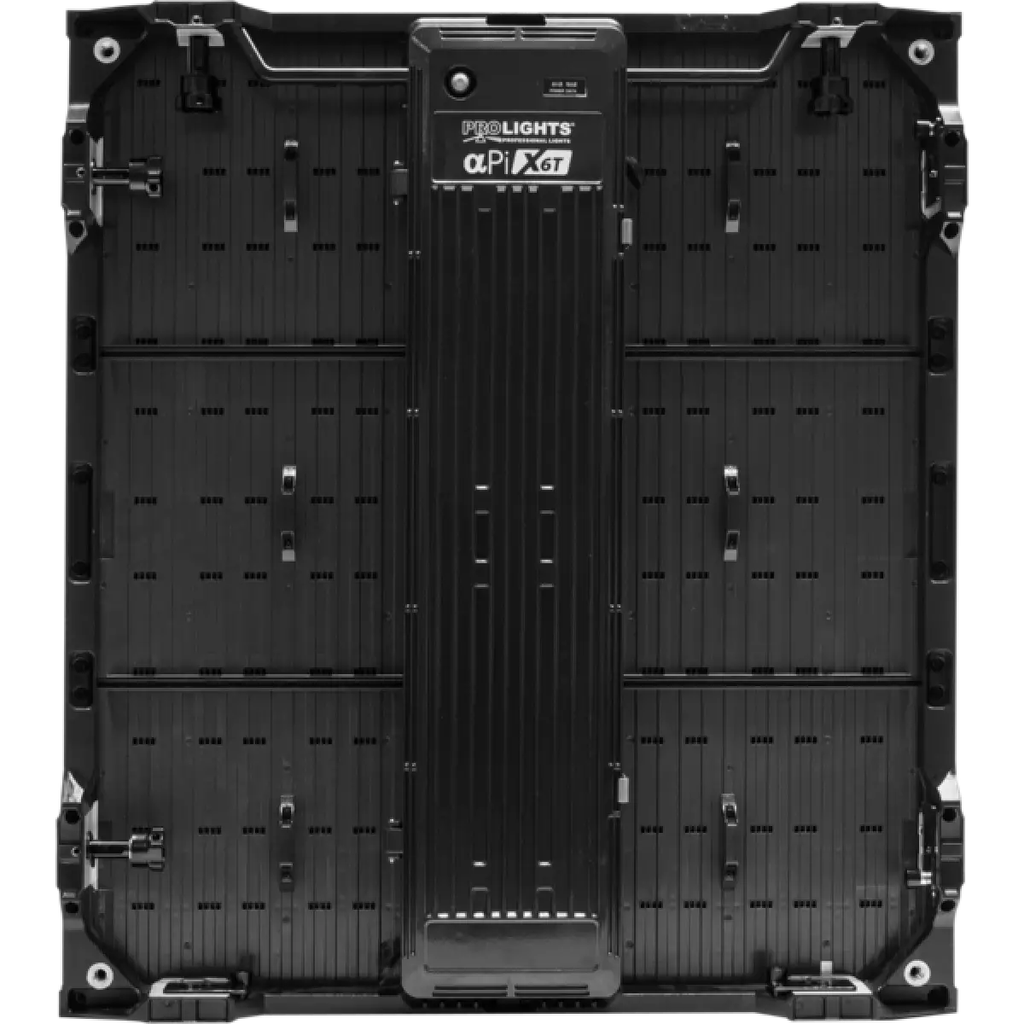

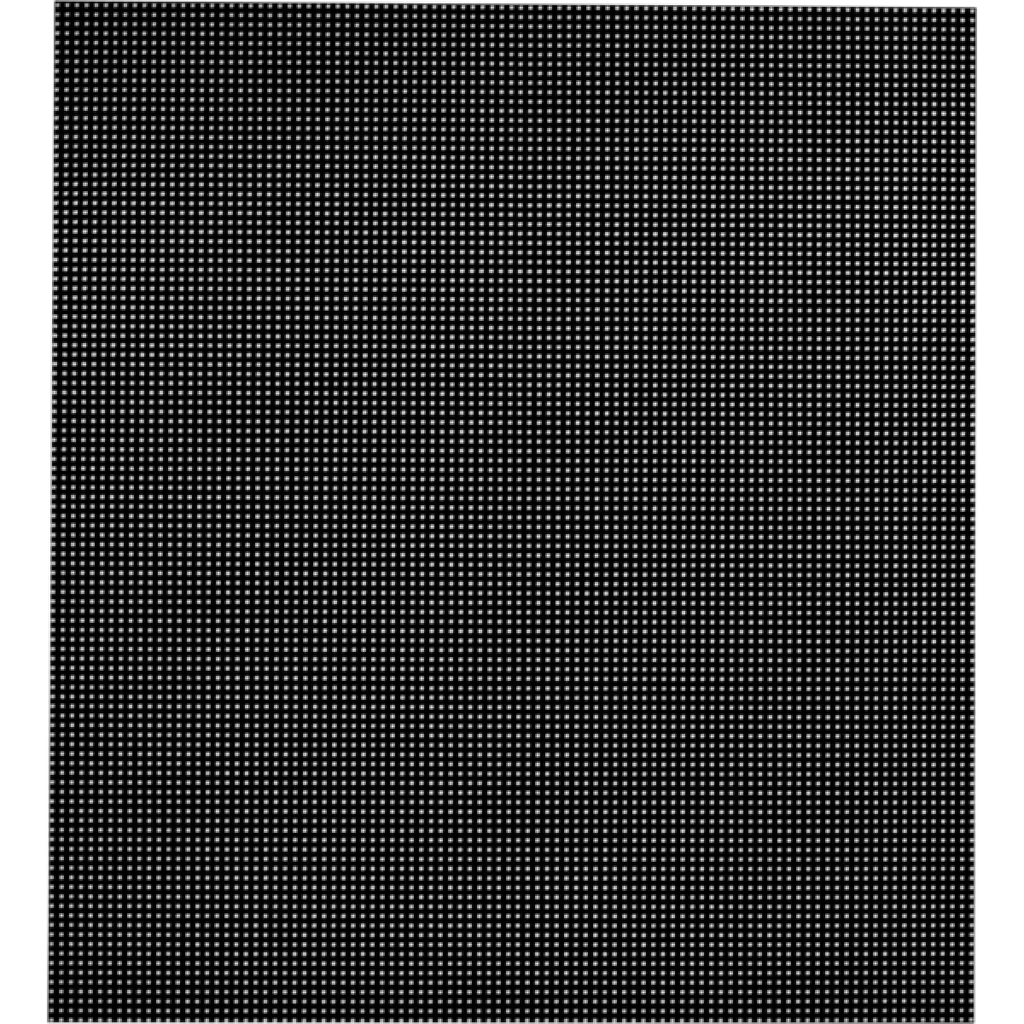

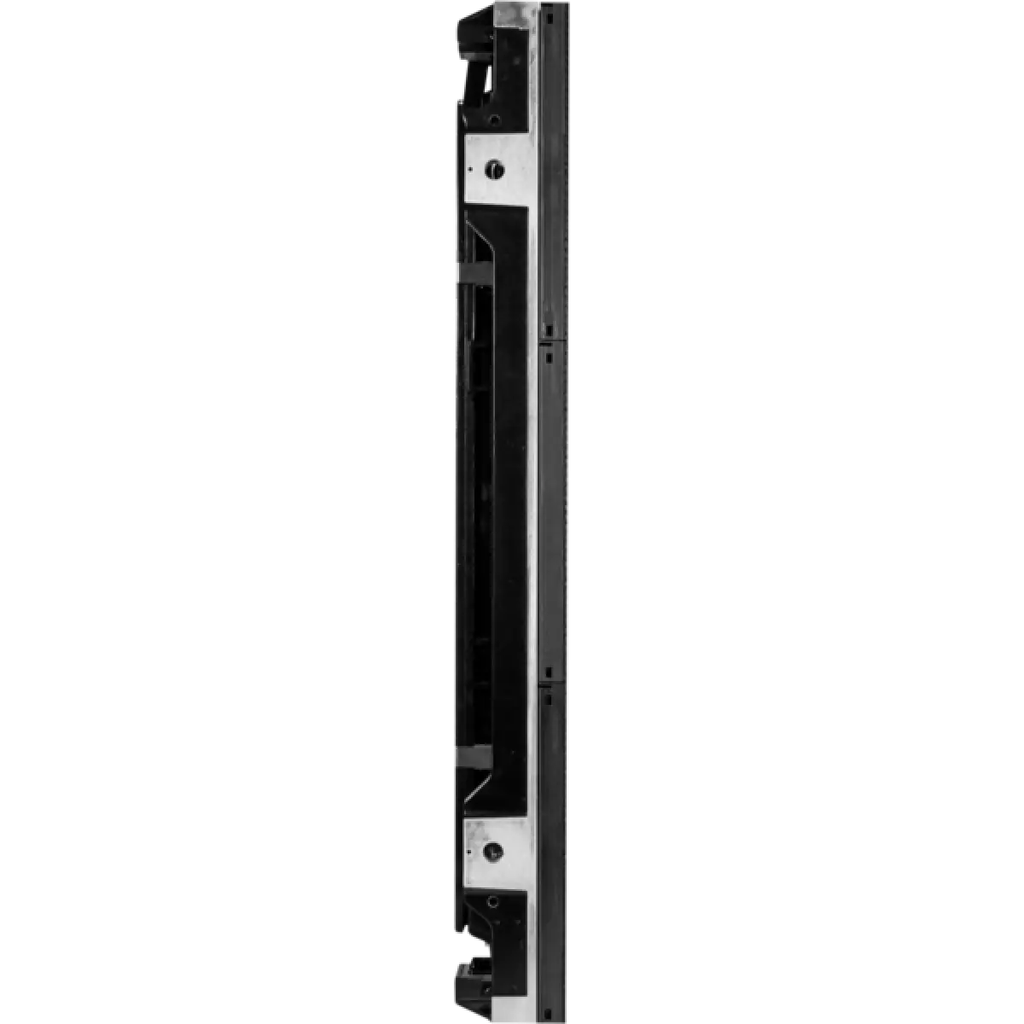

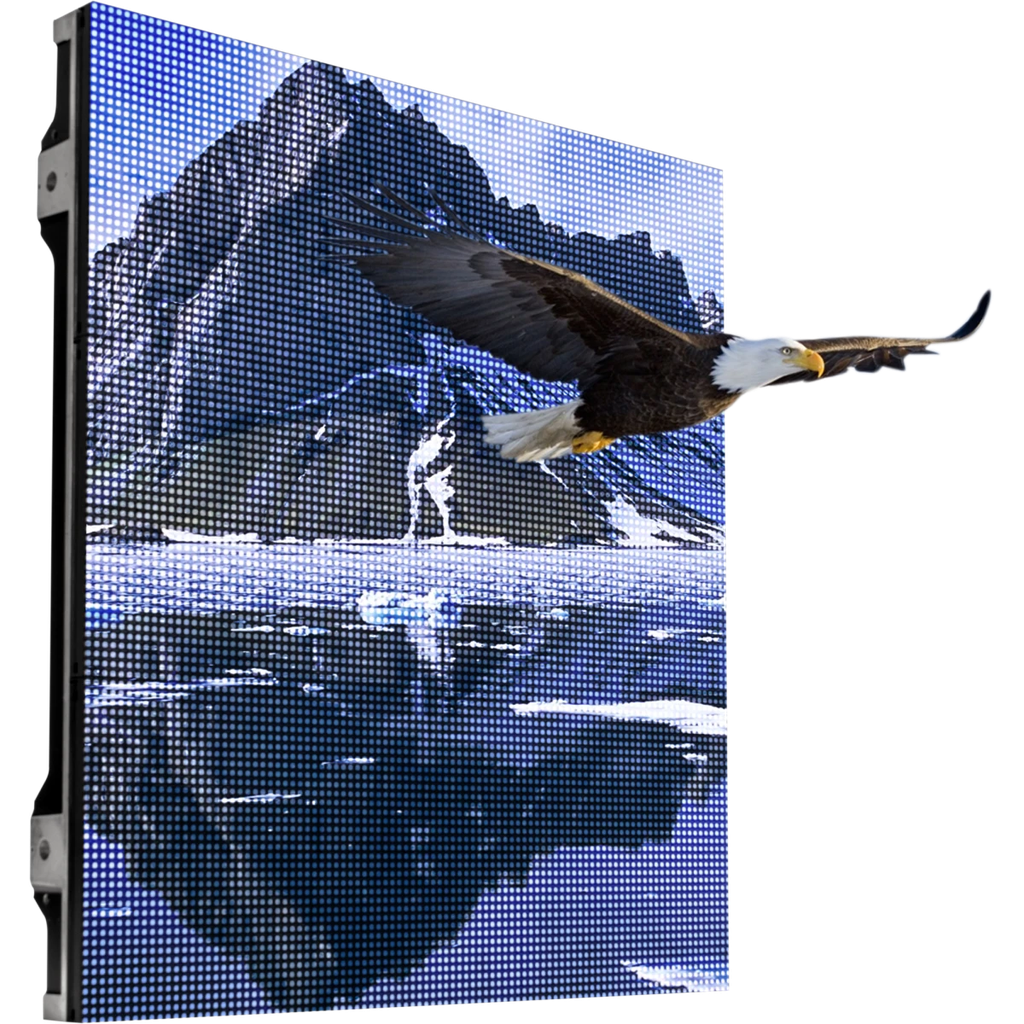

In this fast-paced market, the AlphaPix 6T Touring family consistently keep ahead of the game by delivering top quality images with the latest high-resolution temporary outdoor LED display. The AlphaPix 6T uses high-brightness, black-faced, square LEDs with UV coatings in a robust and lightweight die-cast aluminium housing. The frame and fast interlocking system creates a seamless image with minimal setup time. To deliver the perfect image, the AlphaPix 6T series features a high refresh-rate, advanced greyscale properties and automatic image correction along with a 140° viewing angle.
In this fast-paced market, the AlphaPix 6T Touring family consistently keep ahead of the game by delivering top quality images with the latest high-resolution temporary outdoor LED display. The AlphaPix 6T uses high-brightness, black-faced, square LEDs with UV coatings in a robust and lightweight die-cast aluminium housing. The frame and fast interlocking system creates a seamless image with minimal setup time. To deliver the perfect image, the AlphaPix 6T series features a high refresh-rate, advanced greyscale properties and automatic image correction along with a 140° viewing angle.
Features:Outdoor (IP65/IP54) die-cast aluminium housing for temporary outdoor installation.
Gapless panel joins for seamless image
High-brightness square LEDs with UV coating
Flicker-free on camera
High-performance video reproduction at every level of brightness
140° viewing angle
CE and EMC certified by TUV
- LED source:SMD 3535 high-power FC black face
- Pixel pitch:6.6 mm
- Panel resolution:96x108pixels
- Module resolution:48x36pixels
- Luminous flux:5.500nit
- Grayscale:16 bit
- Refresh rate ≥:1.920Hz
- Drive Mode:1/6 scan, constant current
- Vertical viewing angle:70°
- Horizontal viewing angle:140°
- LED density:22.500LED/sqm
- Dead Pixel Ratio:<0,002
- LED avg life span:100.000 h
- Power input/output:Seetronic powerCON
- Power supply:AC 110/230 V 50/60 Hz
- Max power consumption (panel):415W
- Avg power consumption (panel):139W
- Max power consumption (sqm):900W
- Avg power consumption (sqm):300W
- Standby power consumption (pannello):22,5W
- Max rated current/panel::AC 220 V / 1,88 A
- Max power output:3modules
- Working temperature:-10 ~ +40°C
- Working humidity:10-90%
- Control protocol:Novastar
- Signal input:waterproof Seetronic RJ45
- Signal output:waterproof Seetronic RJ45
- Module size (WxH):320x240mm
- Panel size(WxHxD):640x720x100mm
- Vertical hanging system:built-in aliscaf clamp support
- Connection:seamless locking system
- Panel weight:13,5kg
- Weight per square meter:30kg
- Hanging Panel Quantity ≤:15
- IP rating:IP65 (front) - IP54 (back) for temporary outdoor use
- Cooling:filtered forced-air with low-noise fan
- Housing:Die-cast aluminium housing
- Finish:black
- Compliance:CE
