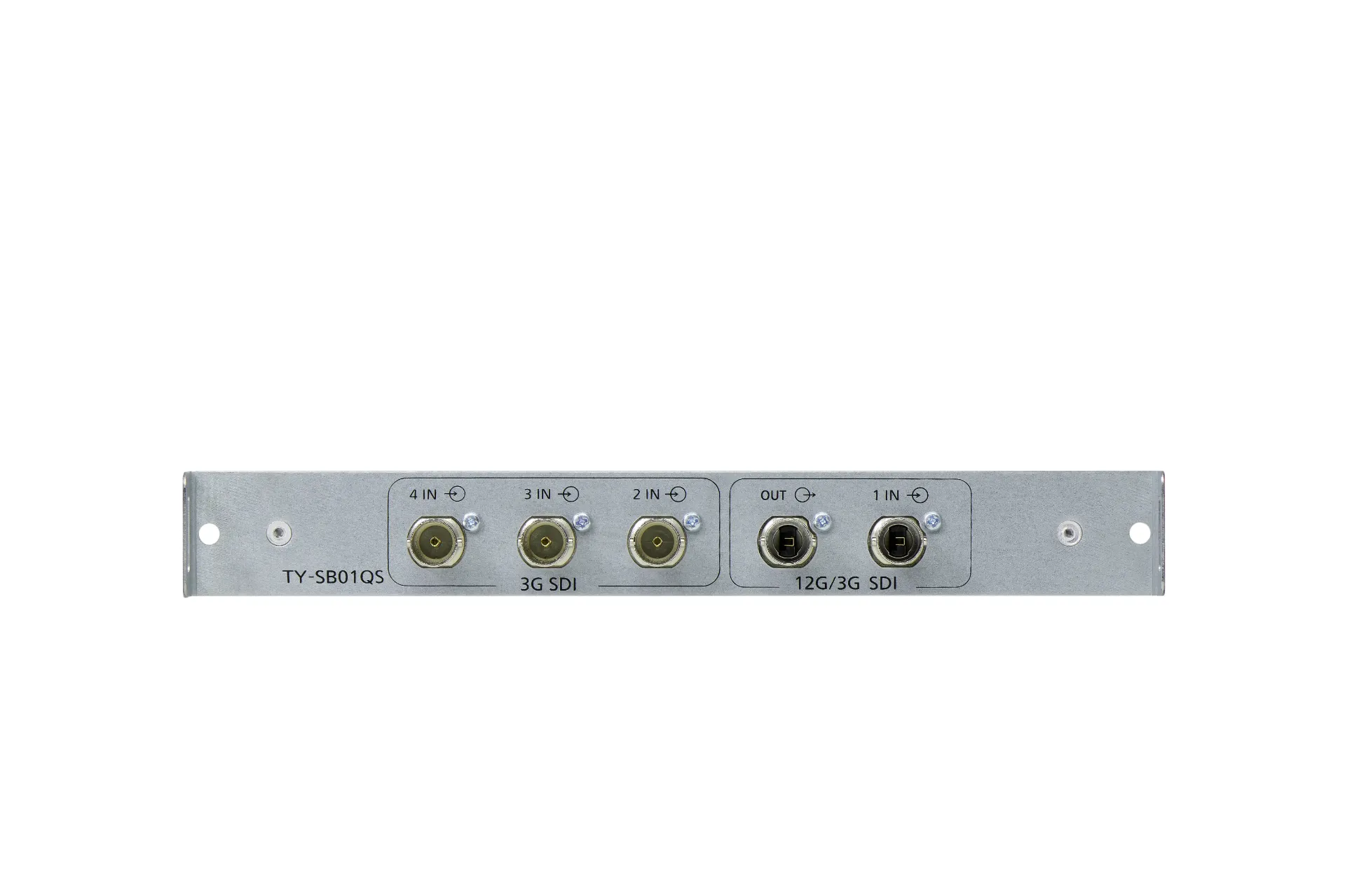

12G-SDI Terminal Board (Intel® SDM)
Key Features
- Intel® SDM Slot Compatible: Fits Intel® Smart Display Module slots (both SDM-S and SDM-L standards) — no external signage player or signal converter needed.
- Broad Format Support: Supports 12G-SDI (up to 4096/60p), 3G-SDI (up to 1080/60p or 2048/60p), and HD-SDI (up to 1080/30p) video formats, plus embedded 48kHz/16-channel synchronized audio.
- Clean Installation: No extra power or video cabling required — connects directly into the display/projector's SDM slot for a neat setup.
- System Flexibility: Function boards can be swapped to add different capabilities depending on the application; supports third-party SDM function boards (HDMI-transmission limited).
- Compact Form Factor: 195 × 25 × 125mm, weighing just 300g.
Important notes:
- Requires professional installation — doesn't work standalone and is model-specific; only compatible with corresponding Intel® SDM-equipped displays/projectors.
- Requires main software version 2.30+ and sub software version 02.20+ on the display — worth confirming firmware compatibility with the customer before quoting.
Compatible Models: A broad range of Panasonic's Intel® SDM-equipped projectors, including the PT-REQ12, PT-REQ10, PT-RQ18K, and PT-RZ17K.
