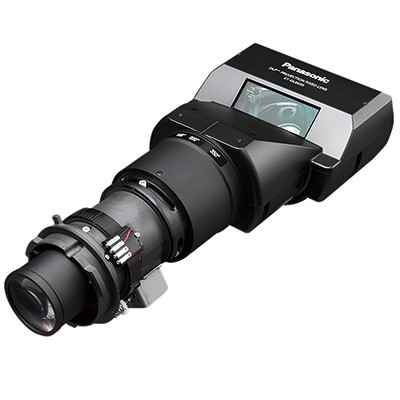

Ultra-Short-Throw Lens

Key Features

• Ultra-Short-Throw Design: Shortens projection distance by approximately 60% compared to the ET-DLE085 and ET-DLE080 short-throw lenses, enabling installations in tight or unconventional spaces.
• Wide Screen Range: Capable of projecting on 100–350 inch diagonal screens.
• Flexible Throw Ratio: 0.380:1 (WUXGA), 0.399:1 (WXGA), 0.394:1 (XGA), 0.378:1 (4K), depending on projector resolution.
• Edge Blending Compatible: Usable in both vertical and horizontal edge blending for seamless multi-screen setups.
• Versatile Applications: Well suited for digital signage in retail windows, train stations, staging, and immersive attractions — especially where ceiling height or floor space is limited.

Compatible Models

Works with a broad range of Panasonic 1-chip DLP projectors, including:

PT-RQ7L, PT-RQ6L, PT-RZ7L, PT-RZ6L, PT-RCQ10, PT-RCQ80, PT-RZ120, PT-RZ990, PT-RZ890, PT-RZ790, PT-RZ690, PT-RZ970, PT-RW930, PT-RX110, PT-RZ870, PT-RZ770, PT-RW730, PT-RZ660, PT-RW620, PT-RZ670, PT-RW630, PT-DZ870, PT-DW830, PT-DX100, PT-DZ780, PT-DW750, PT-DX820.
