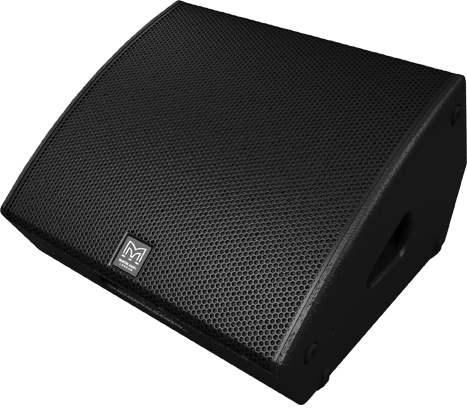

12" Passive Coaxial Differential Dispersion Stage Monitor
The LE100 is an extremely compact, two-way passive monitor. It features a 12” (300mm) LF /1” (25mm) exit HF Coaxial Differential Dispersion driver to distribute sound evenly over the listening plane. The LF driver section has a 2.5” (65mm) voice coil and an efficient motor system with an aluminium demodulating ring to minimise distortion. The coaxial HF driver utilises a 1.75” (44mm) polyimide dome and features a low-compression phase-plug to reduce non-linearity associated with overly-high compression ratios.
Features
- Compact, two-way stage monitor
- Coaxial ‘point-source’ performance
- Differential Dispersion™ technology for consistent coverage
- Defined, near-rectangular coverage plane at head-height
- Low-profile plywood enclosure

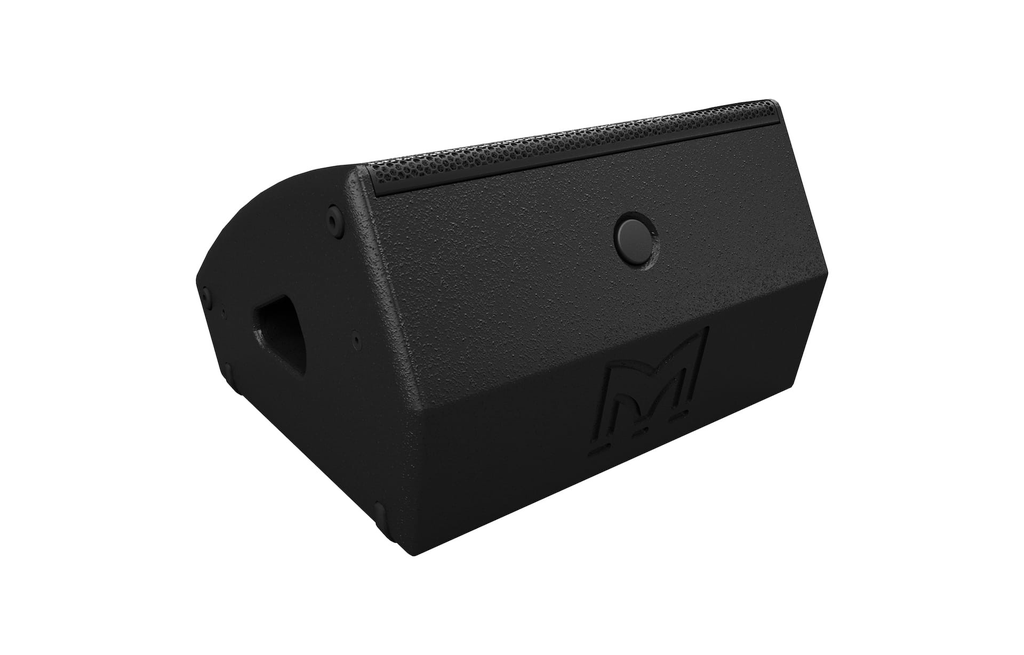

- Integral pole-mount with removable bung
- M8 rigging inserts
- Multiple connectors for flexible deployment
Applications
- Stage monitor
- Pole-mounted fill/PA system
