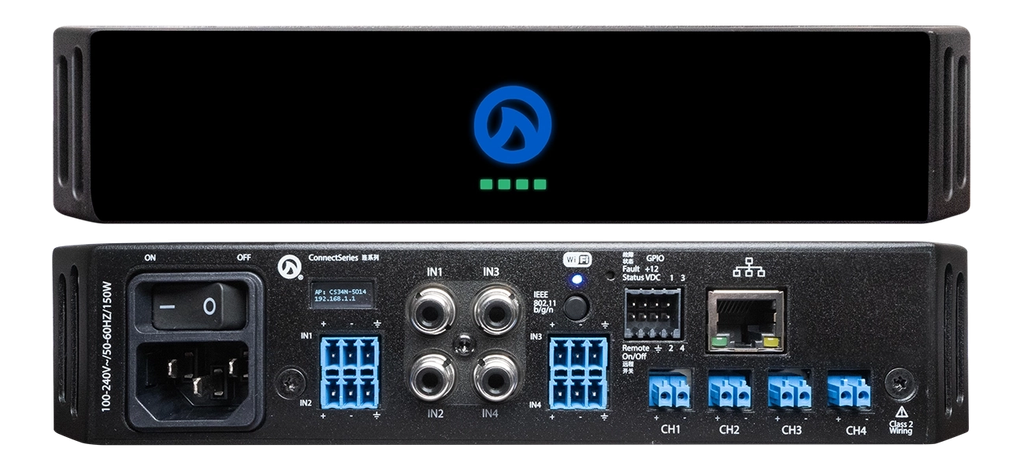

CONNECT SERIES HALF-RACK
SMART AMP | 4 CHANNELS | 30W PER CHANNEL

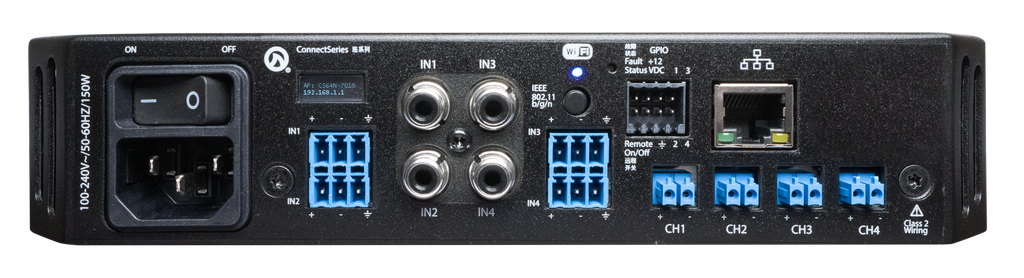

The Connect Series 34 delivers one of the most feature-rich amplifier experiences available in the industry – in a smaller form factor. Featuring 96kHz DSP, WebUI, SharkWare, LEA Cloud, third-party APIs, speaker tunings, and more—this amplifier is the right choice for your next install. The Connect Series Half-Rack is built with fully routable analog inputs, four amplifier channels with Lo-Z, 70V, or 100V selectable by channel. All models boast three different ways of network connection: using the built-in Wi-Fi Access Point, connecting to an existing Wi-Fi network, or using a Local Area Network Ethernet connection.
Register for your free LEA Cloud account at leaprofessional.cloud
MODEL | CH COUNT | 2Ω | 4Ω | 8Ω | 25V | 70V / 100V |
|---|---|---|---|---|---|---|
CONNECT 34 | 4 | 15W | 30W | 30W | 30W | 30W |
**Power ratings are stated on a per-channel basis.
Example: 120 watts at 8 ohms = 120 watts on each individual channel
