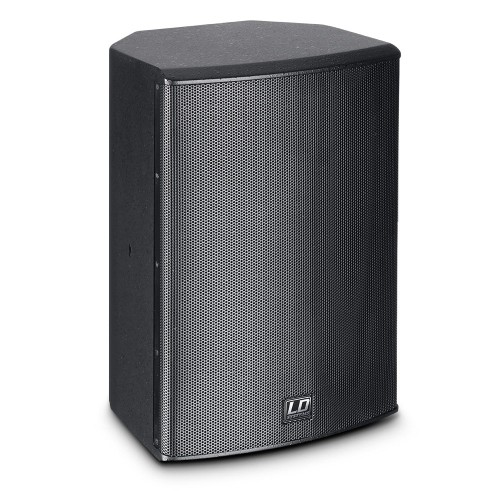

The LD Systems SAT82G2 is a compact, especially dependable 2-way speaker for demanding installation solutions. It blends unobtrusively into practically any surroundings and thus is also suitable for home systems.
The bass-reflex design is loaded with an 8" custom woofer and a 1“ silk dome tweeter with wave guide, which permit powerful and extremely dynamic reproduction within a range of 50 Hz - 20 kHz with a dispersion angle of 60° and attain a maximum sound- level pressure of 114 dB. The LD SAT82G2 is rated for a RMS power load of 120 W.
The sturdy cabinet is made of 12mm MDF with a durable textured finish and is available in black and white. M6 rigging points and an included mounting bracket provide numerous possibilities for mounting. Additionally, a universal joint mount is available as an accessory. The SAT82G2 has spring terminal connectors.
General
| Type (active/passive) | Passive |
|---|---|
| Power handling (RMS) | 120 W |
| SPL (1 W/1 m) | 93 dB |
| Max. SPL peak | 114 dB |
| Frequency response | 50 Hz |
| Impedance | 8 Ω |
| Speaker system | 2-way system |
| Dispersion | Hor.: 60° / Vert.: 60° |
| Number of inputs | 1 |
| Input connector types | Speaker terminal 2-pole |
| Colour | Black |
Bass driver
| Size | 8 " |
|---|---|
| Manufacturer | Custom Made |
| Magnet | Ferrite |
Tweeter
| Driver size | 1 " |
|---|---|
| Manufacturer | Custom Made |
| Magnet | Ferrite |
Housing
| Design | Bass reflex |
|---|---|
| Mounting type | Ceiling bracket |
| Cabinet material | Medium-density fibreboard MDF |
| Material thickness | 15 mm |
| Coating | Painted (textured lacquer) |
| Front grille material | Aluminium |
Dimensions & weight
| Width | 274 mm |
|---|---|
| Height | 410 mm |
| Depth | 243 mm |
| Weight | 7 kg |
Other properties
| Included accessories | Mounting bracket |
|---|
