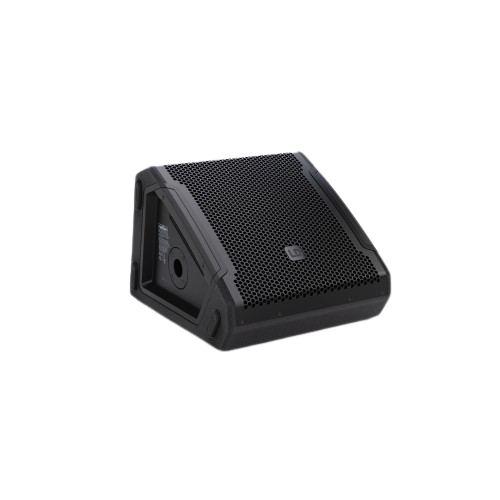

The MON 10 A G3 is part of an entirely newly developed family of powered stage monitors for high performance. The MON G3 Series incorporates the advanced technology and premium materials found in high-end monitors typically rented by professionals, making this quality available to everyone. These include, for example, advanced coaxial loudspeakers with integrated 50° x 90° CD horn, which ensure the acoustic ideal of a true point source and thus outstanding audio characteristics even at short listening distances. Besides this, the series offers a high-level of robustness, a comprehensive set of features and the elegant LD Systems design.
Although it is still very compact and can therefore be integrated inconspicuously into the stage set, the MON 10 A G3 delivers sufficient sound pressure to assert itself even in louder band situations. The ideal dispersion geometry of 50° x 90° for monitor use and 90° x 50° for FOH use make it a multi-talent that offers the right solution for many different tasks.
Both the signal (XLR/jack combo) and the power connection (PowerCON compatible) can be looped through. This allows for elegant, tidy cabling in multi-monitor set-ups or for distributed sound reinforcement.
- Compact high-performance stage monitor with top-of-the-range technologies
- Class-D power amplifier with 300 W RMS/1200 W peak and 126 dB max. SPL
- Coaxial design for true point source with a 1.75" titanium-diaphragm HF driver
- 10" woofer with 2.5" voice coil
- Optimised, practical radiation pattern due to 50° x 90° CD horn
- DynX® DSP (Gen.2) for distortion-free sound even at maximum volume
- 3-band EQ, Notch filter, 4 application presets and delay function
- PowerCON compatible loop-through professional power connection
- 35 mm speaker stand flange for FOH applications
- Durable Polyurea coating and heavy-duty front grille
General
| Type (active/passive) | Active |
|---|---|
| Peak output power | 1200 W |
| RMS output power | 300 W |
| Amp class | Class D |
| SysLink® | 0 |
| Max. SPL peak (sine burst, fullspace/1 m, THD≤10 %) | 126 dB |
| Max. SPL average (sine burst, BW, fullspace/1 m, THD≤10 %) | 118 dB |
| Frequency response (-3 dB, rel. Avg) | 72 Hz |
| Frequency response (-10 dB, rel. Avg) | 58 Hz |
| Speaker system | 2-way coaxial system |
| Crossover frequency | 1700 Hz |
| Dispersion | Hor.: 50° / Vert.: 90° |
| Monitor angle | 33 ° |
| Number of inputs | 2 |
| Input connector types | XLR combo socket, 6.3 mm Jack TRS female |
| Number of outputs | 2 |
| Output connector types | XLR 3-pole female |
| Protection features | Multiband Limiter, Overheating, Overload, Overvoltage |
| Colour | Black |
Inputs
| Number of mic/line inputs | 2 |
|---|---|
| Number of line inputs | 2 |
| Line-In connector type | XLR combo socket, 6.3 mm Jack TRS female |
Outputs
| Number of line outputs | 2 |
|---|---|
| Line outputs connector type | XLR 3-pole female |
Signal processing
| Mixer | 1 |
|---|---|
| Audio processing | 3 band EQ (High, Mid, Low), Delay Line, Notch filter, Presets |
Bass driver
| Size | 10 " |
|---|---|
| Manufacturer | Custom Made |
| Magnet | Ferrite |
| Voice coil | 2.5 " |
Tweeter
| Driver size | 1 " |
|---|---|
| Manufacturer | Custom Made |
| Magnet | Ferrite |
| Voice coil | 1.75 " |
Mains operation
| Operation voltage | 100 V AC - 230 V AC / 50 - 60 Hz |
|---|---|
| Power supply type | Switched-mode power supply (SMPS) |
| Rated power | 150 W |
| Mains fuse | T4AL/250 V |
Housing
| Design | Bass reflex |
|---|---|
| Number of handles | 2 |
| Flange | 36 mm (0°/5°) |
| Cabinet material | Birch multiplex, Medium-density fibreboard MDF |
| Material thickness | 15 mm |
| Front grille material | Aluminium |
Environmental
| Ambient temperature | 0 °C |
|---|---|
| Maximum air humidity (non-condensing) | 80 % |
Dimensions & weight
| Width | 380 mm |
|---|---|
| Height | 305 mm |
| Depth | 426 mm |
| Weight | 15.21 kg |
Other properties
| Included accessories | Mains cable |
|---|
