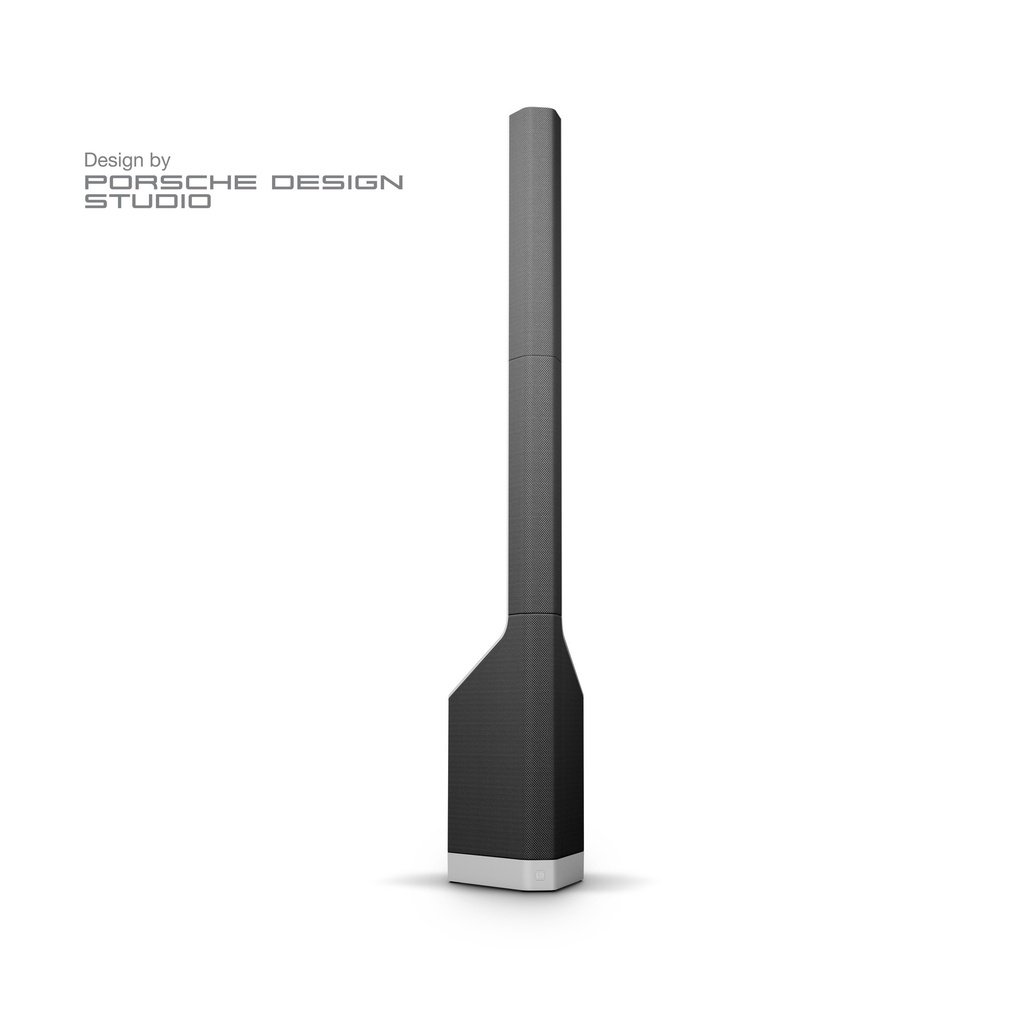

Developed in collaboration with Porsche Design Studio, the LD Systems MAUI® P900 provides excellent reproduction clarity and outstanding high-definition sound. Combining state-of-the-art audio technology and eye-catching elegance, the MAUI® P900 is the perfect choice when your live events and installation environments call for stellar sonic performance and style. With a total of 50 neodymium transducers and 1,400 watts RMS of class D power, this groundbreaking column system delivers a maximum sound pressure of 131 dB and 42 to 20,000 Hz frequency response.
The MAUI® P900 incorporates both our SonicGuide® waveguide technology and WaveAhead® tweeter arrangement to deliver a coherent wavefront. Combining 140° dispersion on the horizontal axis and tightly focused vertical dispersion, the system provides an ultra-long throw and even coverage. Our DynX® 24-bit digital processing results in detailed, dynamic sound reproduction that remains distortion-free even at the highest volume levels. The use of aptX™ and AAC coding ensures high-definition full bandwidth audio over Bluetooth® with a range of 70 m (230 ft.), and the integration of TrueWireless Stereo™ technology enables wireless stereo sound from two MAUI® P900 with up to 15 m (50 ft.) distance between left and right channel systems.
Constructed of high-strength aluminium with a multilayer mesh grille, the unique three-piece MAUI® P900 body features proprietary multi-pin connectors for instant cableless setup. The minimalist connector panel provides main and sub level controls plus XLR stereo line inputs and outputs for wired stereo operation of two systems.
Merging distinctive aesthetics and outstanding audio performance, the MAUI® P900 comes in Cocoon White, Platinum Grey or Graphite Black to elegantly integrate into virtually any ambience.
To facilitate transport and protect the MAUI® P900 from damage, padded carrying bags for the column elements and subwoofer and a dedicated road case are available as accessories.
- Powered column PA system for live events and install
- Award-winning design by Porsche Design Studio
- Durable aluminium body
- 1,400 watts RMS system power and 131 dB maximum SPL
- 50 premium transducers for monumental clarity
- SonicGuide® and WaveAhead® technology for coherent wavefront
- DynX® DSP for distortion free sound
- aptX™ and AAC coding for HD Bluetooth® streaming
- TrueWireless Stereo™ for wireless stereo pairing
- Available in Cocoon White, Platinum Grey or Graphite Black
General
| Type (active/passive) | Active |
|---|
| Peak output power | 2800 W |
|---|
| RMS output power | 1400 W |
|---|
| Amp class | Class D |
|---|
| SysLink® | 0 |
|---|
| Max. SPL peak | 131 dB |
|---|
| Max. SPL average | 121 dB |
|---|
| Frequency response | 42 Hz |
|---|
| Speaker system | Full-range |
|---|
| Dispersion | Hor.: 140° / Vert.: 15° |
|---|
| Number of inputs | 2 |
|---|
| Input connector types | XLR 3-pole female |
|---|
| Number of outputs | 2 |
|---|
| Output connector types | XLR 3-pole male |
|---|
| Protection features | Direct current, Multiband Limiter, Overheating, Short circuit |
|---|
| Colour | Black |
|---|
Bluetooth®
| Bluetooth® version | 4.2 |
|---|
| Features | App control, True Wireless Stereo |
|---|
| Bluetooth® range | ≤100 m (Class 1) |
|---|
| Supported audio codecs | AAC, aptX™, SBC |
|---|
| Receiver (client) | 0 |
|---|
| Transmitter (host) | 0 |
|---|
Outputs
| Number of speaker outputs | 2 |
|---|
| Speaker output connection type | XLR 3-pole male |
|---|
Signal processing
| DSP model | DynX® DSP |
|---|
| Mixer | 0 |
|---|
| Min. Signal-to-noise ratio (SNR) | 106 dB |
|---|
Bass driver
| Size | 10 " |
|---|
| Quantity | 2 |
|---|
| Manufacturer | Custom Made |
|---|
| Magnet | Neodymium |
|---|
| Voice coil | 3 " |
|---|
Mid range
| Size | 2.8 " |
|---|
| Quantity | 16 |
|---|
| Manufacturer | Custom Made |
|---|
| Voice coil | 0.75 " |
|---|
| Magnet | Neodymium |
|---|
Tweeter
| Driver size | 1 " |
|---|
| Quantity | 32 |
|---|
| Design | Softdome Tweeter, WaveAhead®, SonicGuide® |
|---|
| Manufacturer | Custom Made |
|---|
| Magnet | Neodymium |
|---|
| Voice coil | 1 " |
|---|
Mains operation
| Operation voltage | 100 V AC - 120 V AC / 50 - 60 Hz, 220 V AC - 240 V AC / 50 - 60 Hz |
|---|
| Power supply type | Switched-mode power supply (SMPS) |
|---|
| Rated power | 1000 W |
|---|
| Max. Stand-by power consumption | 11 W |
|---|
| Mains connector | IEC C14 plug male |
|---|
Housing
| Design | Bass reflex |
|---|
| Cabinet material | Birch multiplex |
|---|
| Material thickness | 15 mm |
|---|
| Coating | HD coated Aluminium, Multi layer mesh fabric |
|---|
Cooling
| Cooling system | Convection cooling |
|---|
Satellites/columns
| Design | Closed |
|---|
| Chassis material | Aluminium |
|---|
| Housing coating | HD coated Aluminium, Multi layer mesh fabric |
|---|
| Width | 157 mm |
|---|
| Height | 1428 mm |
|---|
| Depth | 91 mm |
|---|
| Weight | 15.4 kg |
|---|
Subwoofer
| Design | Bass reflex |
|---|
| Material thickness | 15 mm |
|---|
| Width | 400 mm |
|---|
| Depth | 470 mm |
|---|
| Height | 745 mm |
|---|
| Weight | 30.6 kg |
|---|
Environmental
| Ambient temperature | 0 °C |
|---|
| Maximum air humidity (non-condensing) | 80 % |
|---|
Dimensions & weight
| Width | 400 mm |
|---|
| Height | 2173 mm |
|---|
| Depth | 470 mm |
|---|
| Weight | 46 kg |
|---|
Other properties
| Included accessories | Mains cable |
|---|
