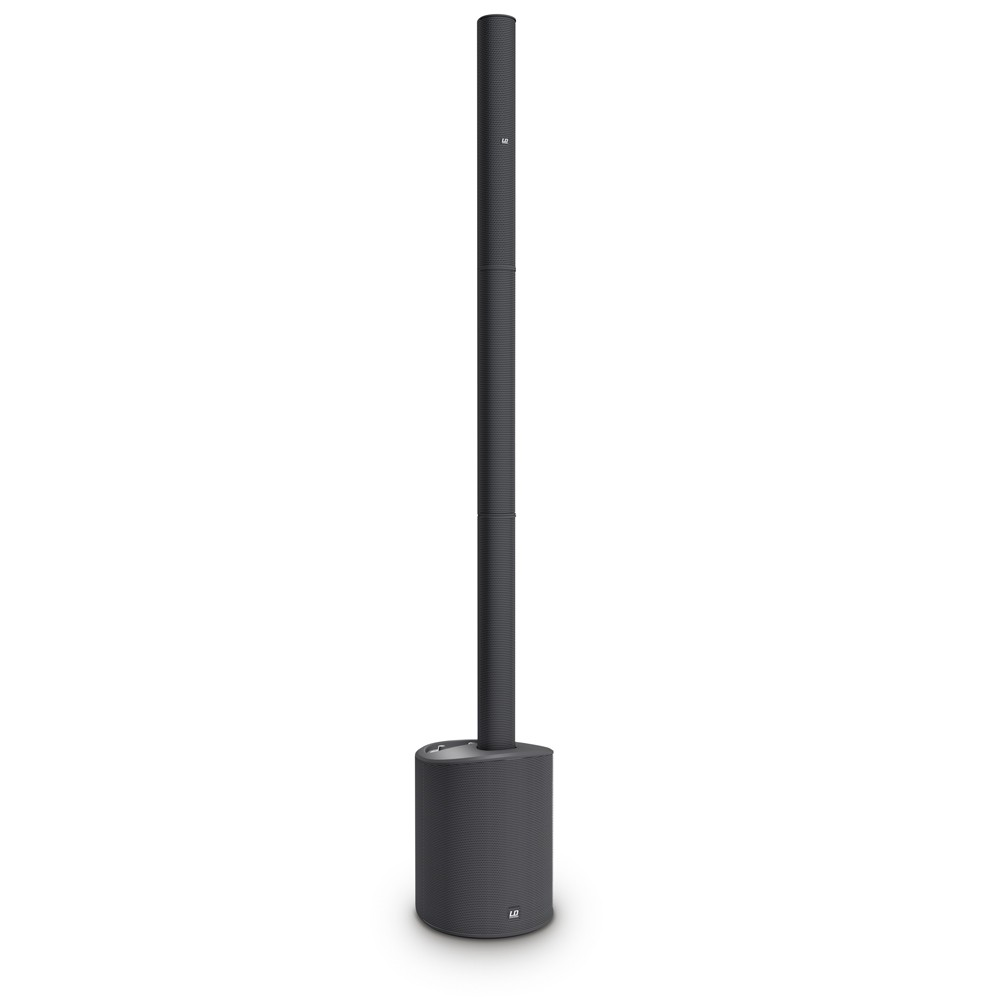

The MAUI 5 is an ultra-compact PA and monitor system in one that comes in at just under 11 kg to supply 800 watts peak performance and a maximum sound pressure of 120 dB. The smallest member of the MAUI family is assembled in a matter of seconds thanks to specially developed multi-pin connectors and only four components. It also boasts extensive sound dispersion and high feedback resistance. The MAUI 5 is easy to carry and fits on any car seat.

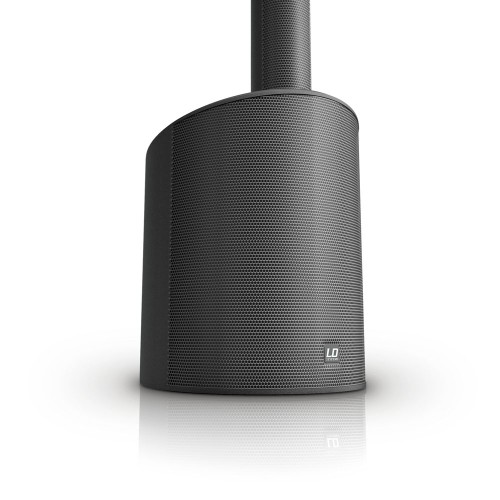

The bass reflex cabinet of the 8" subwoofer base also houses the system’s class-D amplifier unit with protection circuits against overcurrent, overheating and short-circuiting, LD Systems LECC digital signal processing, and a 4-channel mixer. Thanks to built-in Bluetooth© technology for wireless streaming alongside use of the microphone, line and high-impedance inputs, a wide variety of sound sources can be connected to the MAUI 5, including playback devices and instruments, such as keyboards or guitars. Separate level controllers, subwoofer and system volume controllers, and a high-shelf filter for adjusting treble to room acoustics ensure perfectly tuned performances. The MAUI 5 is also available in white (LDMAUI5W).
- Ultra-compact column PA
- PA and Monitor System in one
- 800 watts peak power
- Extensive and wide sound dispersion
- LECC digital signal processing for controlled, dynamic operation
- Integrated 4-channel mixer with Bluetooth
- Wide range of connection options
- Wireless assembly within seconds
- Extremely easy to transport
General
| Type (active/passive) | Active |
|---|---|
| Peak output power | 800 W |
| RMS output power | 200 W |
| Amp class | Class D |
| SysLink® | 0 |
| Max. SPL peak | 120 dB |
| Max. SPL average | 114 dB |
| Frequency response | 50 Hz |
| Speaker system | 2-way coaxial system |
| Dispersion | Hor.: 120° / Vert.: 20° |
| Protection features | Overheating, Overvoltage, Short circuit, Multiband Limiter |
| Colour | Black |
Bluetooth®
| Bluetooth® version | 4.2 |
|---|---|
| Features | Audio Streaming (A2DP) |
| Bluetooth® range | ≤10 m (Class 2) |
| Supported audio codecs | SBC |
| Receiver (client) | 0 |
| Transmitter (host) | 0 |
Inputs
| Number of microphone inputs | 1 |
|---|---|
| Mic-in connector type | XLR combo socket |
| Number of instrument inputs | 1 |
| Inst-in connector type | 6.3 mm Jack TS female |
| Number of line inputs | 2 |
| Line-In connector type | XLR combo socket |
| Number of aux inputs | 1 |
| Aux inputs connector types | 3.5 mm Jack TRS female |
Signal processing
| DSP model | LECC |
|---|---|
| Mixer | 1 |
| Mixer channels | 4 |
| Audio processing | 3 band EQ (High, Mid, Low) |
| AD/DA converter bit depth | 24 Bit |
| AD/DA converter sampling rate | 48 kHz |
Bass driver
| Size | 8 " |
|---|---|
| Manufacturer | Custom Made |
| Magnet | Ferrite |
| Voice coil | 2 " |
Mid-high range
| Size | 3 " |
|---|---|
| Quantity | 4 |
| Manufacturer | Custom Made |
| Voice coil | 1 " |
| Magnet | Neodymium |
Mains operation
| Operation voltage | 100 V AC - 120 V AC / 50 - 60 Hz, 220 V AC - 240 V AC / 50 - 60 Hz |
|---|---|
| Power supply type | Switched-mode power supply (SMPS) |
| Rated power | 300 W |
| Mains connector | IEC C14 plug male |
Cooling
| Cooling system | Convection cooling |
|---|
Satellites/columns
| Design | Closed |
|---|---|
| Chassis material | ABS |
| Width | 82 mm |
| Height | 535 mm |
| Depth | 105 mm |
Subwoofer
| Design | Bass reflex |
|---|---|
| Number of handles | 1 |
| Width | 305 mm |
| Depth | 395 mm |
| Height | 405 mm |
Environmental
| Ambient temperature | 0 °C |
|---|---|
| Maximum air humidity (non-condensing) | 80 % |
Dimensions & weight
| Width | 305 mm |
|---|---|
| Height | 1985 mm |
| Depth | 395 mm |
| Weight | 11.3 kg |
Other properties
| Included accessories | Mains cable |
|---|
