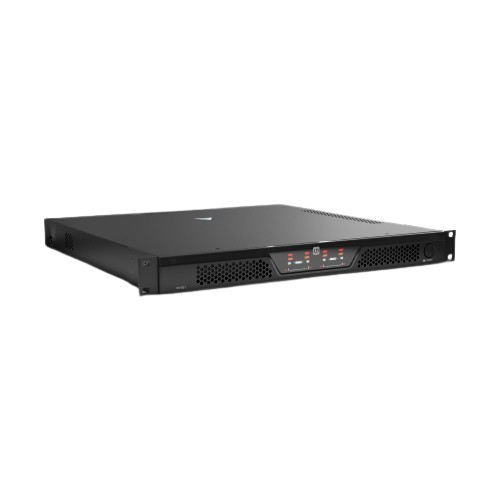

4-channel DSP Installation Amplifier 4 x 120 W or 4 x 240 W @ 4 Ohm / 70V/100V
- Professional 4-channel installation amplifier
- Powerful class D power amplifier with 4 x 240 W (IPA 424 T) or 4 x 120 W (IPA 412 T) at 4 Ohm (transformer bypass) or 70V/100V outputs through toroidal core transformer
- Stereo/parallel/bridge mode selector switch per channel pair
- 4 balanced line inputs and 4 speaker outputs with terminal block connections
- User-friendly front panel with signal, limit, protection, mute and bridge mode LEDs per channel and clipping LEDs for the inputs
- Speaker protection circuits: DSP limiter, overcurrent, direct current, overheating, short circuit as well as switchable auto standby mode
- DSP presets with HPF and LPF which can be activated via DIP switches
- REMOTE audio and control bus based on CAN architecture (Controller Area Network)
- Equipped for future LD Systems remote control panels and paging microphones
- Slot for future optional expansion cards for Ethernet or Ethernet + Dante
- Optional accessories: 19" L-bearing rails, length 450 mm
