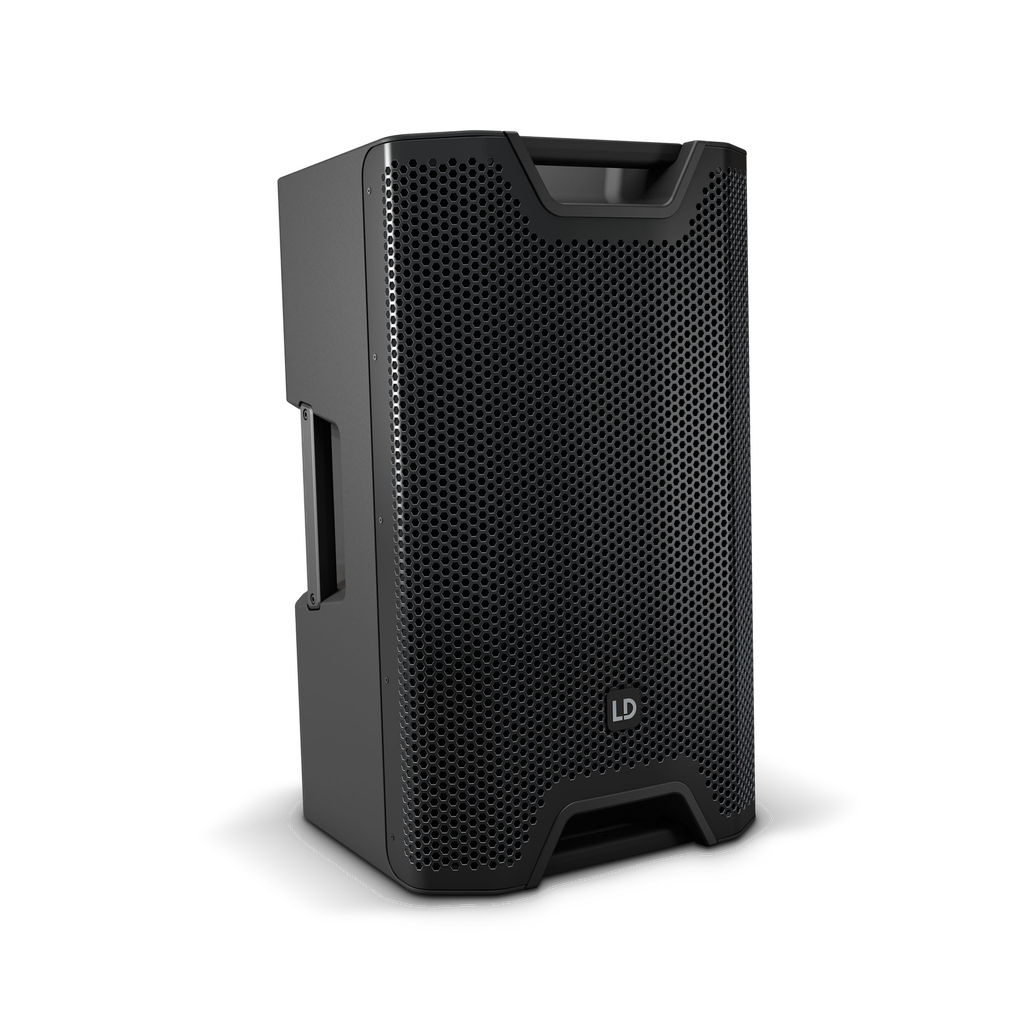

LD Systems ICOA 12 A BT

This full-range loudspeaker impresses with its outstanding sound, even at low frequencies. The ICOA 12 A BT by LD Systems is a genuine all-rounder that offers unparalleled features for its class. Its coaxial design, rotating, BEM-optimised CD horn and extensive and precisely calibrated DynX DSP presets make this powered 12" loudspeaker exceptionally flexible.

The outstanding bass reproduction from the horn-loaded woofer makes the LD ICOA 12 A BT the ideal choice for musicians, bands, entertainers and dance schools. It also allows DJs to play sets without the need for a subwoofer. Deployed vertically, the speaker impresses as a satellite; horizontally, it's excellent in suspended systems or as a floor monitor. The efficient class-D power amplifier delivers 126 dB max. SPL and 1200 W peak performance.

Drawing on DynX DSP technology by LD Systems, the speaker delivers perfect performance with maximum clarity and power under all conditions. 4 presets, a 3-band EQ and a delay function facilitate optimal adjustment of the sound to the venue conditions. The 2 line/mic input channels with individual gain controllers, plus mono mix output, allow a variety of signal sources to be connected. The BT version offers Bluetooth® streaming and the wireless connection of playback devices - ideal for playing content from a phone or tablet.

Thanks to its shock-resistant front grille and ideal 55° tilt angle, the LD ICOA 12 A BT is also outstanding as a floor monitor. Placed vertically, the 36 mm dual tilt stand attachment offers the choice of a 0° or 5° tilt angle for optimally adapting the system to the local acoustic environment.

Extensive and smart accessories for installation and transport are optionally available. 4 aluminium handles with an ergonomic rubber surface provide optimal grip when carrying the speaker.

• A genuine all-rounder for full-range, satellite and monitor applications
• 126 dB max. SPL and 1200 W peak power
• Vertical and horizontal use thanks to coaxial design with rotating, BEM-optimised CD horn (Patent pending)
• Horn-loaded woofer
• DynX DSP with 4 presets, 3-band EQ and delay function
• 2 line/mic input channels with individual gain controllers plus mono mix output; Bluetooth® streaming with the BT model
• 36 mm dual tilt stand attachment with 0° and 5° tilt angle, 55° monitor angle with sturdy stand
• 6 x M10 flying points
• Shock-resistant front grille for optimal protection of the speaker
• 4 aluminium grips with ergonomic, rubber surface
• Extensive, optionally available accessories for installation and transport

General

Bluetooth®

Inputs

Outputs

Signal processing

Bass driver

Tweeter

Mains operation

Housing

Environmental

Dimensions & weight

Other properties
