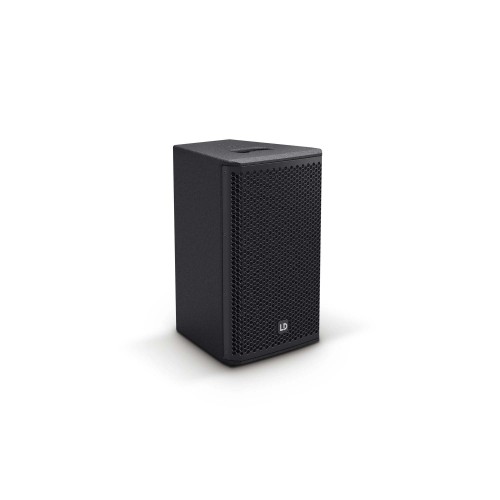

This highly professional 2-way loudspeaker is designed for absolute, long-term reliability. With its multifunctional bass reflex cabinet as a full range speaker, satellite and ground monitor, it is suited to mobile and fixed PA systems. The STINGER® 8 G3 provides 250 watts of continuous power; the maximum sound pressure level is 118 dB. Its specially developed 8" woofer and the BMS HF driver achieve a powerful bass reproduction and fresh natural highs. The wave guide of the tweeter has been developed using the Boundary Element Method (BEM), a numerical simulation of the sound radiation and dispersion. It reduces reflections from the floor and ceiling and prevents sidelobe levels and thus achieves a controlled and homogeneous dispersion. The STINGER® 8 G3 is designed as a real all-round workhorse. The cabinet is made from robust birch plywood and offers exceptional stability and durability thanks to its extremely durable polyurea coating. The features include a steel grille, a Dual-Tilt stand attachment, flight points and ergonomic handles. The STINGER® 8 G3 is an affordable solution for professional PA applications; extensive accessories support use on stage and in fixed installations.
- 2-way passive 8” bass reflex PA speaker
- 250 watts RMS power handling
- 119 dB maximum SPL
- 8“ custom woofer and BMS compression driver
- BEM optimized HF waveguide for uniform coverage
- Birch ply cabinet with ultra rugged polyurea finish and M10 suspension points
- Shock-resistant front grill provides maximum speaker protection
- 36 mm Dual-Tilt pole receptacle for 0° or 5° mounting angles
- Large selection of smart installation and transport accessories
General
| Type (active/passive) | Passive |
|---|---|
| Power handling (Peak) | 500 W |
| Power handling (RMS) | 250 W |
| SPL (1 W/1 m) | 95 dB |
| Max. SPL average (sine burst, BW, fullspace/1 m, THD≤10 %) | 119 dB |
| Frequency response | 70 |
| Impedance | 8 Ω |
| Speaker system | 2-way system |
| Dispersion | Hor.: 90° / Vert.: 50° |
| Number of inputs | 1 |
| Input connector types | Standard speaker connector 4-pole male & speakON® |
| Number of outputs | 1 |
| Output connector types | Standard speaker connector 4-pole male & speakON® |
| Colour | Black |
Bass driver
| Size | 8 " |
|---|---|
| Outer diameter | 2032 mm |
| Manufacturer | Custom Made |
| Magnet | Ferrite |
| Voice coil | 2 " |
Tweeter
| Driver size | 1 " |
|---|---|
| Manufacturer | BMS |
| Magnet | Ferrite |
| Voice coil | 1 " |
Housing
| Design | Bass reflex |
|---|---|
| Number of handles | 1 |
| Mounting type | M10 for SuperClamp |
| Flange | 36 mm (0°/5°) |
| Cabinet material | Birch plywood |
| Material thickness | 12 mm |
| Front grille material | Aluminium |
Dimensions & weight
| Width | 270 mm |
|---|---|
| Height | 457 mm |
| Depth | 290 mm |
| Weight | 9.9 kg |
Other properties
| Included accessories | Mains cable |
|---|
