This highly professional 2-way active system is designed for absolute, long-term reliability. With its multi-functional bass reflex housing and finely tuned, user-friendly presets, the speakers are suitable as full-range, box, satellite and floor monitors. The STINGER® 10 A G3 is powered by a highly efficient Class-D amplifier with a powerful 300-watt continuous output. The specially developed 10" woofer and a BMS tweeter driver achieve a powerful bass response and fresh, natural trebles. The wave guide of the tweeter has been developed using the Boundary Element Method (BEM), a numerical simulation of the sound radiation and dispersion. It reduces reflection from floors and ceilings and prevents sidelobe levels, thus achieving controlled and homogeneous dispersion. LD Systems’ proprietary DynX® DSP technology means that the STINGER® 10 A G3 delivers perfect performance with maximum clarity and power under all conditions. The signal processing of the crossover function and the multi-band limiter achieve an optimal runtime and high freedom from distortion. Designed as an all-around workhorse, the housing of the speaker is made of robust birch plywood. An extremely resilient coating of polyurea offers exceptional robustness and durability. The features include a steel front grille, a dual-tilt stand attachment, flight points and ergonomic handles. The STINGER® 10 A G3 is a good value and attractive solution for professional sound systems, with extensive accessories that support usage on the stage and in fixed installations.
- Active 10" 2-way bass-reflex PA speaker
- 127 dB max. SPL and 300-watt RMS performance with a highly-efficient digital amplifier
- Perfect all-rounder for full-range, satellite and monitor applications
- Practical presets for fast and user-specific frequency tuning
- Homogeneous dispersion pattern thanks to a BEM-optimised tweeter wave guide

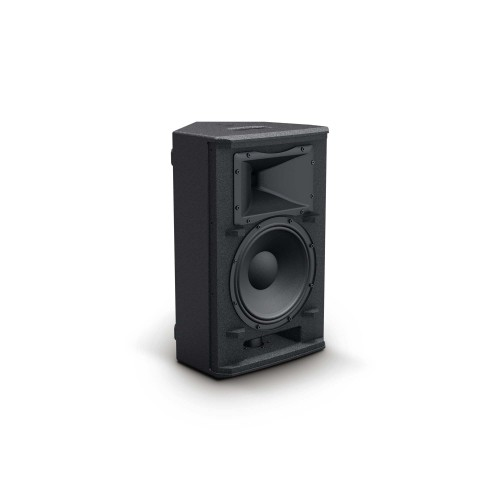

- 10" custom woofer and BMS tweeter driver
- Distortion-free sound at even maximum volumes, thanks to DynX® DSP technology
- 2 line/mic input channels with individual gain controllers plus mono mix output
- 12 mm birch plywood housing with ultra-robust polyurea coating and M10 rigging points
- Shock-resistant front grille for optimal protection of the speaker.
- 36 mm dual tilt stand attachment with 0° and 5° tilt angle
- Extensive and smart accessories for installation and transport
General
| Type (active/passive) | Active |
|---|---|
| Peak output power | 600 W |
| RMS output power | 300 W |
| Amp class | Class D |
| SysLink® | 0 |
| Max. SPL peak | 127 dB |
| Frequency response | 65 Hz |
| Speaker system | 2-way system |
| Dispersion | Hor.: 90° / Vert.: 50° |
| Monitor angle | 54 ° |
| Number of inputs | 2 |
| Input connector types | XLR combo socket |
| Number of outputs | 1 |
| Output connector types | XLR 3-pole male |
| Protection features | Multiband Limiter, Overheating, Overload, Overvoltage |
| Colour | Black |
Inputs
| Number of line inputs | 2 |
|---|---|
| Line-In connector type | XLR combo socket |
Line input performance
| Nom. Sensitivity (< 1% THD, 1 kHz, max. Gain) | -9 dBu |
|---|
Outputs
| Number of line outputs | 1 |
|---|---|
| Line outputs connector type | XLR 3-pole male |
Signal processing
| Mixer | 0 |
|---|
Bass driver
| Size | 10 " |
|---|---|
| Outer diameter | 254 mm |
| Manufacturer | Custom-made |
| Magnet | Ferrite |
| Voice coil | 2 " |
Tweeter
| Driver size | 1 " |
|---|---|
| Manufacturer | BMS |
| Magnet | Ferrite |
| Voice coil | 1 " |
Mains operation
| Operation voltage | 100 V AC - 240 V AC / 50 - 60 Hz |
|---|---|
| Power supply type | Switched-mode power supply (SMPS) |
| Mains connector | Standard speaker connector 4-pole male & speakON® |
Housing
| Design | Bass reflex |
|---|---|
| Number of handles | 1 |
| Mounting type | M10 for SuperClamp |
| Flange | 36 mm (0°/5°) |
| Cabinet material | Birch plywood |
| Material thickness | 12 mm |
| Front grille material | Aluminium |
Environmental
| Ambient temperature | 0 °C |
|---|---|
| Maximum air humidity (non-condensing) | 80 % |
Dimensions & weight
| Width | 325 mm |
|---|---|
| Height | 526 mm |
| Depth | 318 mm |
| Weight | 12.7 kg |
Other properties
| Included accessories | Mains cable |
|---|
