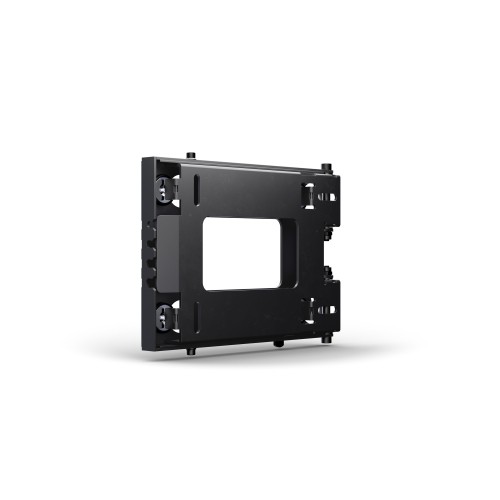

The DQOR® SUB WMB mounting bracket makes it possible to securely and flexibly attach DQOR® SUB 8 subwoofers to walls and ceilings, both in vertical and horizontal positions.
The subwoofer is hooked into the bracket with pre-assembled rubber pads and locked in position by the safety hook. The steel reinforcement of the rubber pads ensures a stable hold, while the rubber coating reduces the transmission of structure-borne sounds.
Thanks to the integrated hinge mechanism, installation is particularly easy and allows convenient access to the internal cable routing. Several cable cut-outs ensure neat and organised cable routing.
To prevent accidental opening, the mounting bracket’s hinge mechanism is locked with two locking screws.
- Custom-fit for DQOR® SUB 8 (A/D) installation subwoofers
- Suitable for vertical and horizontal subwoofer mounting
- Simple to install by hooking subwoofer into the pre-mounted bracket
- Four metal-reinforced rubber pads to reduce structure-borne sound transmission
- Easy-to-access internal cable routing thanks to hinge mechanism
- Safety hook for secure subwoofer attachment
- Durable black powder coating
General
| Material | Steel, EVA foam (ethylene vinyl acetate), TPU (Thermoplastic polyurethane), Aluminium |
|---|---|
| Coating | Powder coated |
| Colour | Black |
| Colour (like RAL) | RAL 9005 |
Dimensions & weight
| Width | 286.5 mm |
|---|---|
| Height | 215.5 mm |
| Depth | 29.1 mm |
| Material thickness | 3 mm |
| Weight | 2.6 kg |
