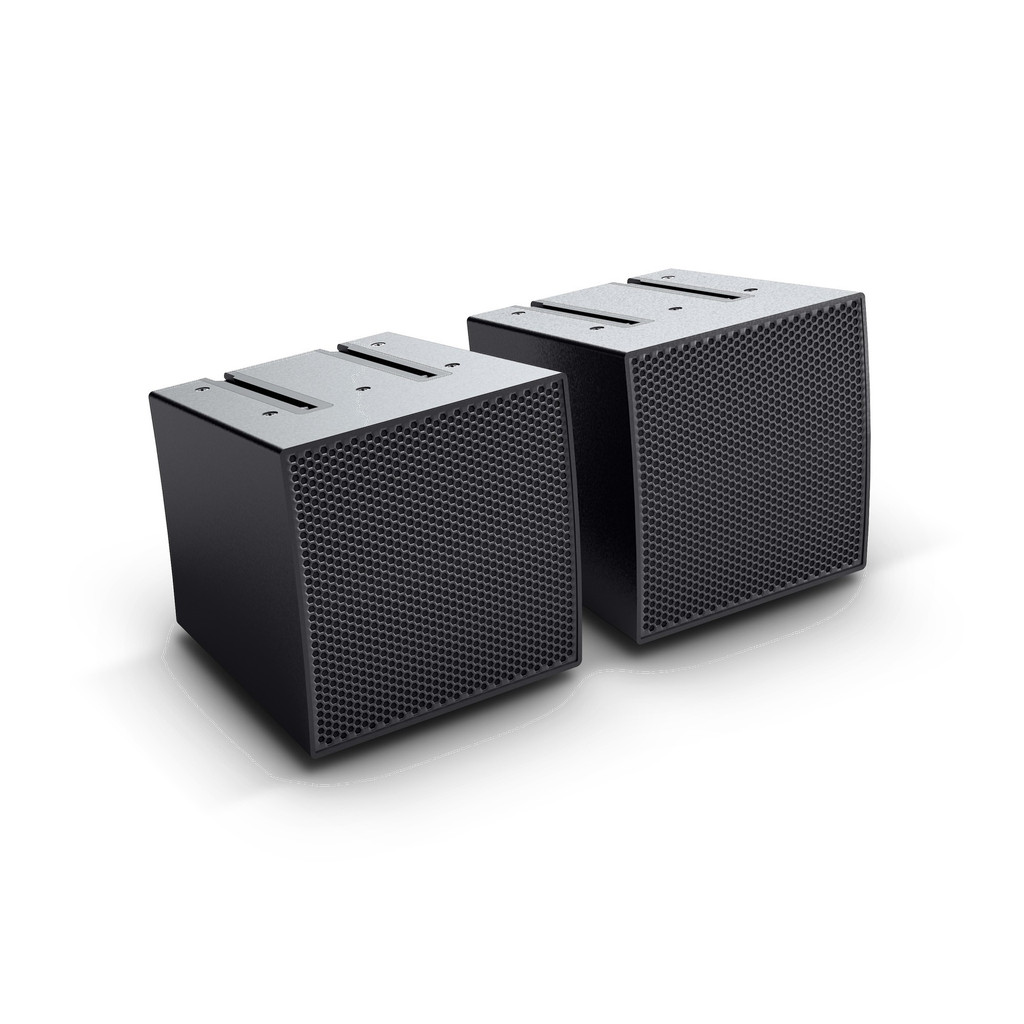

LD Systems CURV 500 S2

This accessory package is suitable for extension or addition to an existing CURV 500®. The satellites, 12 x 12 cm in size, are made of black die-cast aluminium and produce an excellent sound. This is achieved by their single 4-inch midrange driver and three 1-inch high-frequency drivers. Thanks to the WaveAhead® technology developed by LD Systems, the tweeters are arranged vertically ahead of the high-performance full-range speaker, thus the perfect sound mix and dispersion is achieved. The 110 degrees horizontal dispersion angle is very wide and is limited vertically to 10 degrees per satellite - which reduces reflections on ceilings and floors. A passive crossover at 2500 Hz ensures an optimum allocation of the frequency spectrum. With the patented SmartLink® plug-in mechanism, the system, comprising up to four array satellites, can be assembled without cables in a matter of seconds. Robust metal grilles with acoustic material for rear tensioning protect the drivers of the rugged satellites featuring 16 ohm impedance and a weight of 1.73 kg. The matt-black powder-coated surface is resilient and gives the satellite an elegant look. For fixed installations, there is an M3 screw connection for the safety rope.

• Bundle consisting of two array satellites
• Compact cabinet made of black die-cast aluminium, rugged and resilient
• A single 4-inch midrange driver and three 1-inch high-frequency drivers with patented WaveAhead® technology deliver excellent sound
• SmartLink® system allows for cable-free assembly of up to four array satellites
• 16 ohm impedance per satellite

General

Mid range

Tweeter

Housing

Dimensions & weight
