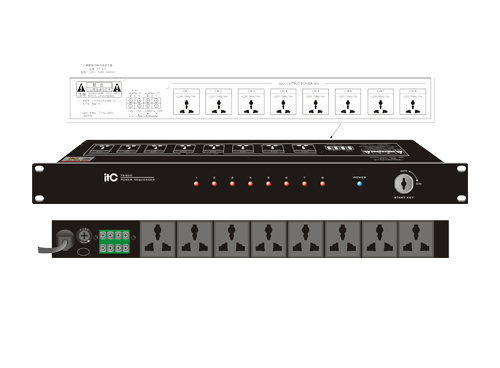

The ITC TS-820 is a 1U rack-mount power supply sequencer that switches eight power channels on and off in sequence, with a delay of one second per channel. It can be operated remotely with a 24 V DC control signal, and channels 1 and 2 can be set as controlled or uncontrolled. The ALARM port on the rear panel allows cascade control.
- Maximum load: 2200 W per channel, 6000 W in total
- Rated output: 220 V AC, 50 Hz, 30 A
- Multi-use power sockets on the outputs
- USB output for an LED light
- Dimensions: 484 x 295 x 44 mm
- Weight: 4.2 kg
