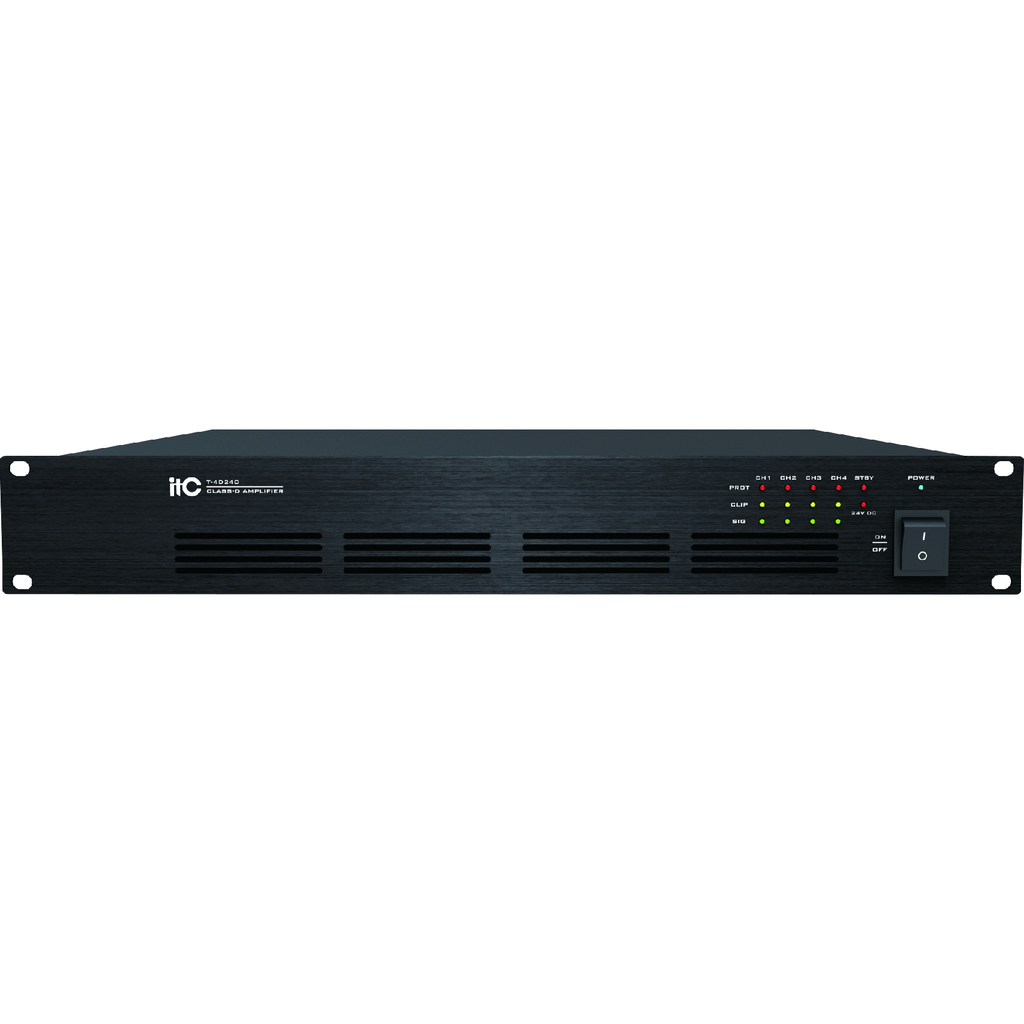

The ITC T-4D240 is a four-channel Class-D power amplifier delivering 4 x 240 W into 100 V loudspeaker lines. A high-efficiency switching power supply raises efficiency to as much as 85%, and the 19-inch rack-mount chassis is 1.5U high. It has four balanced line inputs, each channel with its own volume control and status indicators.
- Per-channel indicators for signal, peak, protection and power
- Amplifier output monitoring, standby control and standby cascade port
- 24 V DC supply terminal with voltage protection (21.6 to 26.5 V DC)
- Protection against high temperature, overload and short circuit
- Frequency response: 80 Hz to 18 kHz (+1 dB, -3 dB)
- Maximum power consumption: 1200 W
- Dimensions: 484 x 445 x 66 mm; weight 9.8 kg
