8k Playback / 8k Output

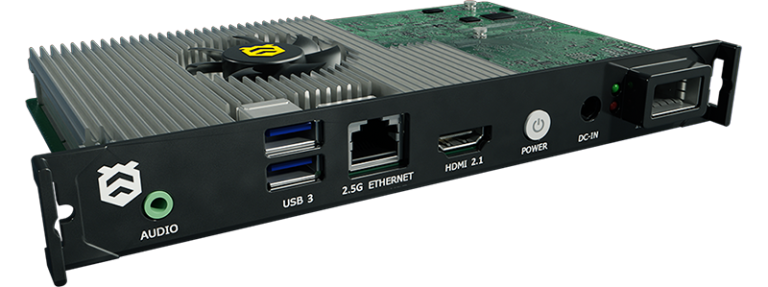

The NEXUS variant is a groundbreaking innovation, proudly standing as the world’s first 8K60 output SDM Media Engine with HDMI Genlock.
Specifications
| Max Media Resolution | 8192 × 4320 @ 60Hz |
| Max Output Resolution | 8192 × 4320 @ 60Hz |
| Max Frame Rate | 240 FPS (4K) |
| Playback Layers | 2 × 4K or 1 × 8K + Media Regions |
| GPU | Intel ARC |
| Memory | 32GB DDR5 |
| Max HEVC Bitrate | 800 Mbps |
| Outputs | HDMI 2.1, NDI, SMPTE 2110 |
| Inputs | NDI, USB, SMPTE 2110 |
| Networking / Ethernet | 1 × 2.5Gb + 1 × 10/25/100Gb (QSFP) |
| Audio Output | HDMI, Mini-Jack, USB, Dante |
| Layer limits per device | x8 |
| Mix limits per device | x4 |
| Warranty | 2 years (standard), 3 years, 5 years |
