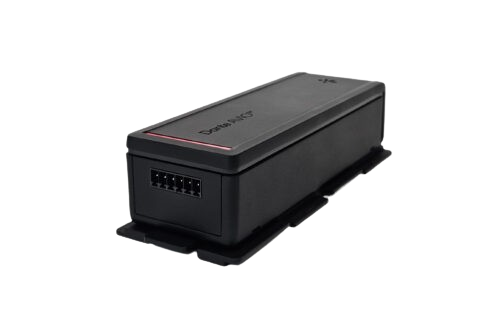

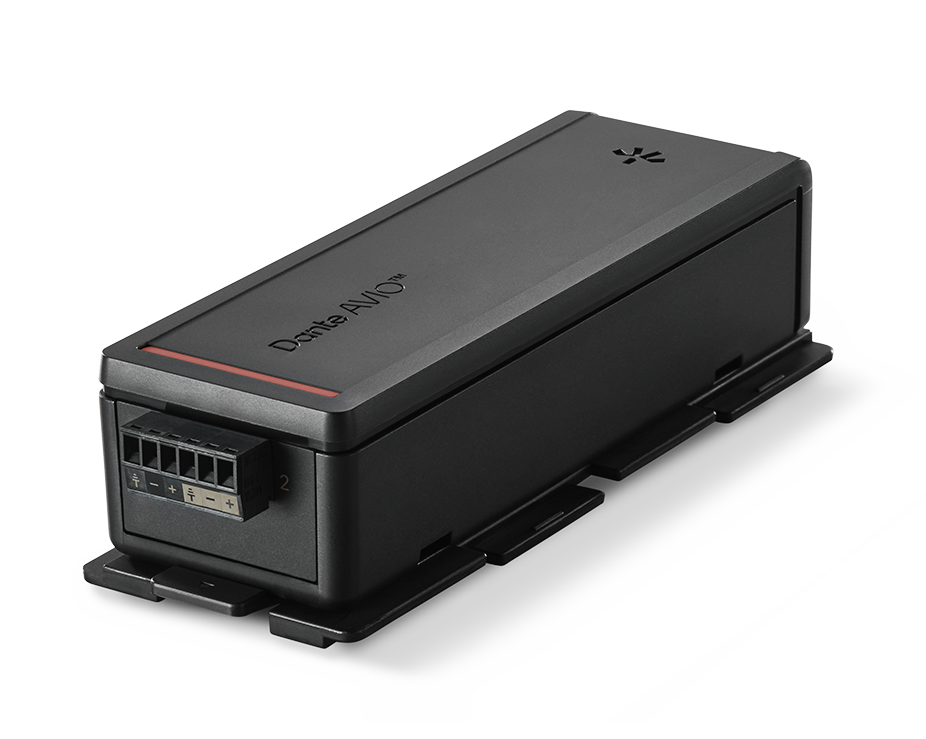

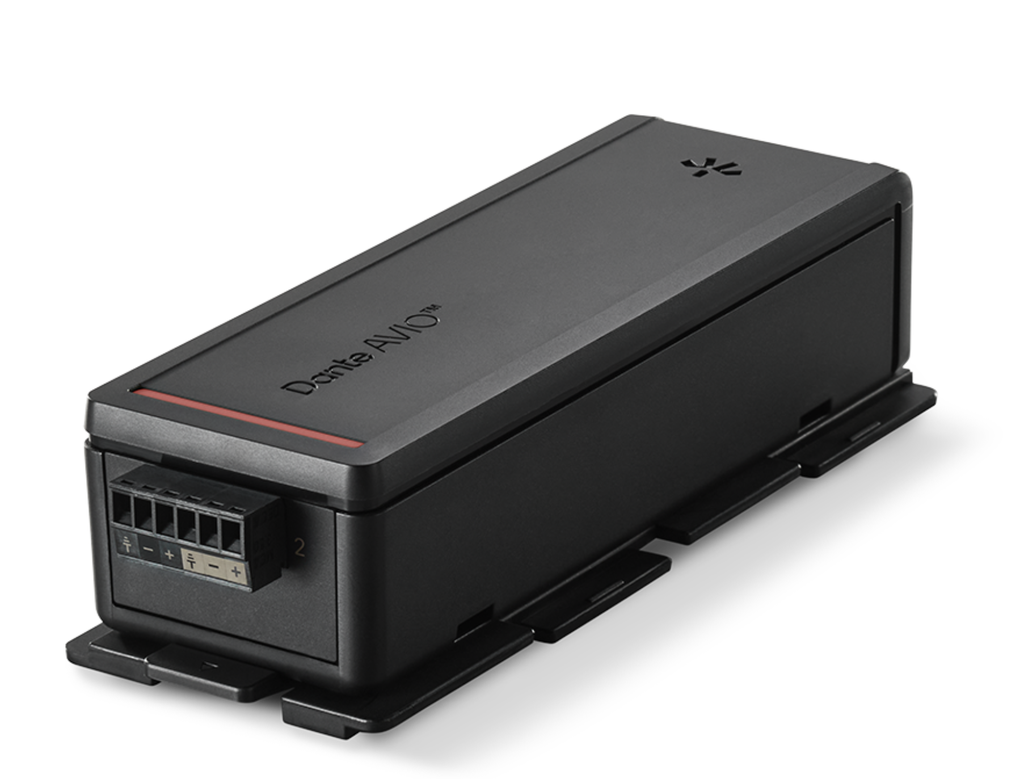

2-Ch Analog Output Adapter
Dante AVIO Install adapters provide a simple, cost-effective way to bring analog audio into any Dante-enabled system
Key features
- Euroblock terminals: Industry-standard screw terminal connectors for fixed, permanent wiring in any install environment.
- Included Mounting Bracket: Snap multiple adapters together for surface, rack, or post installation, with mounting hardware included out of the box.
Specifications
| Part Number | AVIO-A-2OUT-EB |
| Signal Flow | Dante → Analog |
| I/O | 0 in/2 out |
| Daisy Chain | No |
| Mounting options | Mounting Bracket (included) |
| Connector type | 6-pin Euroblock terminal, 3.5mm pitch |
| Power | Class 1 IEEE 802.3af PoE |
| Power Consumption | <2 watts |
| Operating Temp | -10º to +45ºC |
| Storage Temp | -15º to +60ºC |
| Frequency Response | 20Hz to 20kHz (-/+0.2dB) |
| Dynamic Range | 105 dB A-weighted @ 997Hz and+4 dBu |
| THD+N | 0.0019% A-weighted @ 1 kHz and+4 dBu |
| Crosstalk | -118.5 dB @ 10kHz, 0dBFS input |
| Impedance | 300Ω balanced/ 150Ω unbalanced |
| Max signal level (balanced) | +4dBu / 0dBu / 0dBV / -10dBV |
| Sample Rates | 44.1/48/ 88.2/96 kHz |
| Bit Depth | 16, 24, 32-bit PCM |
| Audio Transport Protocols | Dante Audio over IP |
| Dante Device Latency | 1, 2 or 5 ms |
| Network | 100 Mbps Ethernet port |
| Individual Product Net Dimensions / Weight | 150.7 x 53.8 x 38.1 mm / 145 g |
